Before the foam insulation was applied to the Cottage walls, we took photos of virtually every wall of the Cottage so we could reference them if we wanted to add something to a wall. We do have a TurboCad plan, that we built, of the stud work with every vertical stud but photos show the plumbing and electrical work. We took a picture of the Turbocad stud work plan and assign numbers to the views of the walls we wanted. The Cottage is on a 45 degree angle heading Northeast. That makes room wall references a little harder.

You can click on the following images to get full-sized images.

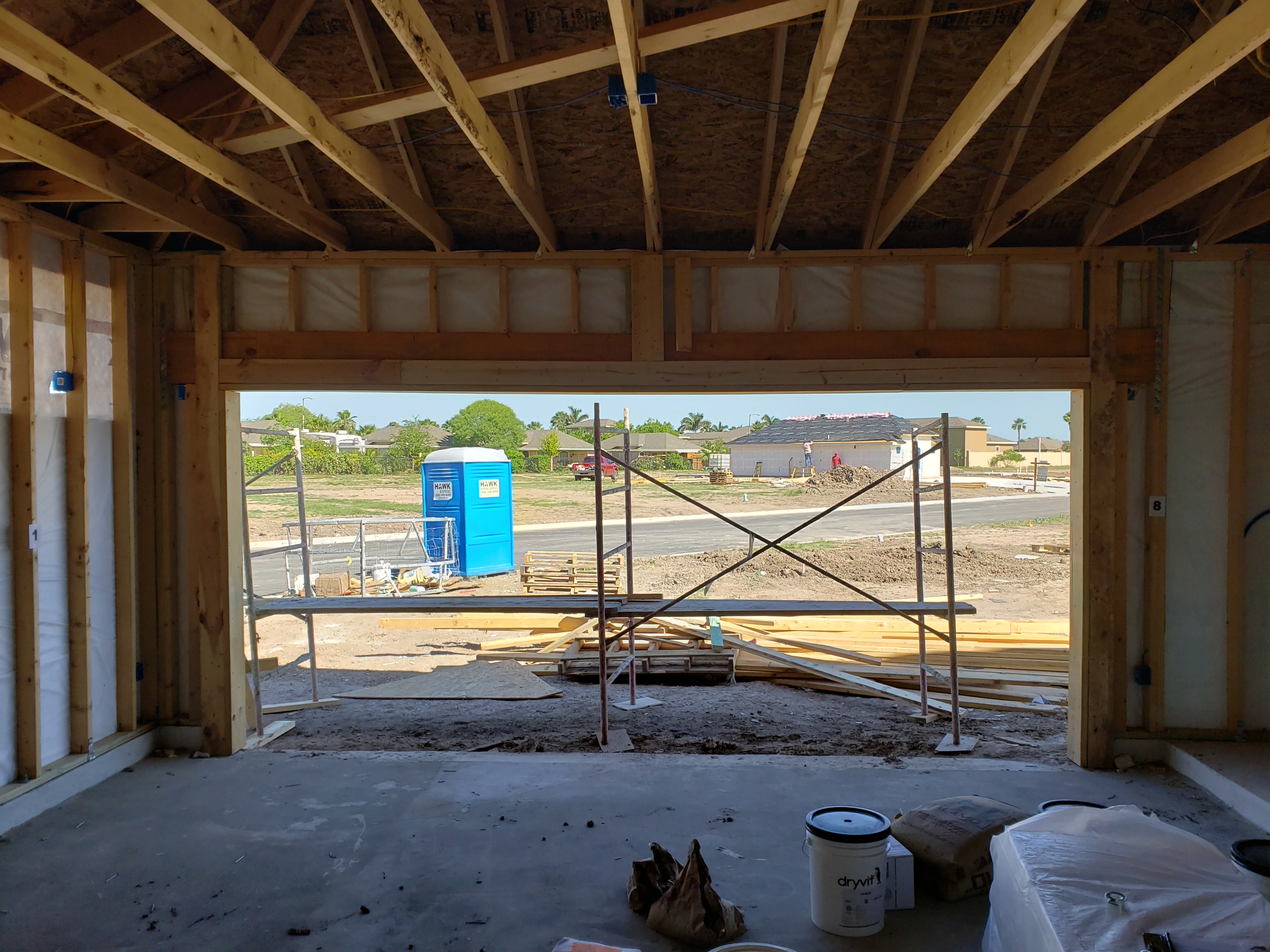

	P00 The garage entrance.

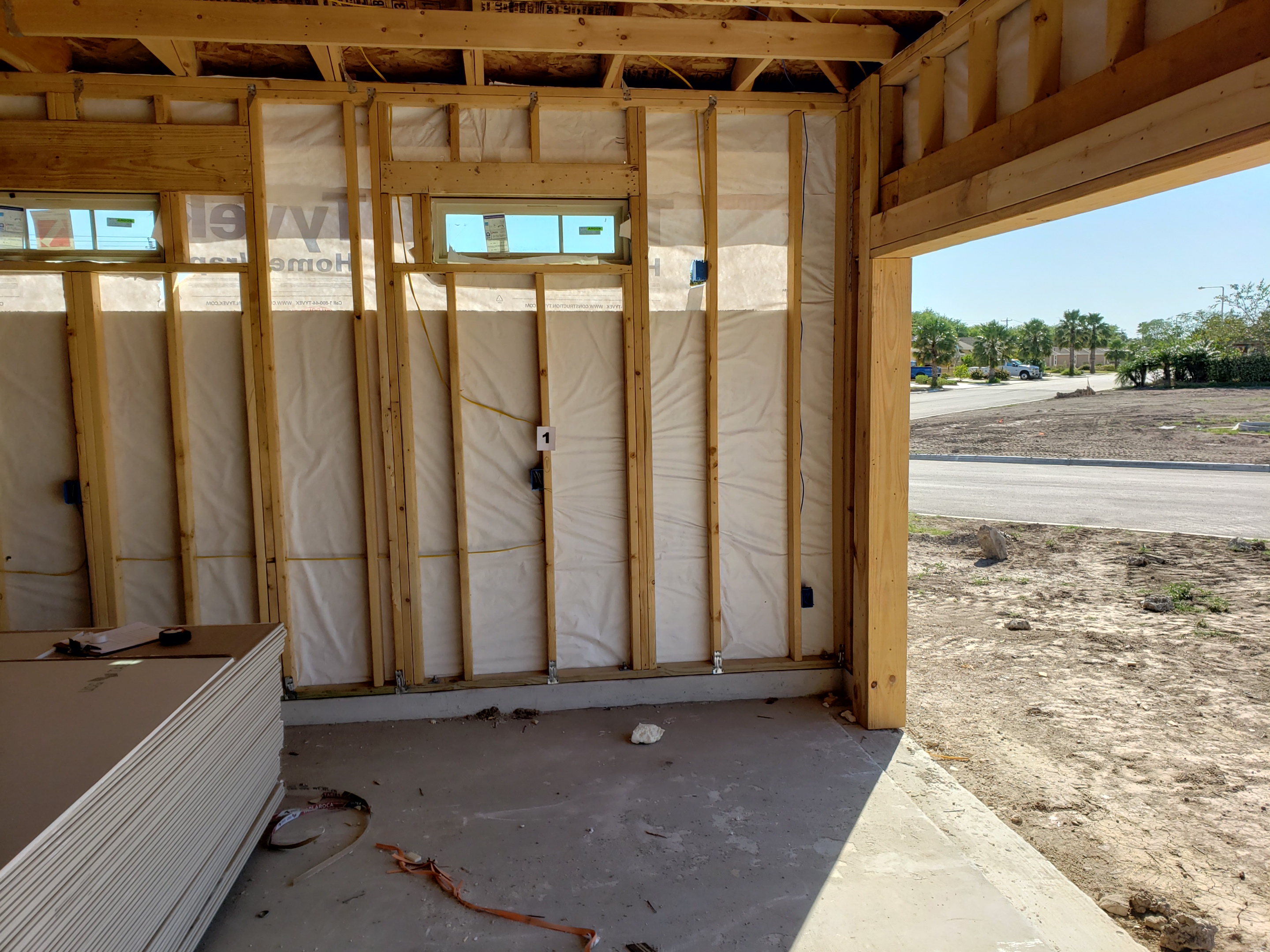

	P01 The garage south-western wall.

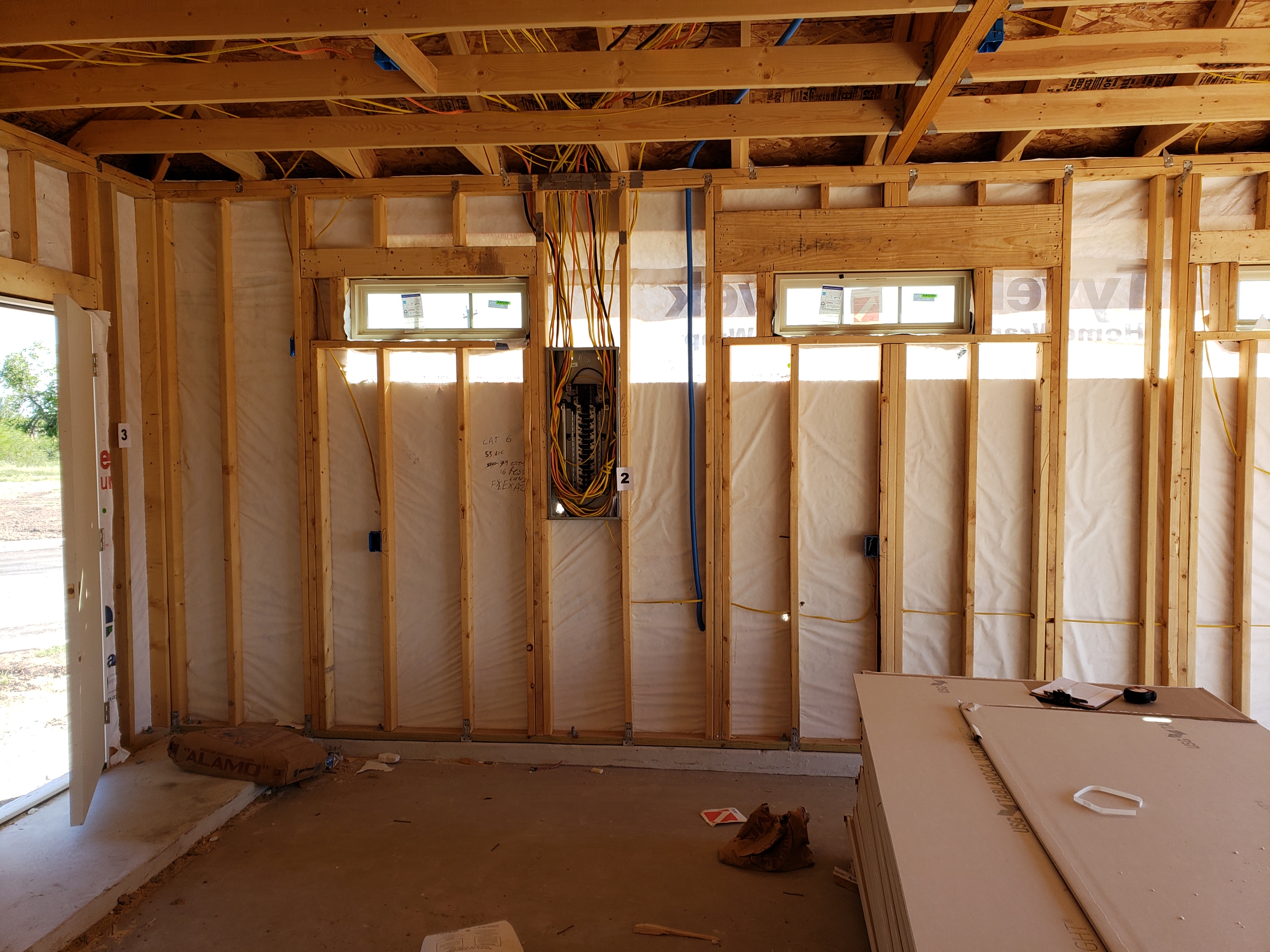

	P02 The garage south-eastern wall. Breaker panel

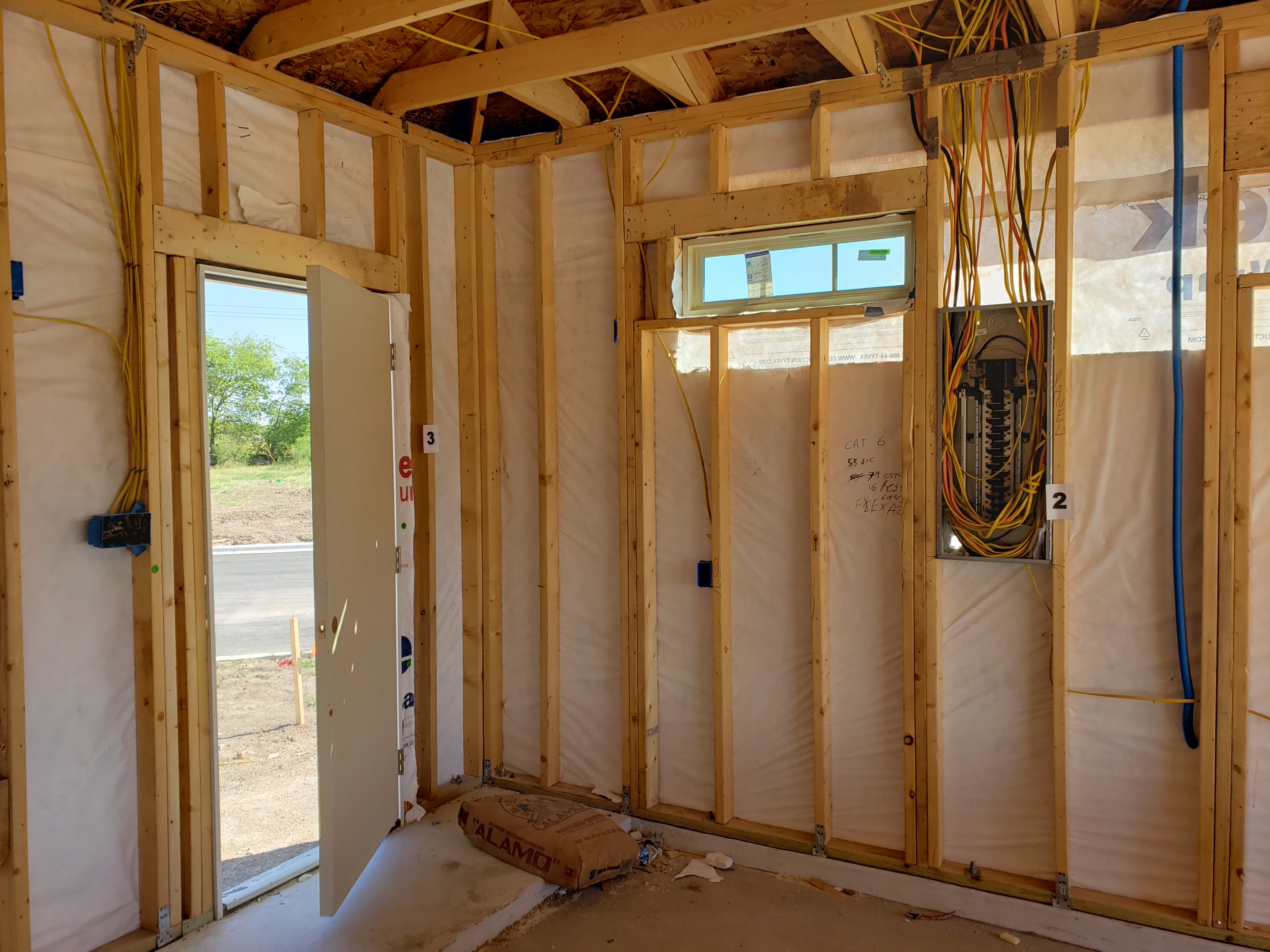

	P03 The garage south-eastern corner.

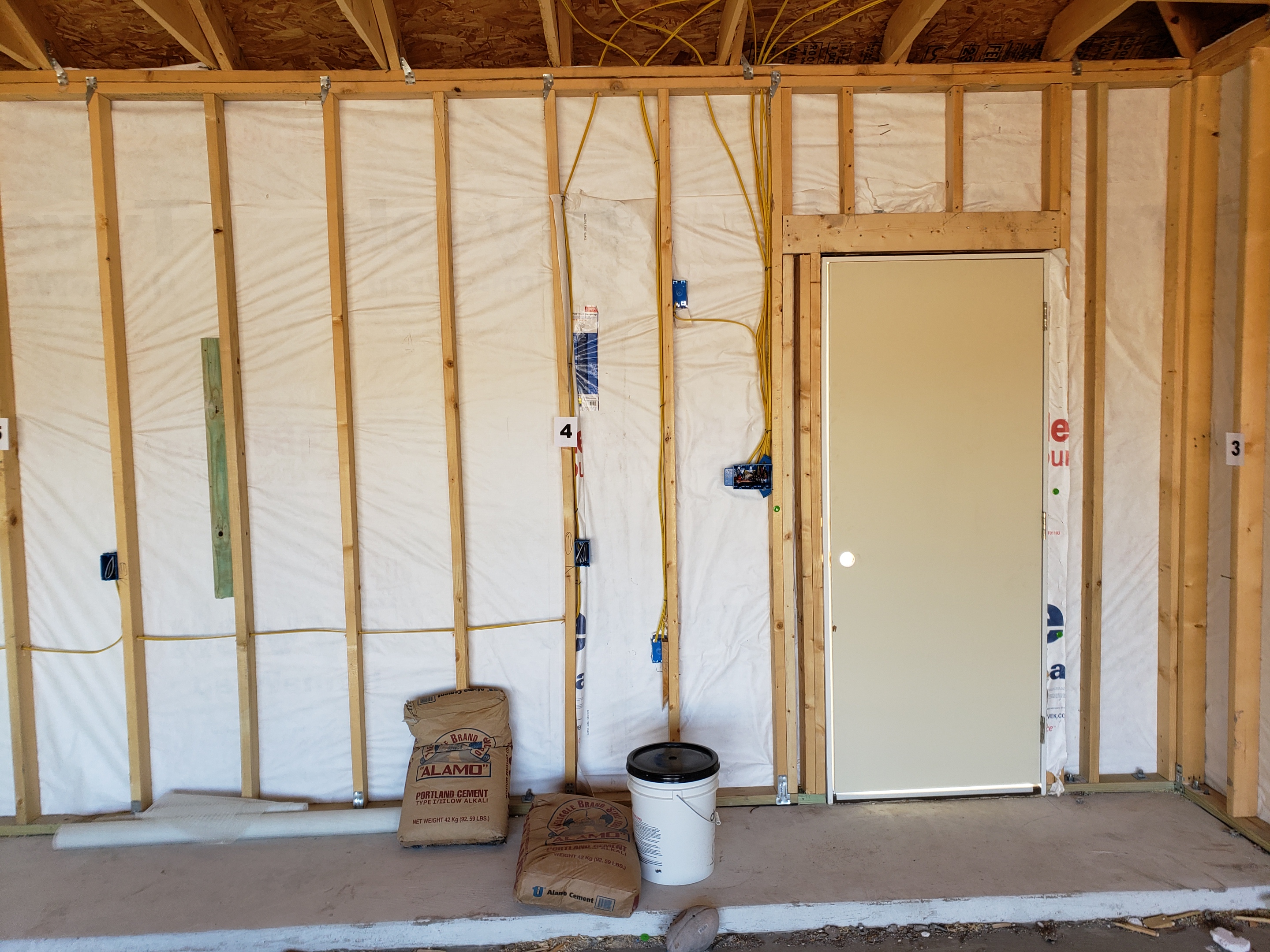

	P04 The garage east-southern wall.
	P05 The garage east-northern wall. Location of the tankless water heater

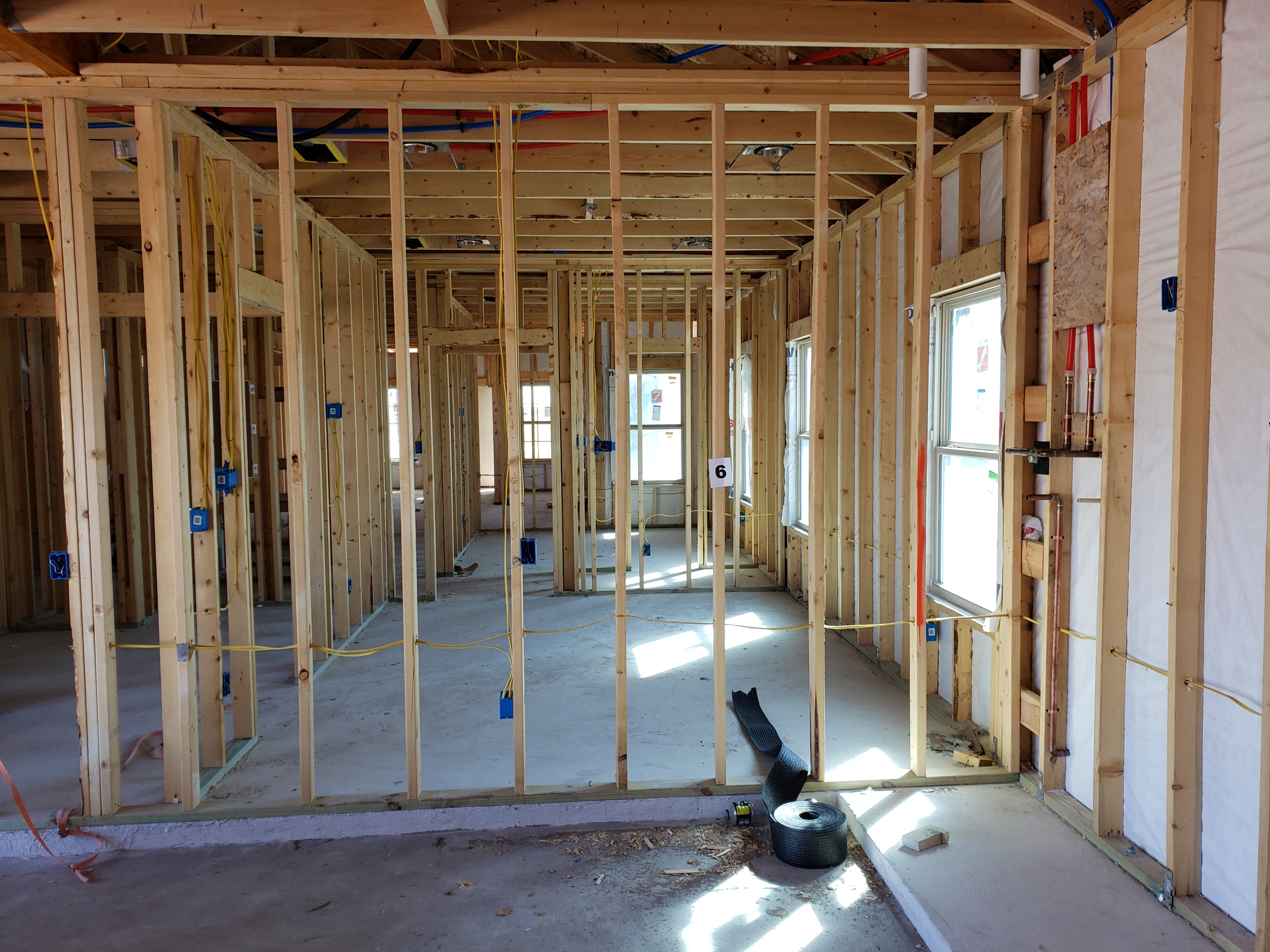

	P06 The garage north-eastern wall. Shared with Master Bedroom

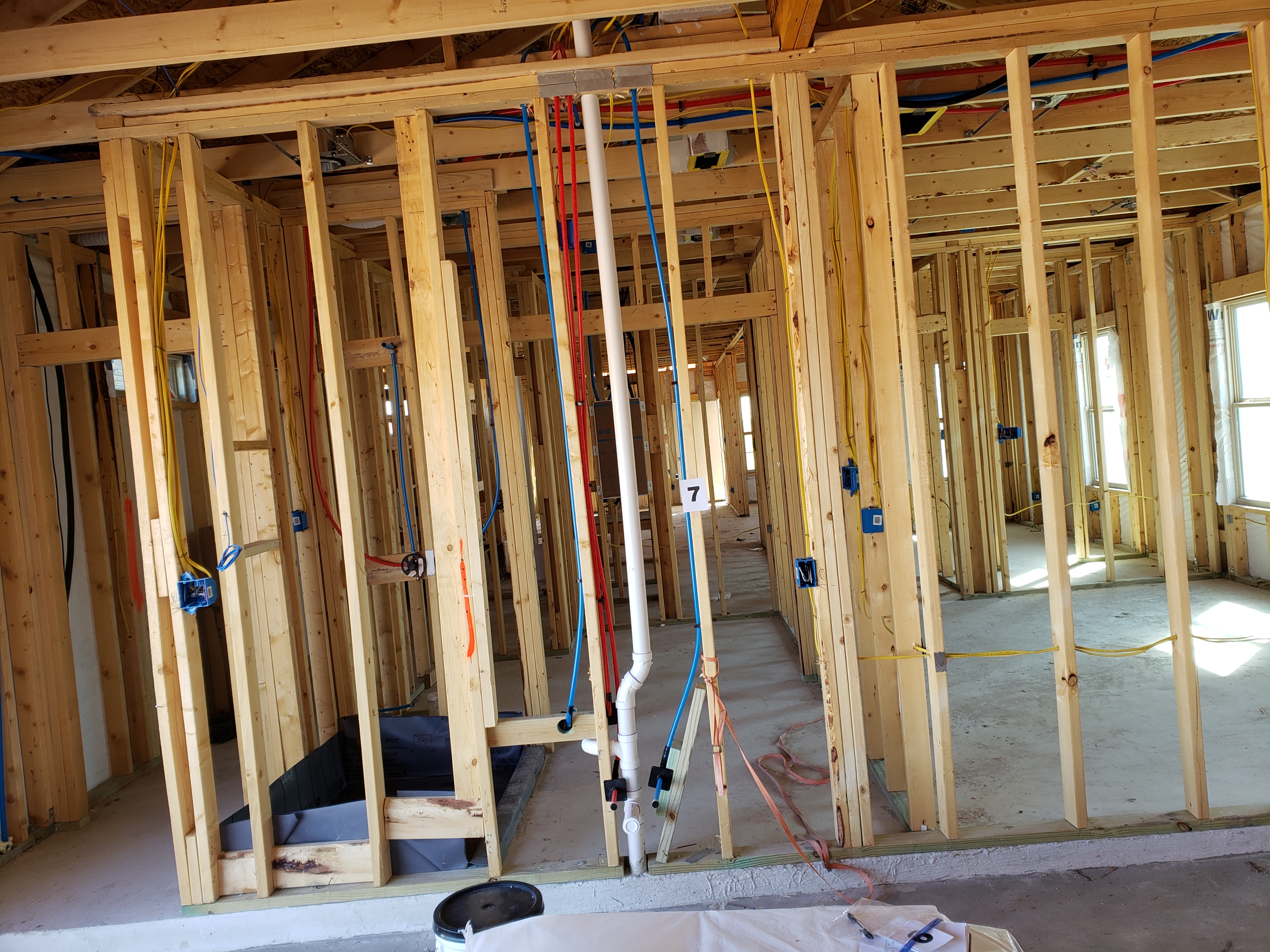

	P07 The garage north-western wall. Shared with Master Bathroom Utility sink connections

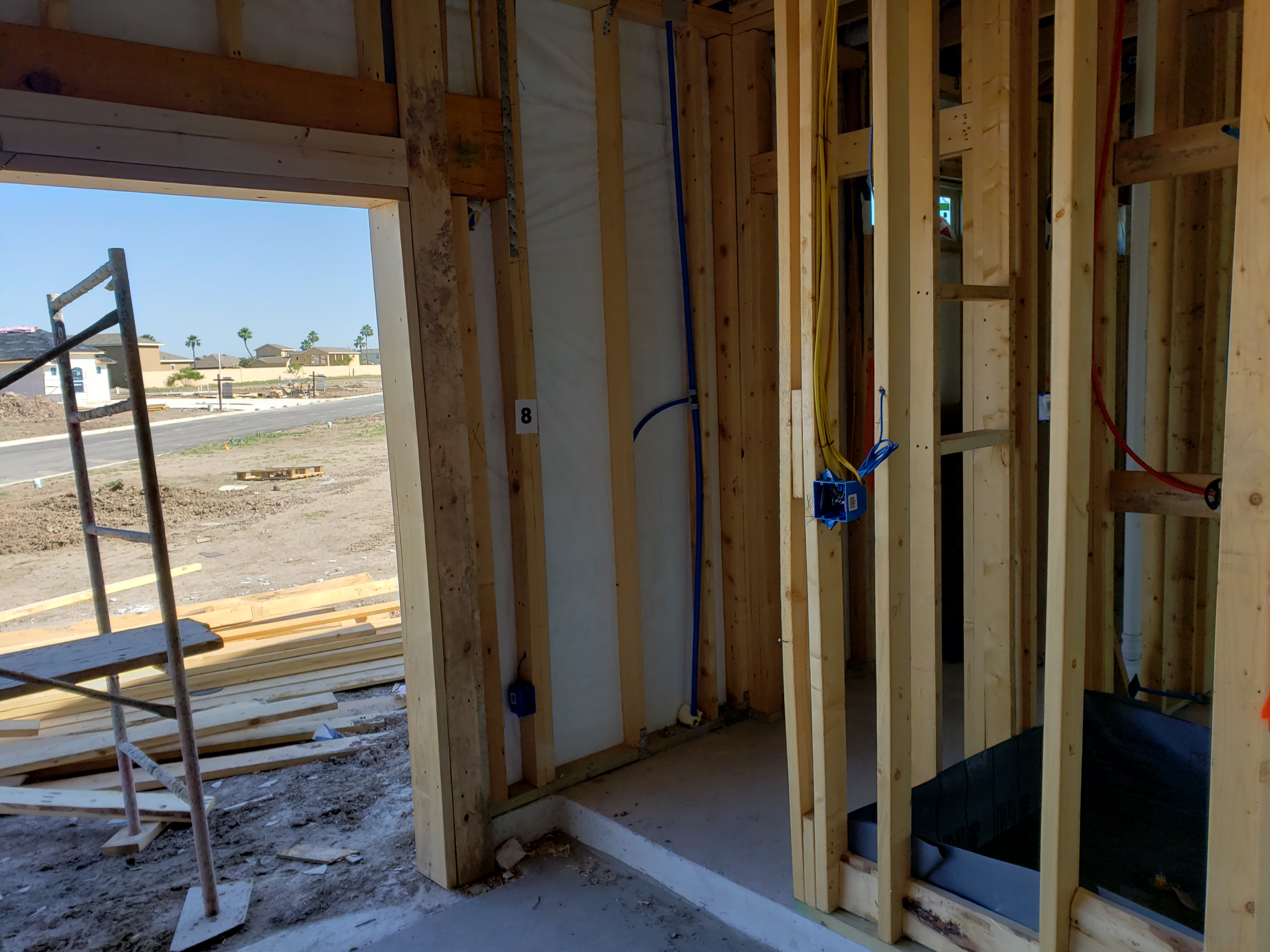

	P08 The entrance into the hallway to the Laundry

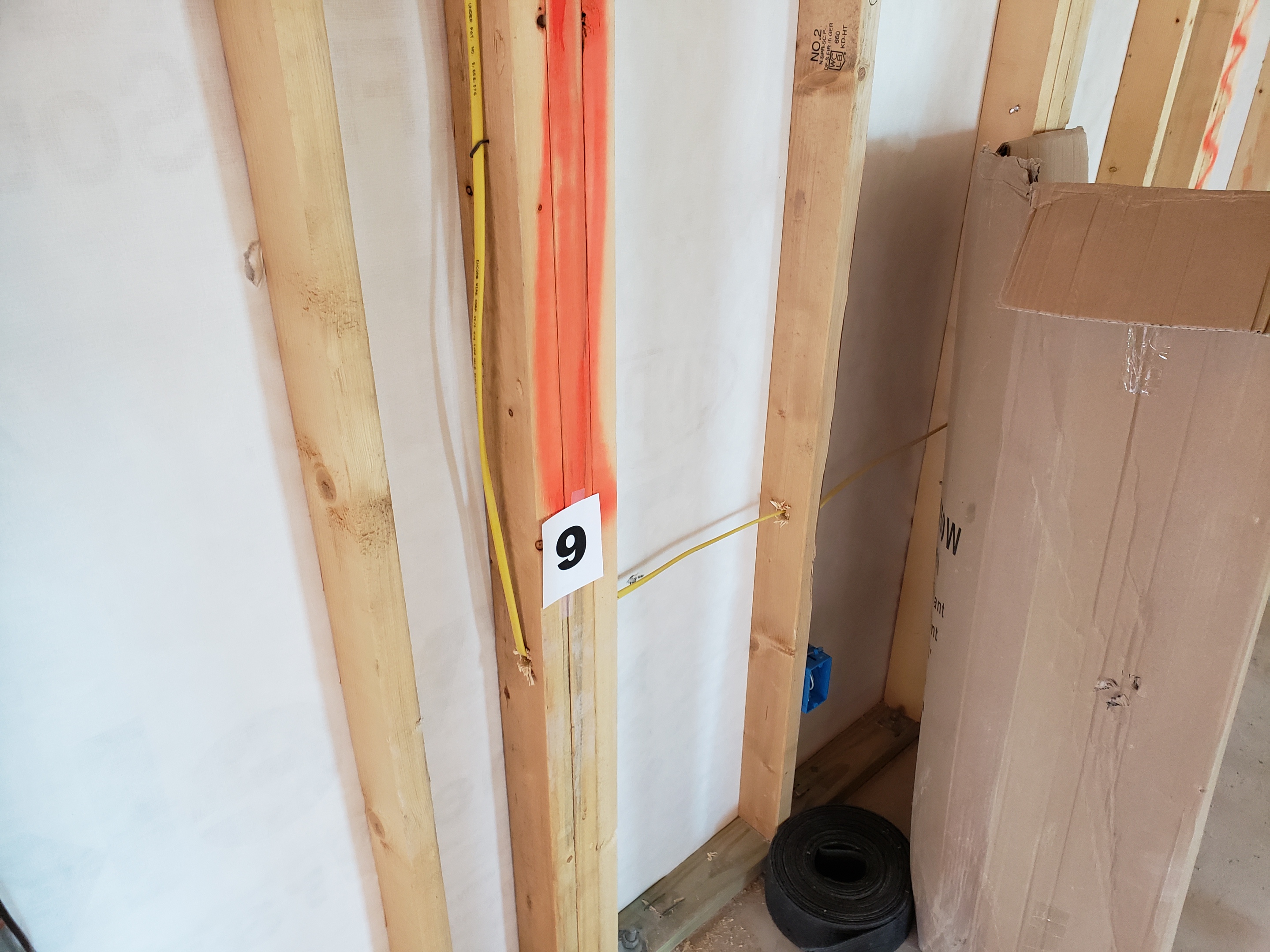

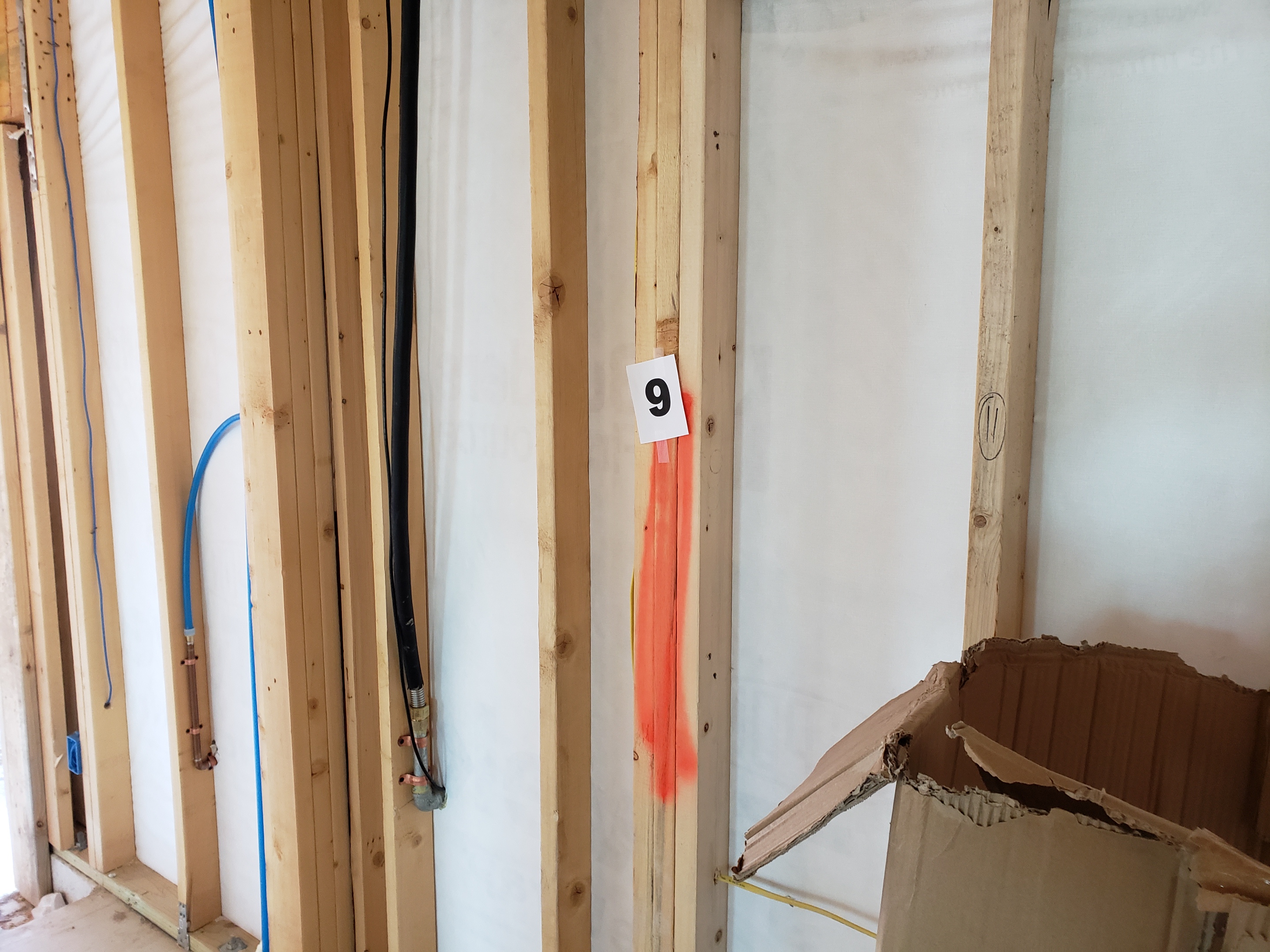

P09 The south-western Laundry Hall
	P09 The south-western Laundry Hall

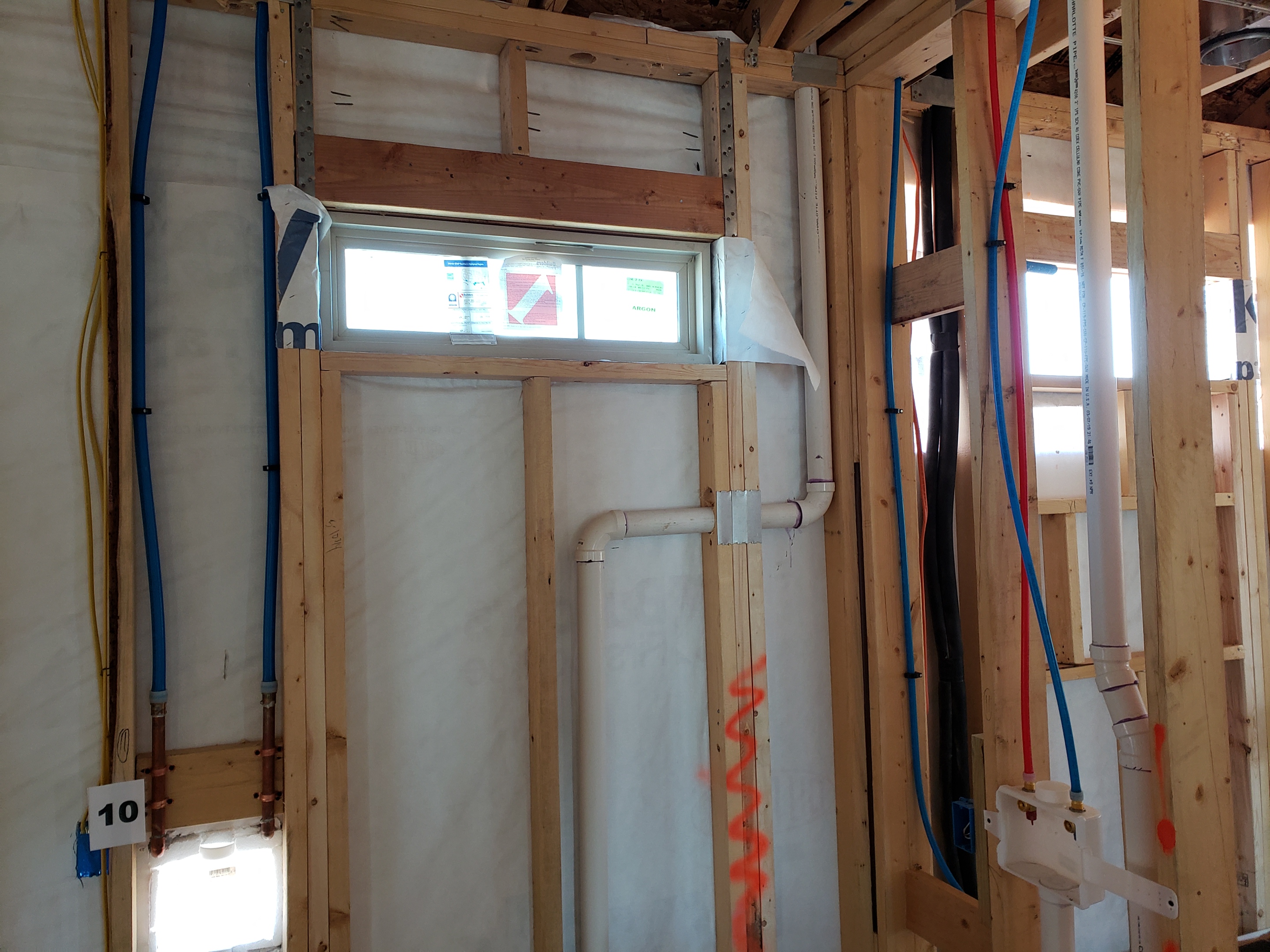

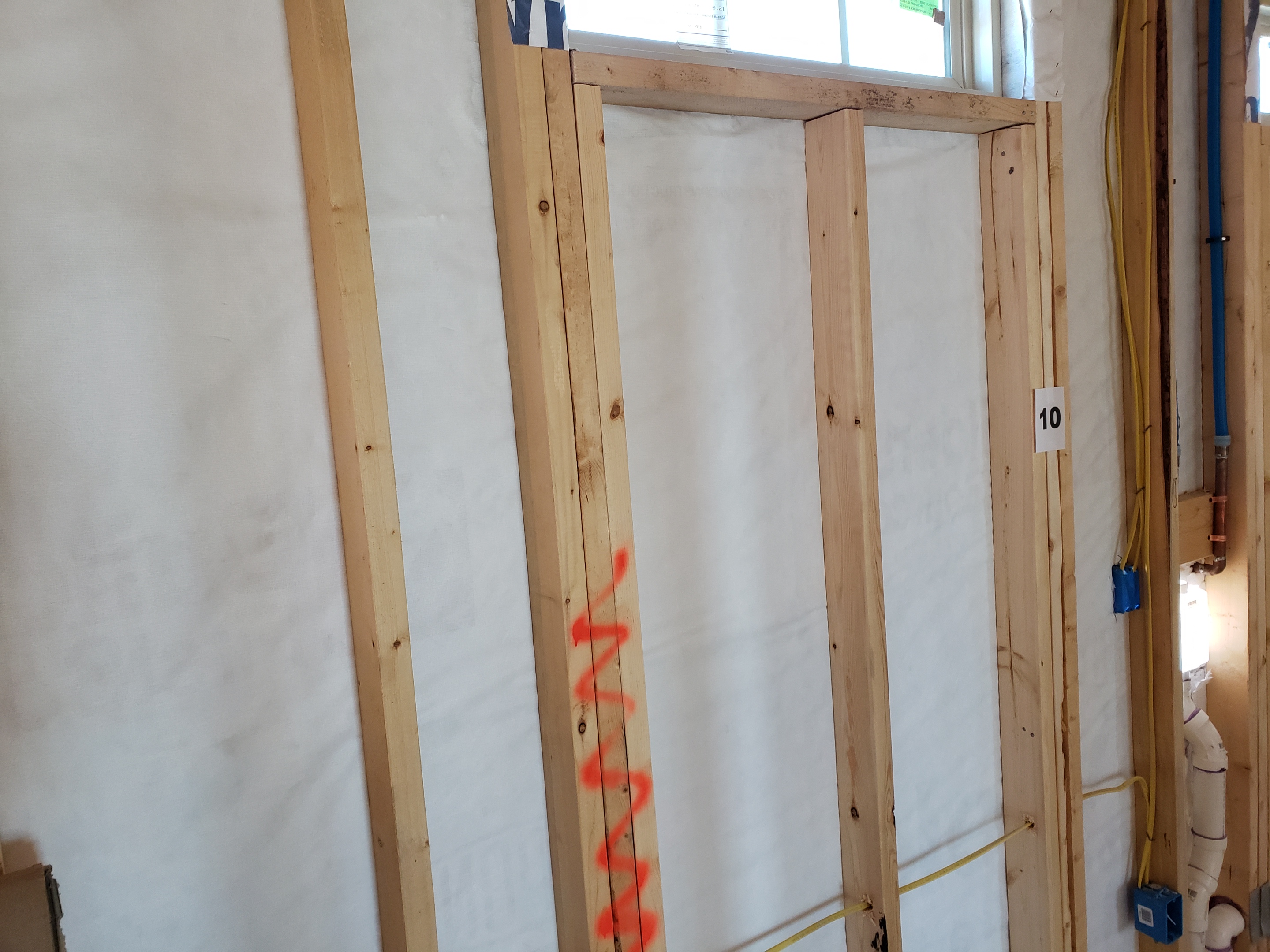

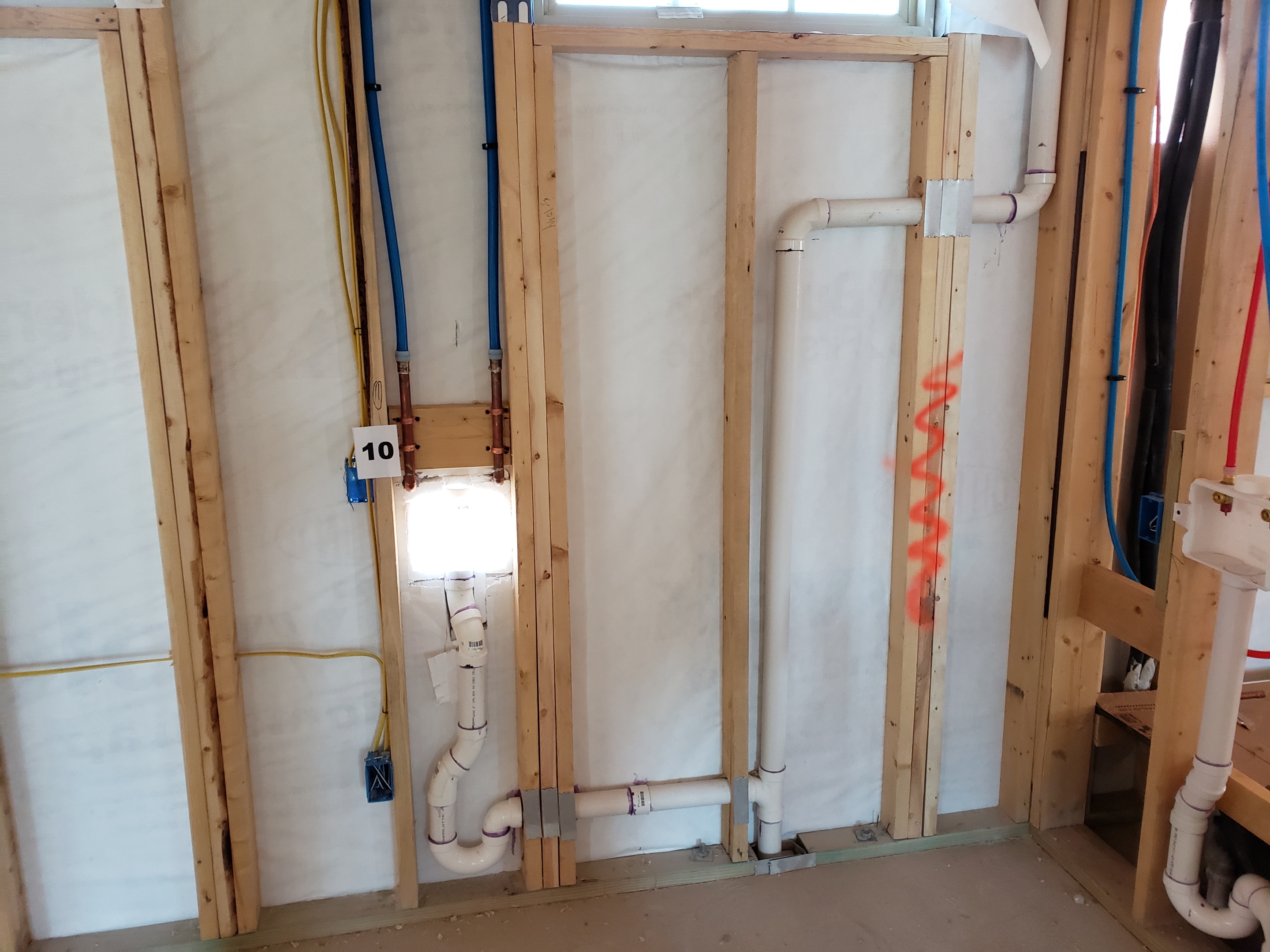

P10 Location of Water Softener Connections

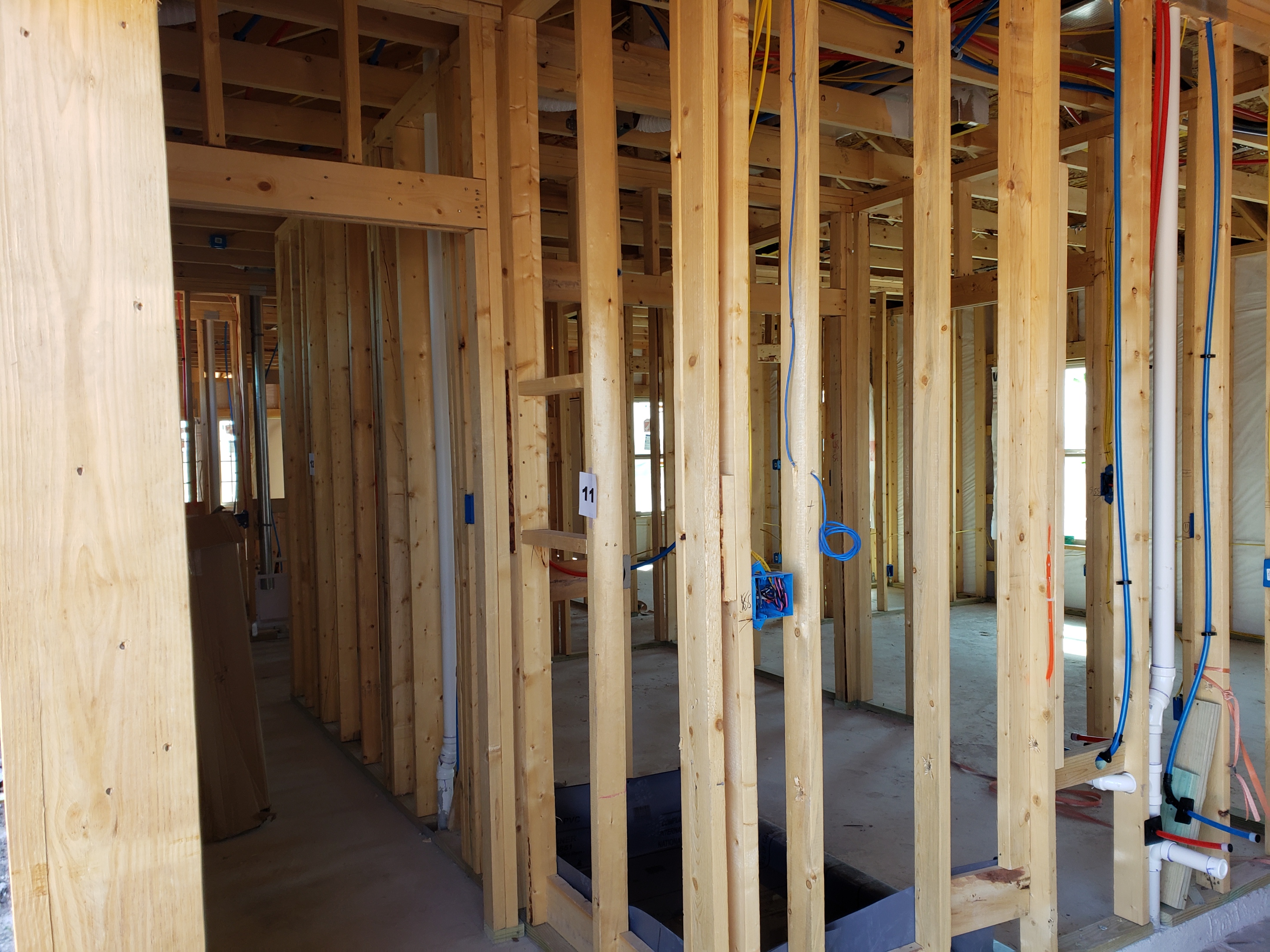

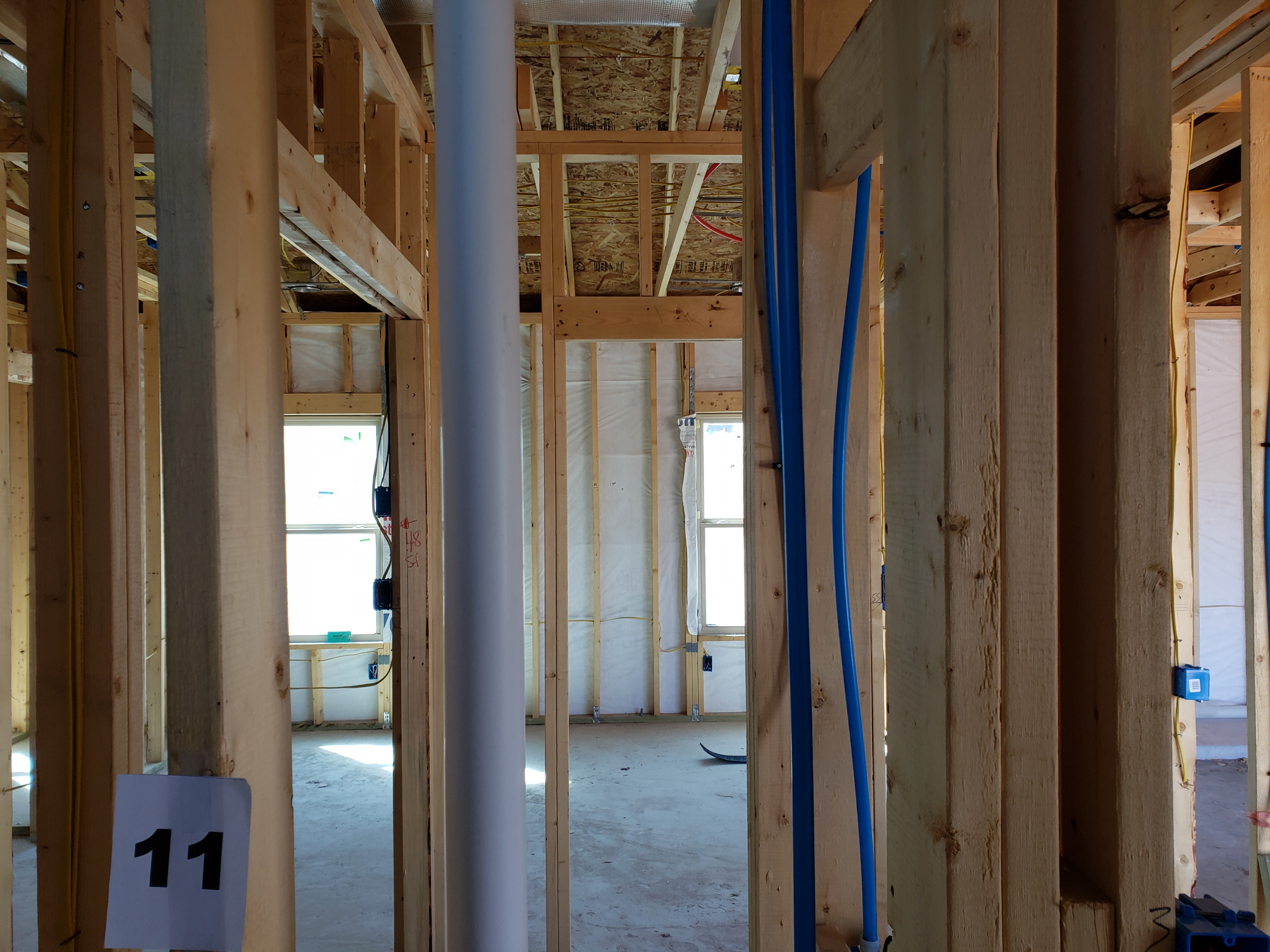

P11 The east-southern end of the Laundry Hall Location of the Master Bathroom toilet

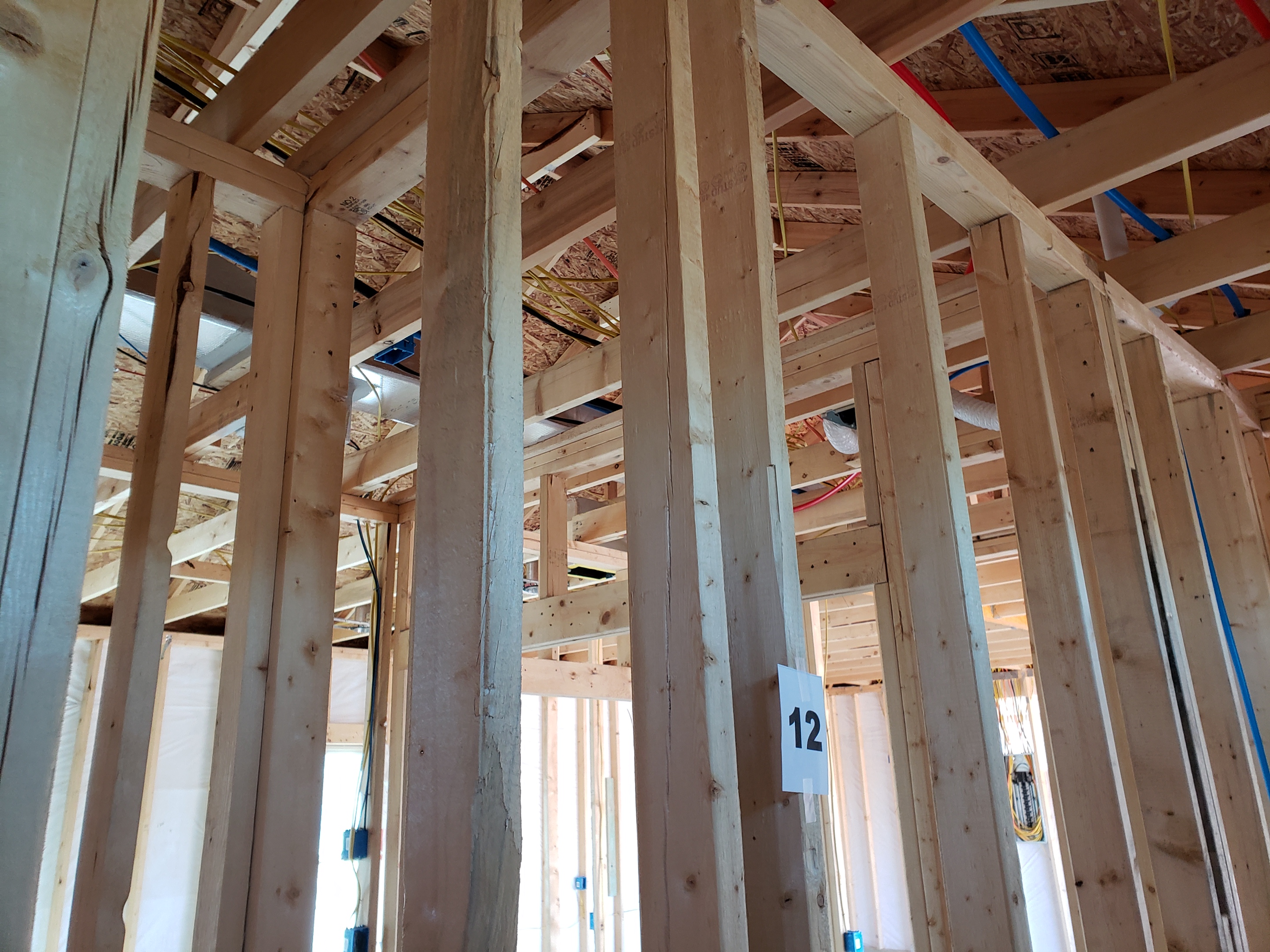

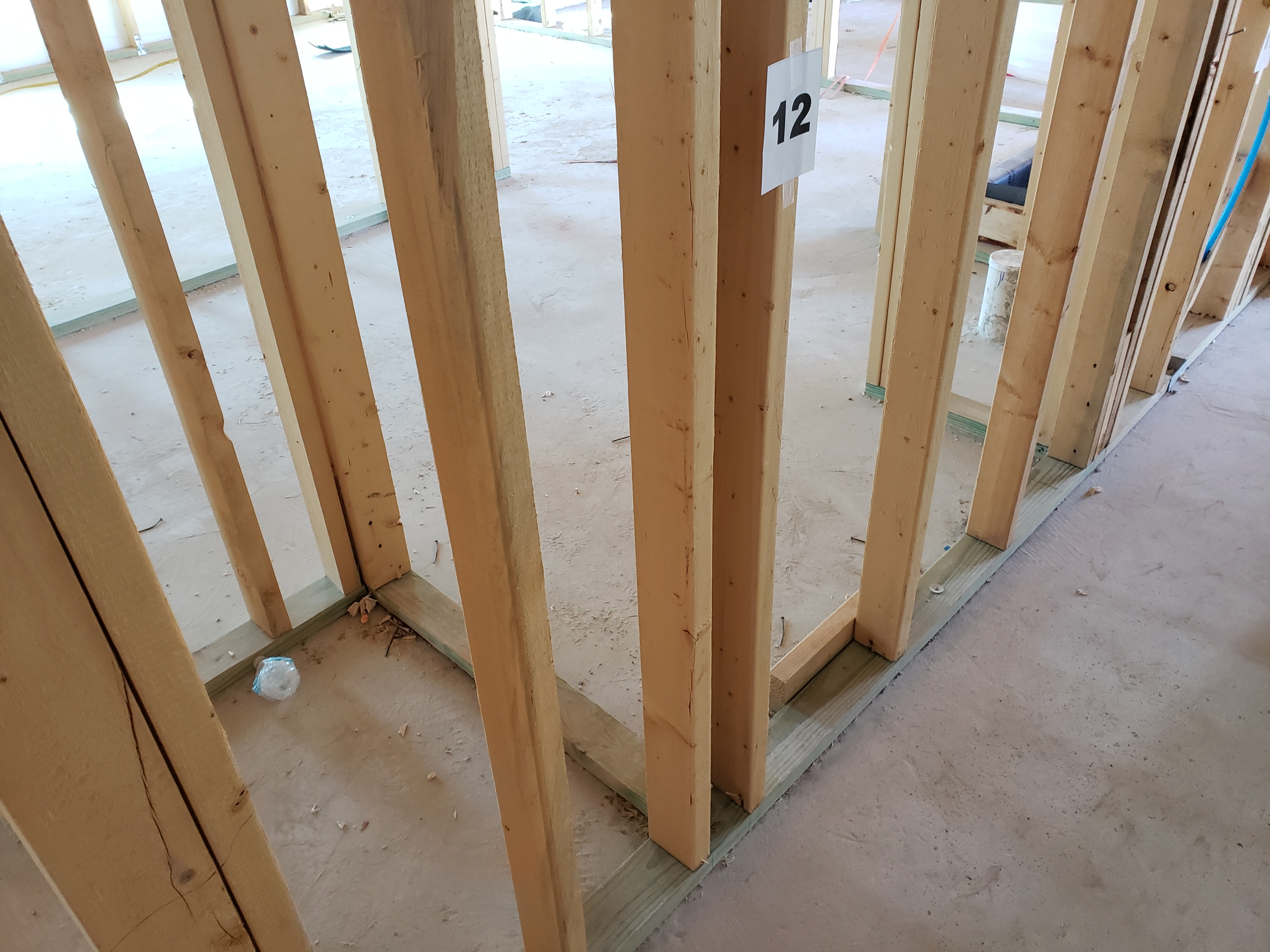

P12 The east-northern end of the Laundry Hall
	P12 The east-northern end of the Laundry Hall

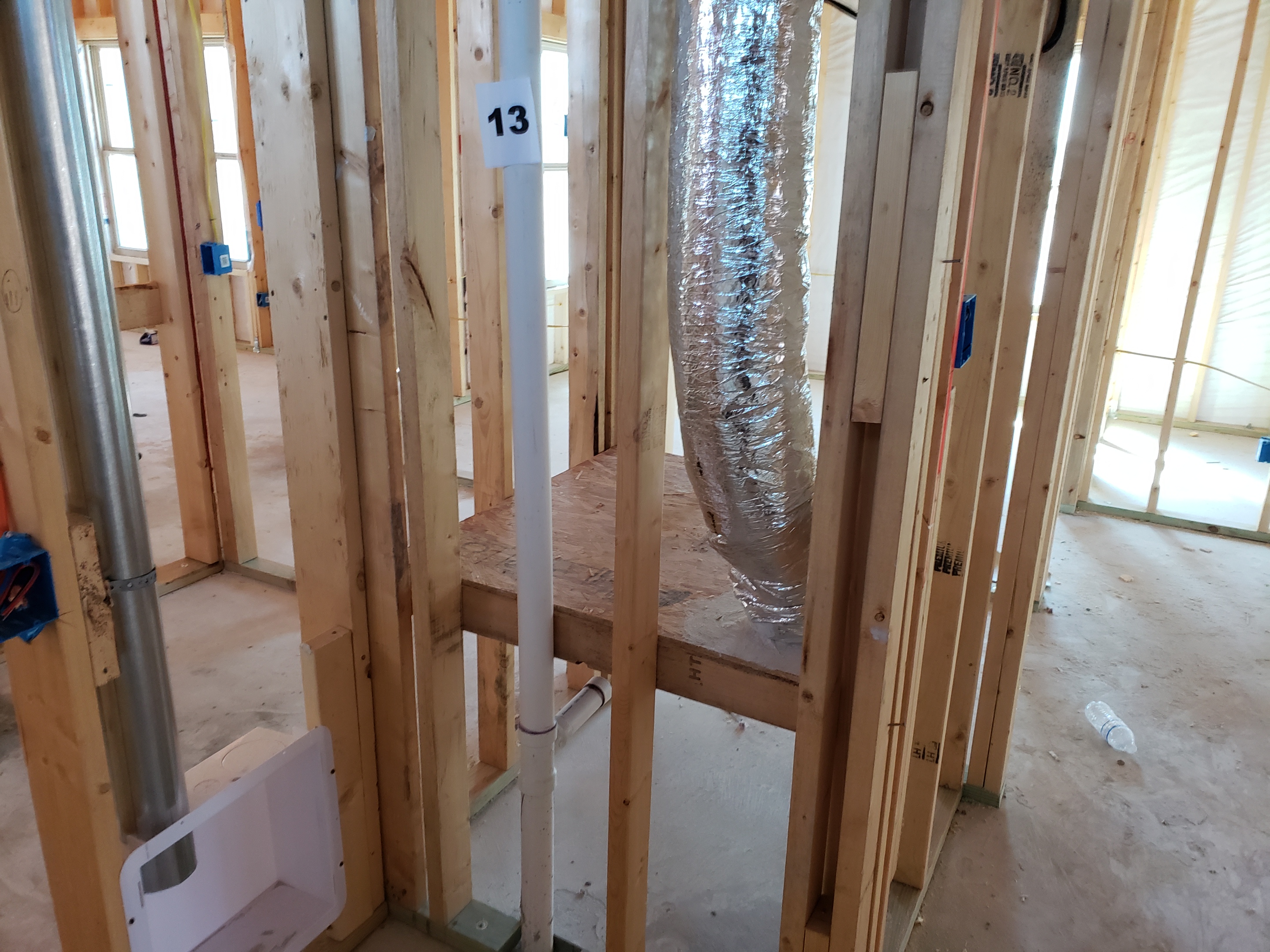

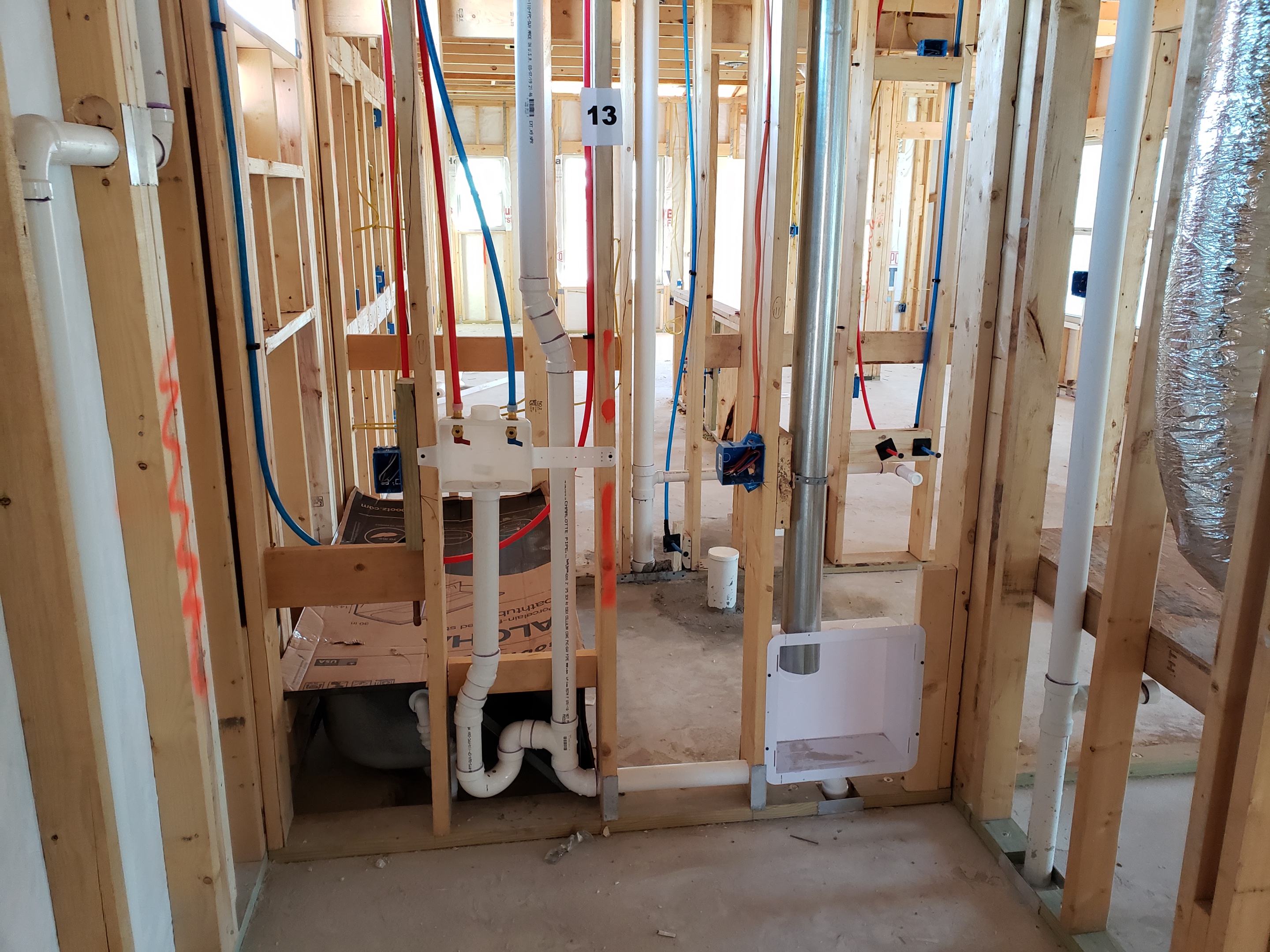

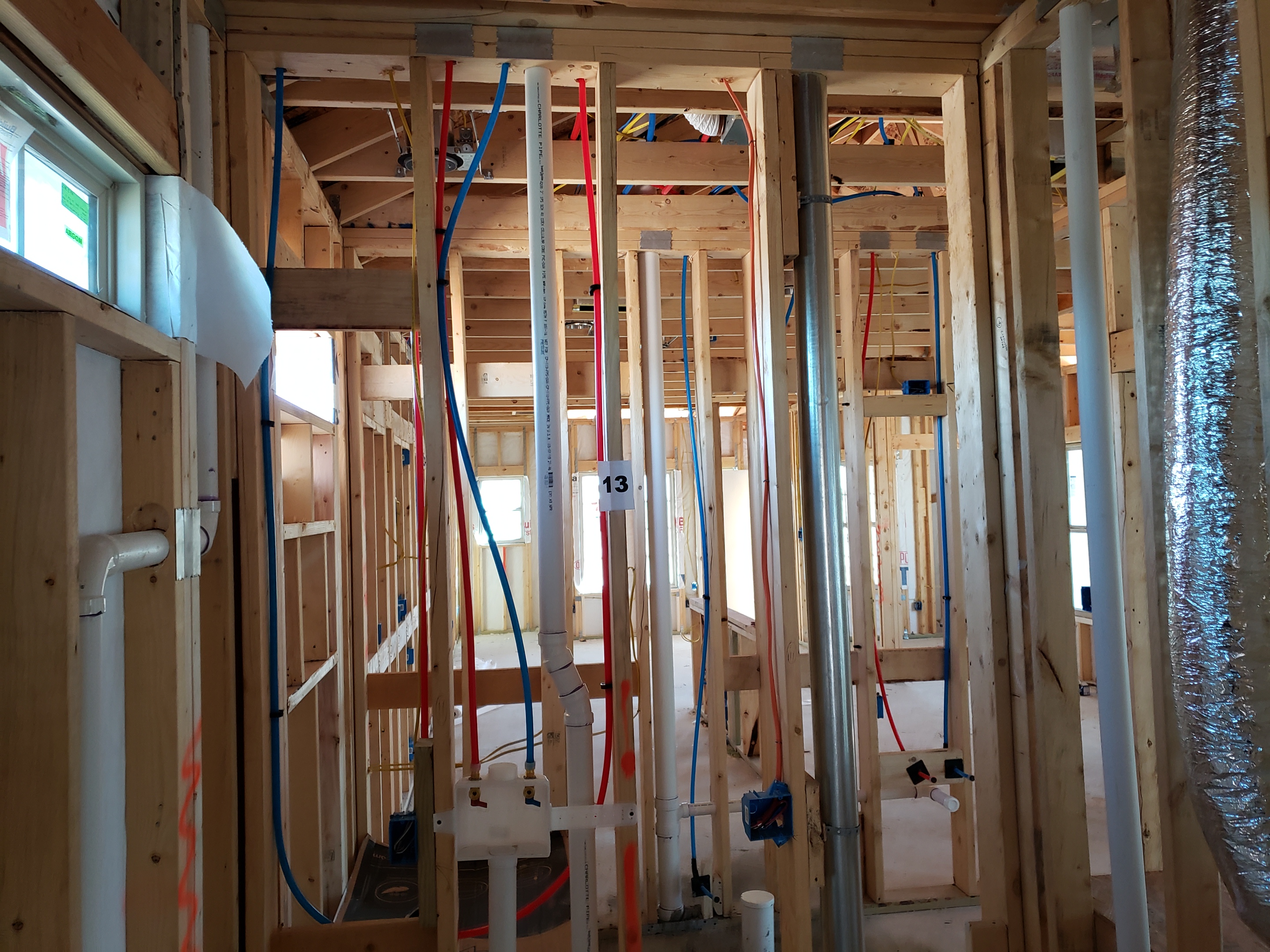

P13 The Laundry Backside of the AC closet

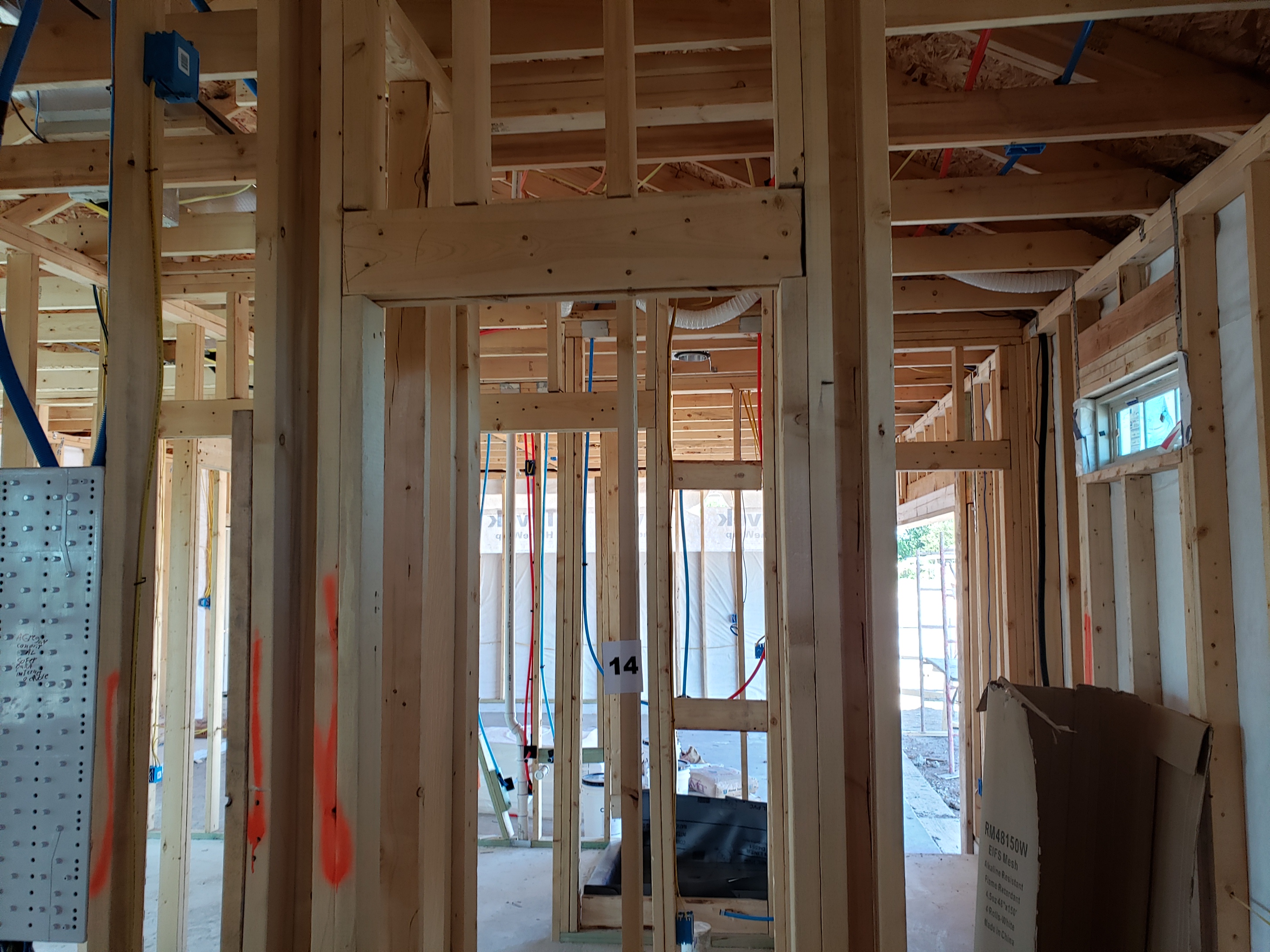

	P14 The Hall Closet

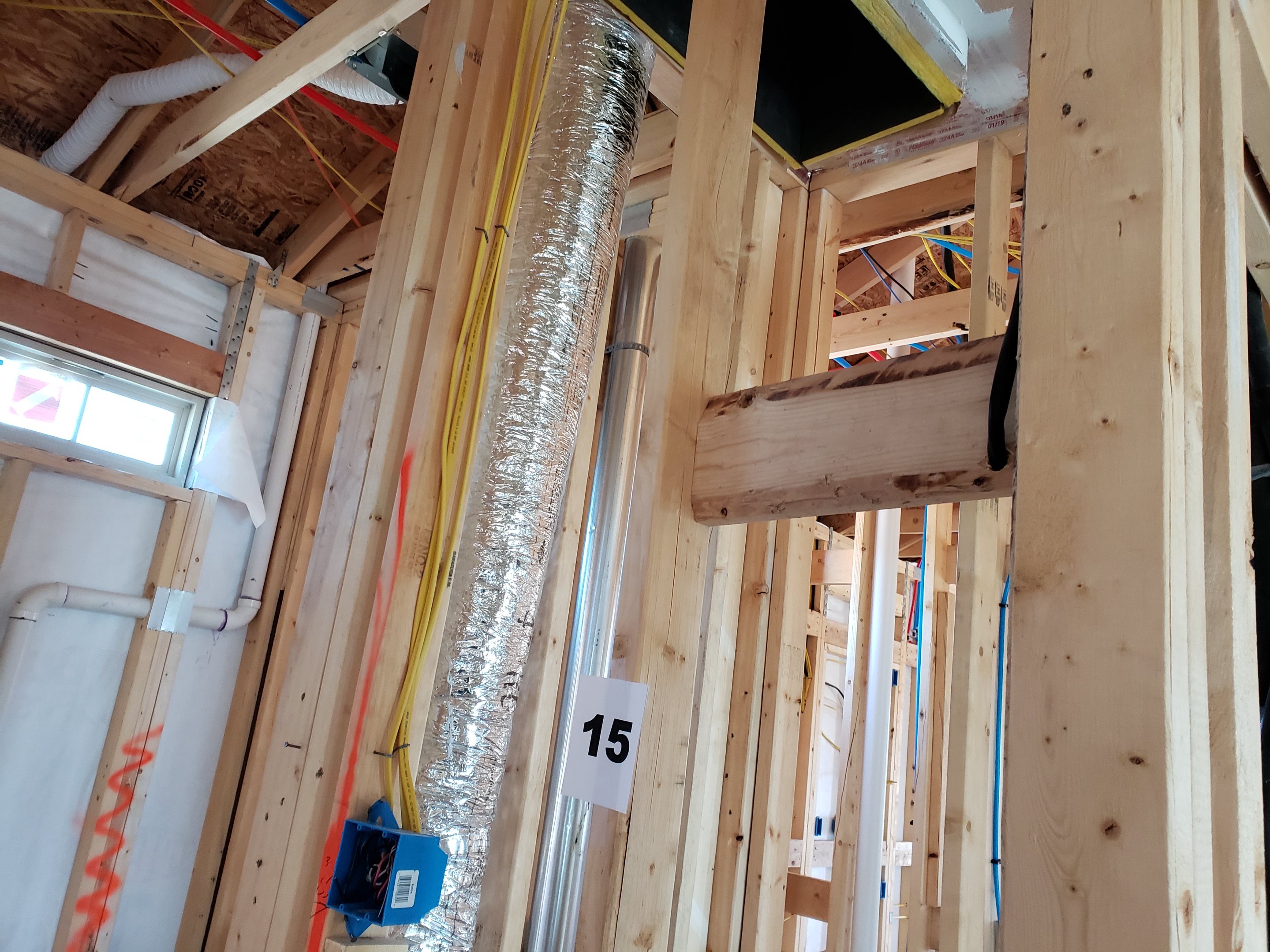

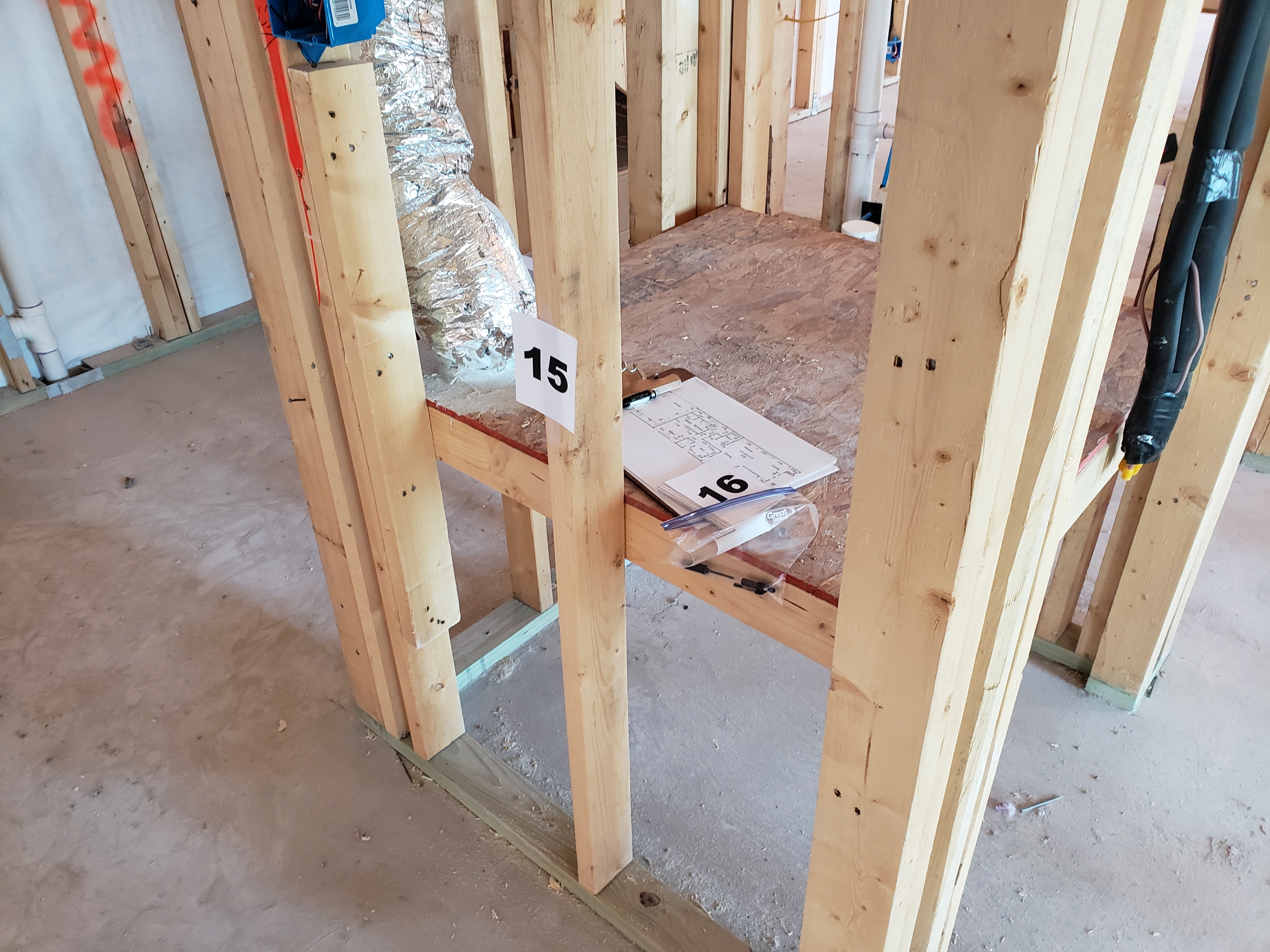

	P15 The hallway side of the AC Closet

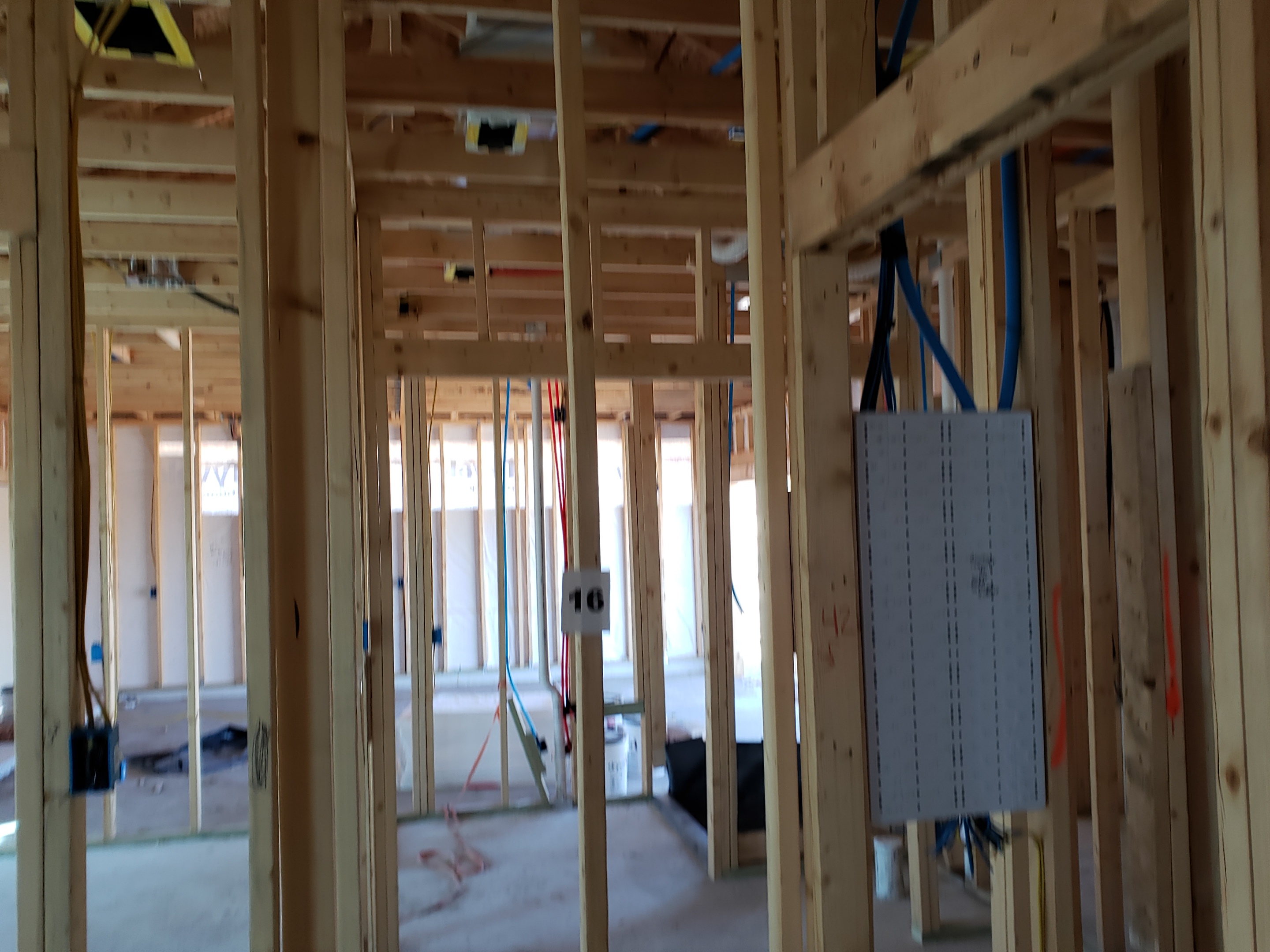

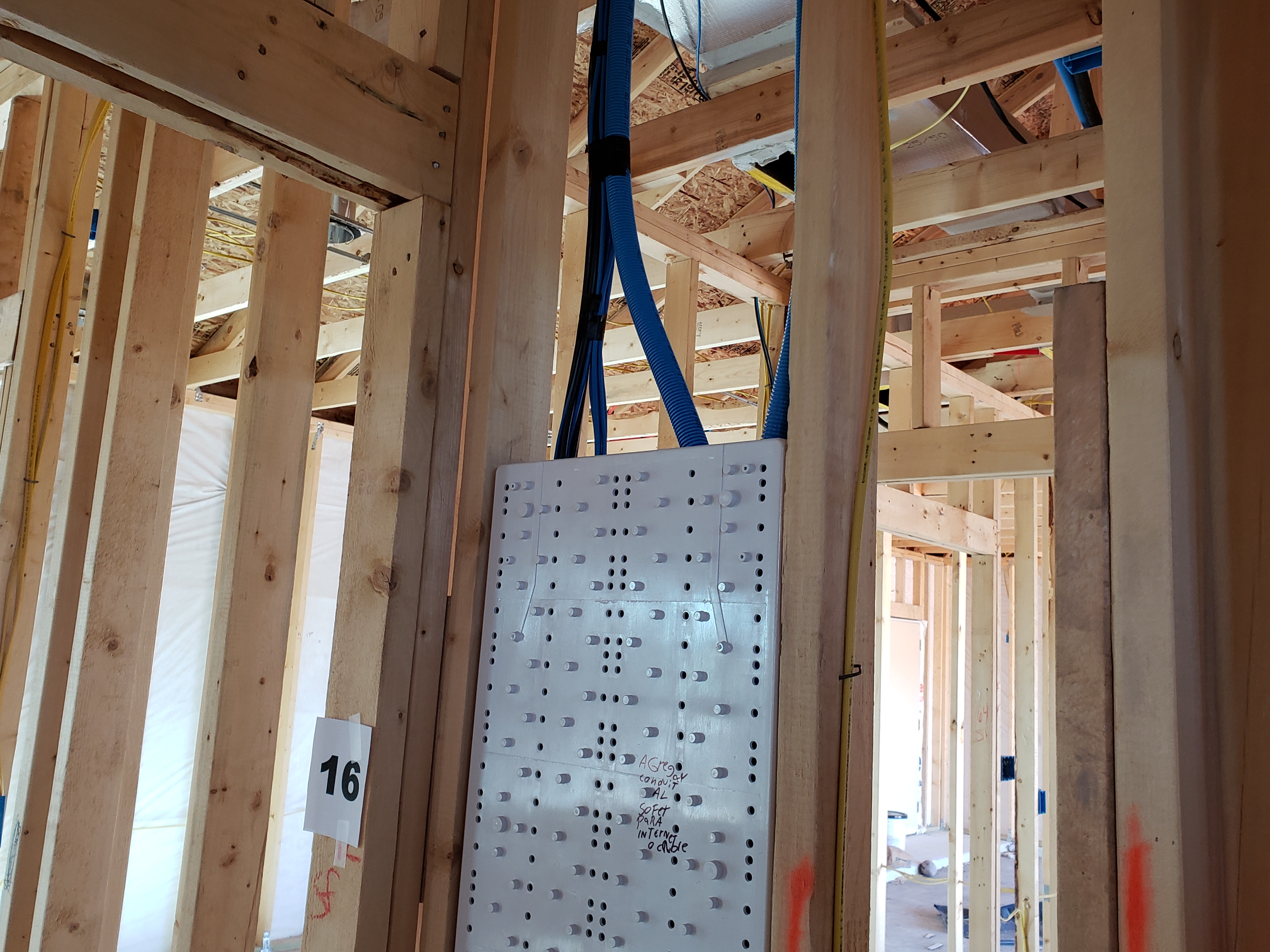

	P16 The hall side of the Master Closet Hall side of the Structured Wiring Box

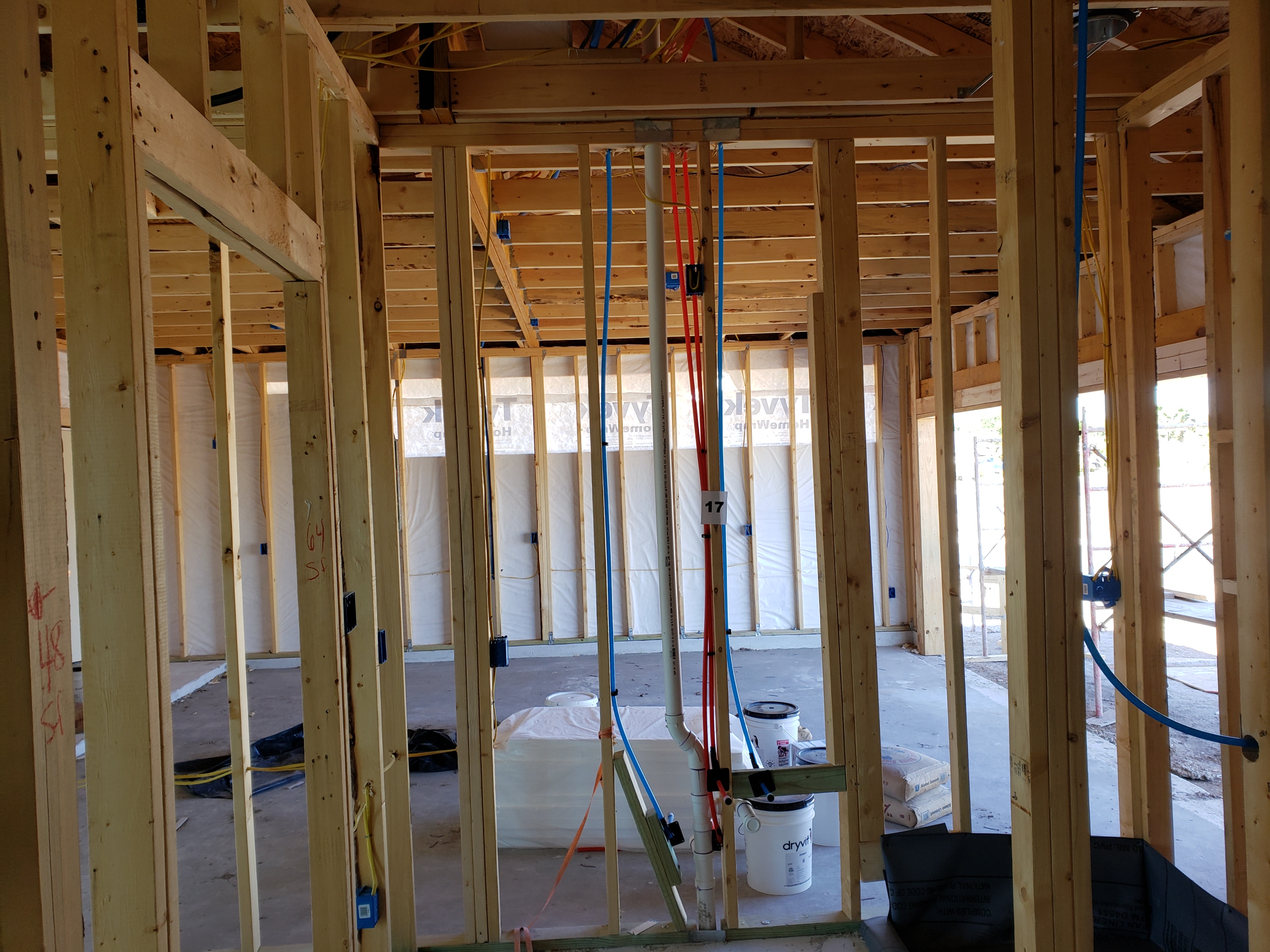

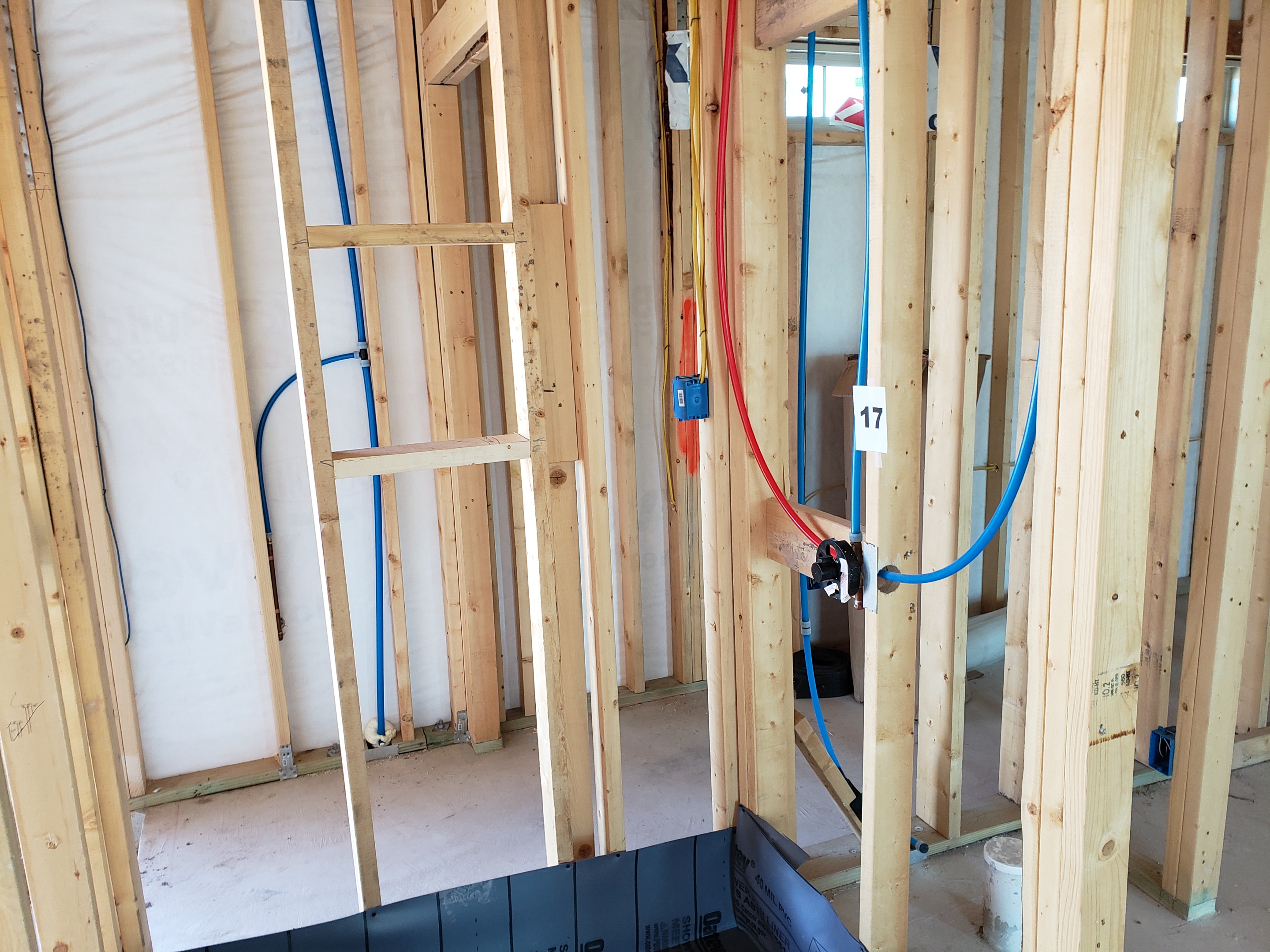

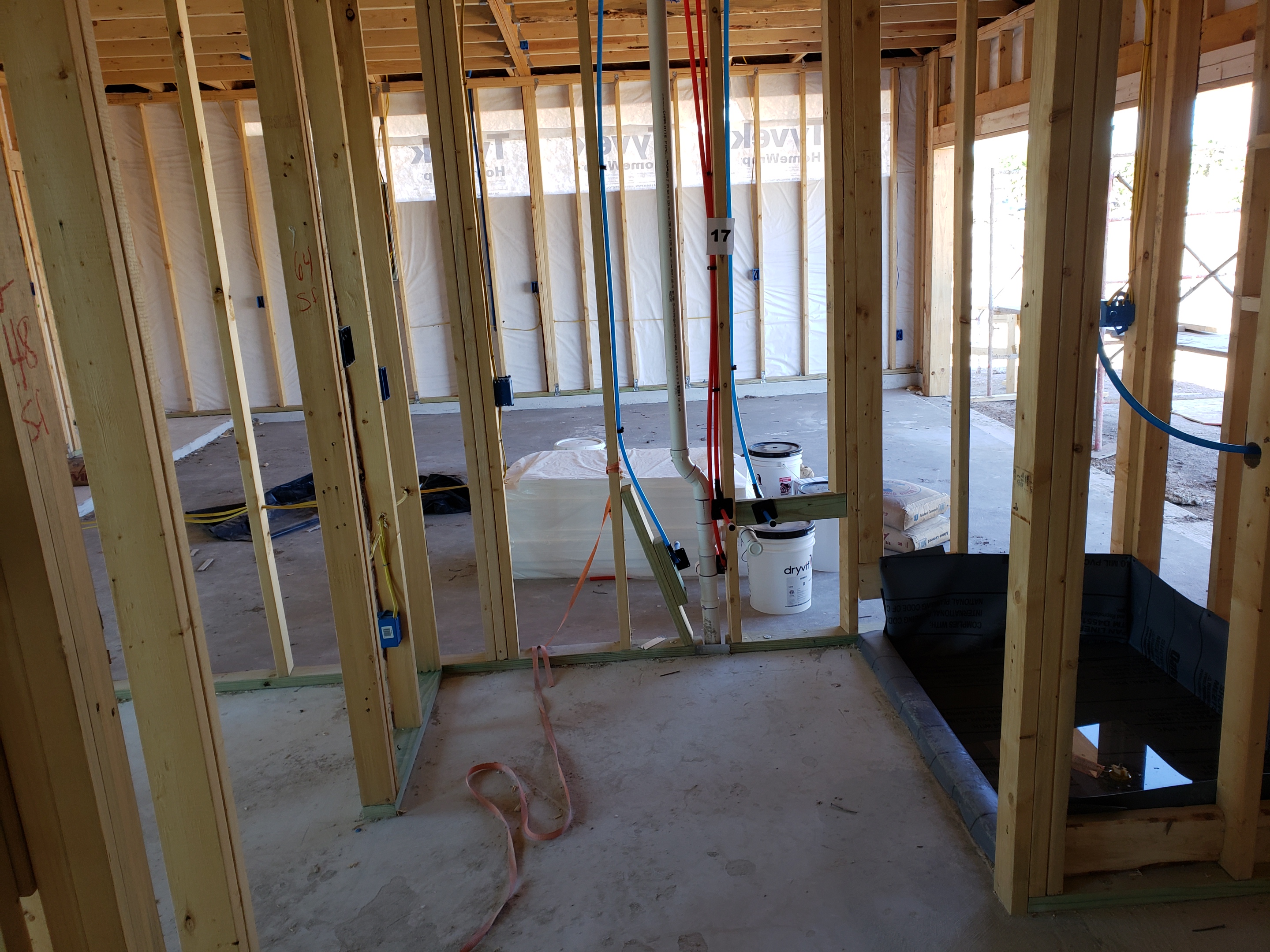

	P17 The Master Bathroom from the Master Bedroom
	The shower valve Front of the Structured Wiring Box

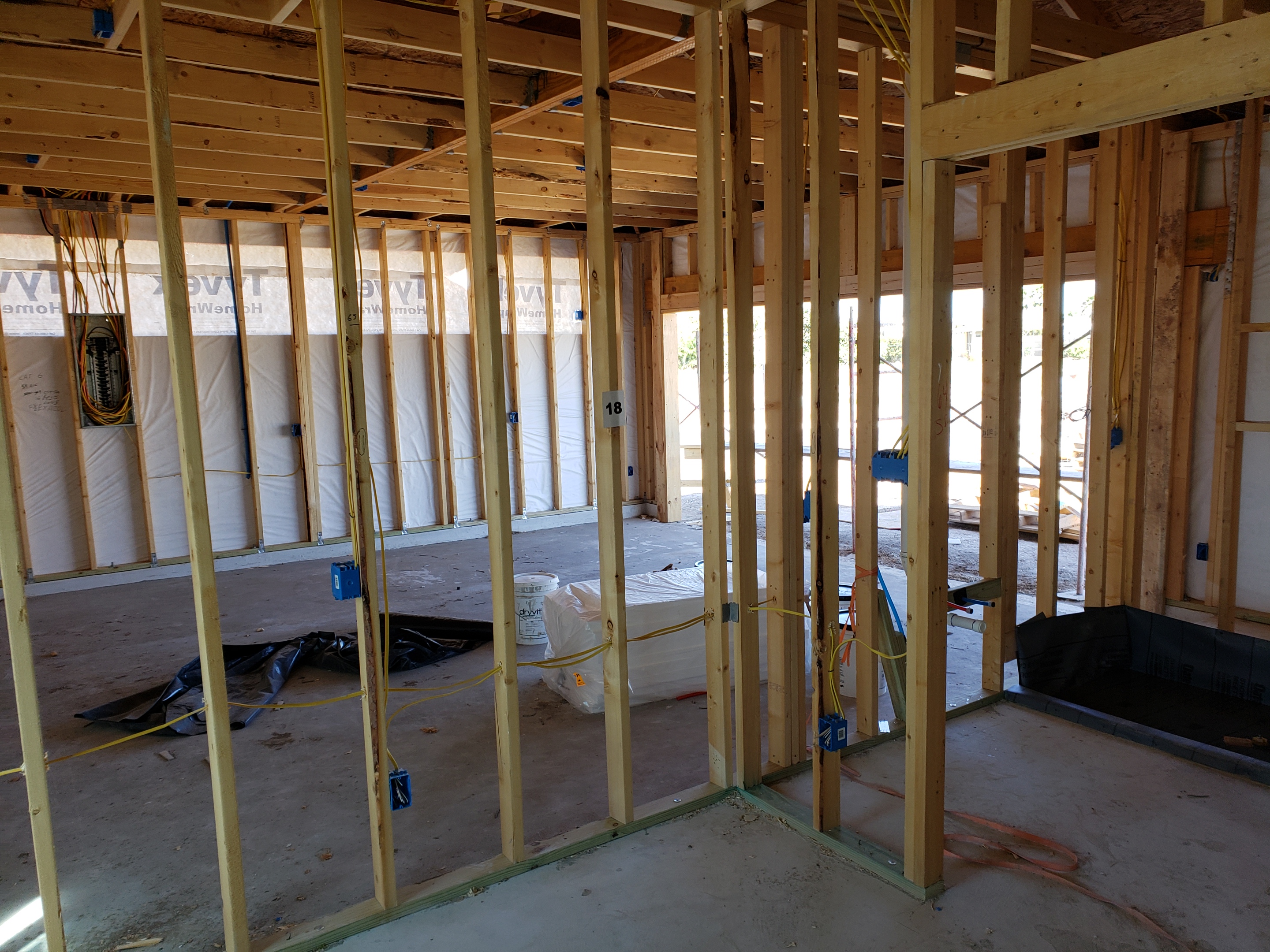

	P18 The west-southern corner of the Master Bedroom

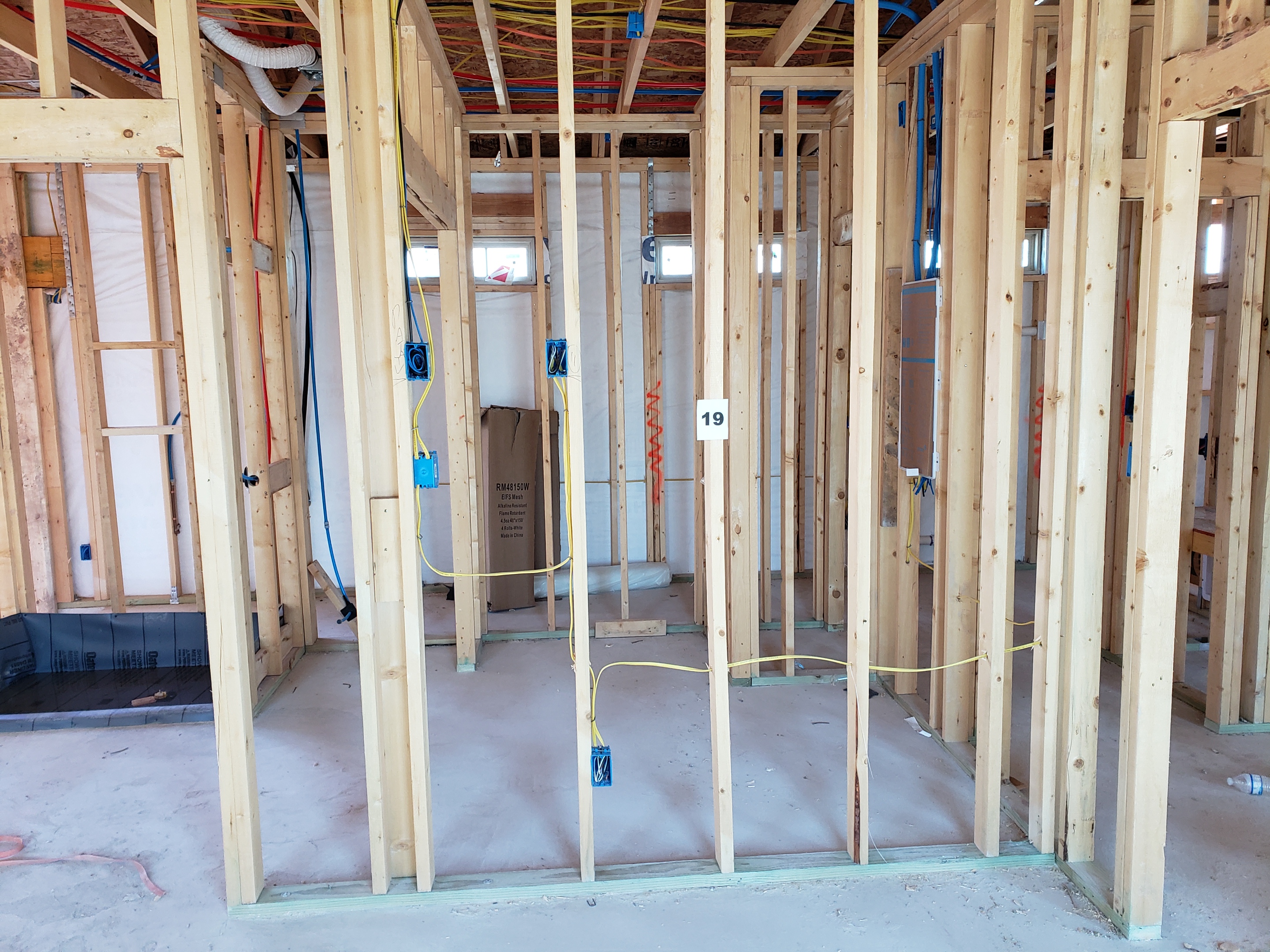

	P19 The west-northern side of the Master Bedroom

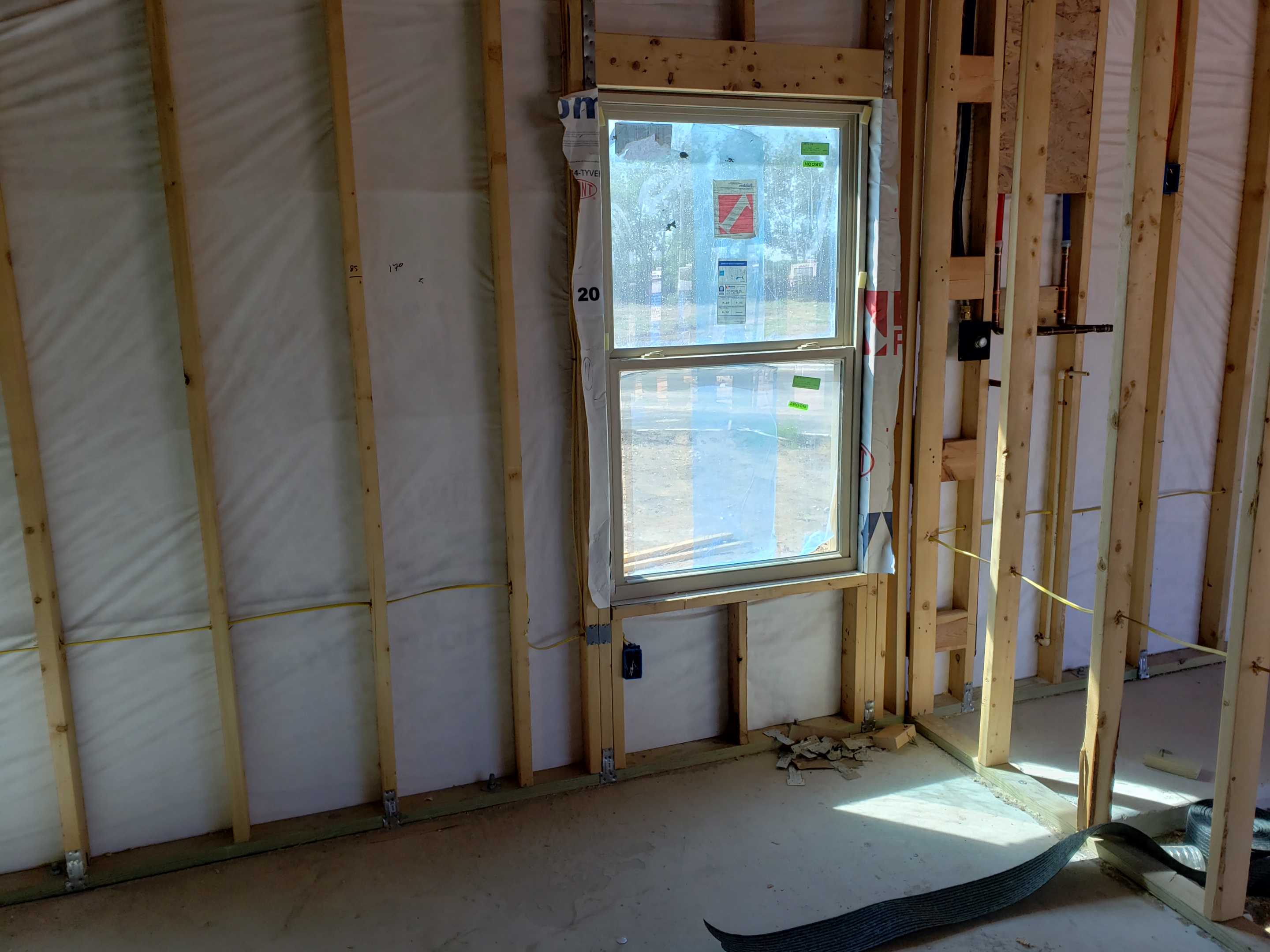

	P20 The east-northern side of the Master Bedroom

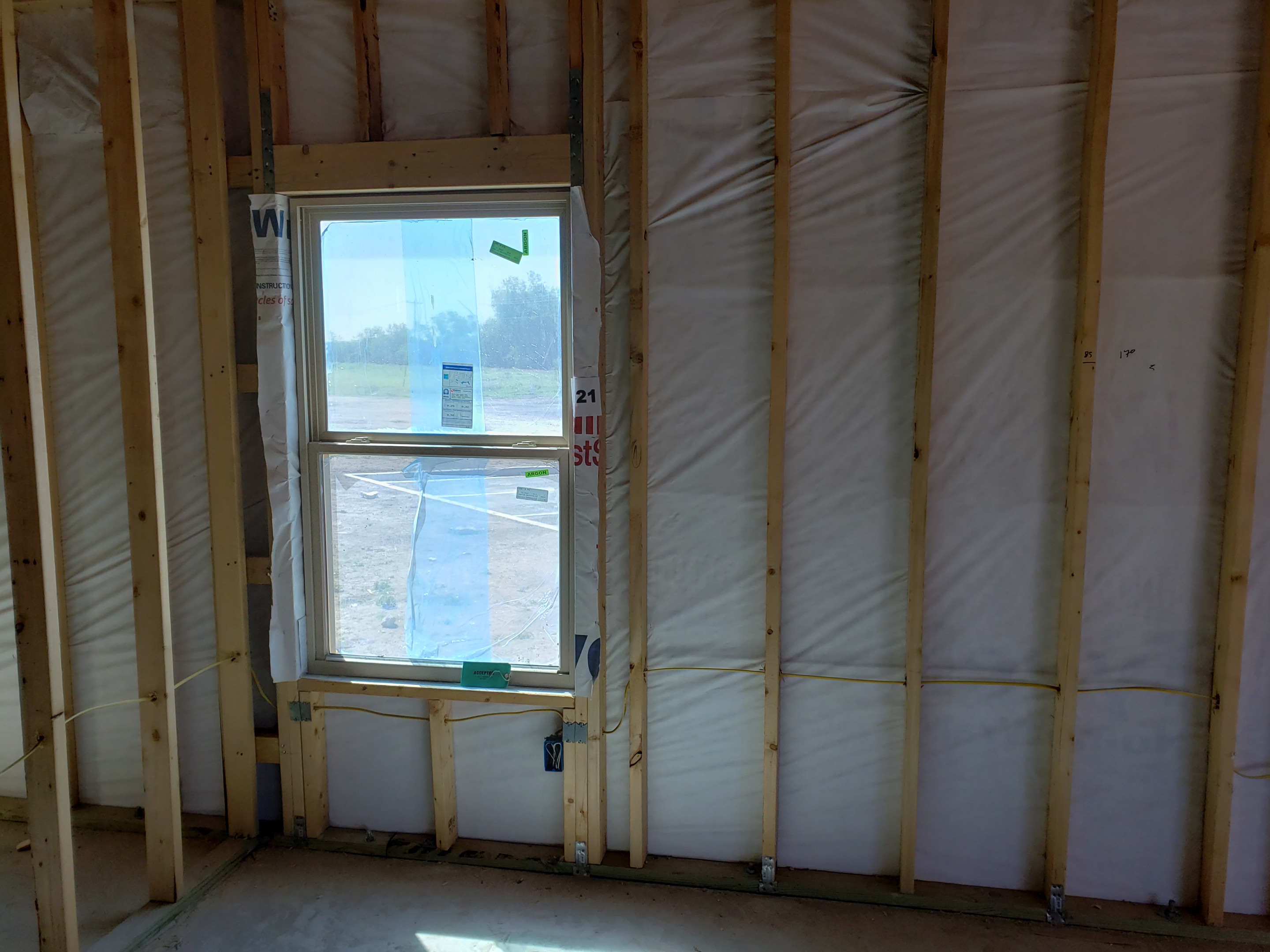

	P21 The east-northern side of the Master Bedroom
	P22 The north-eastern side of the Master Bedroom Backside of Bedroom Closet

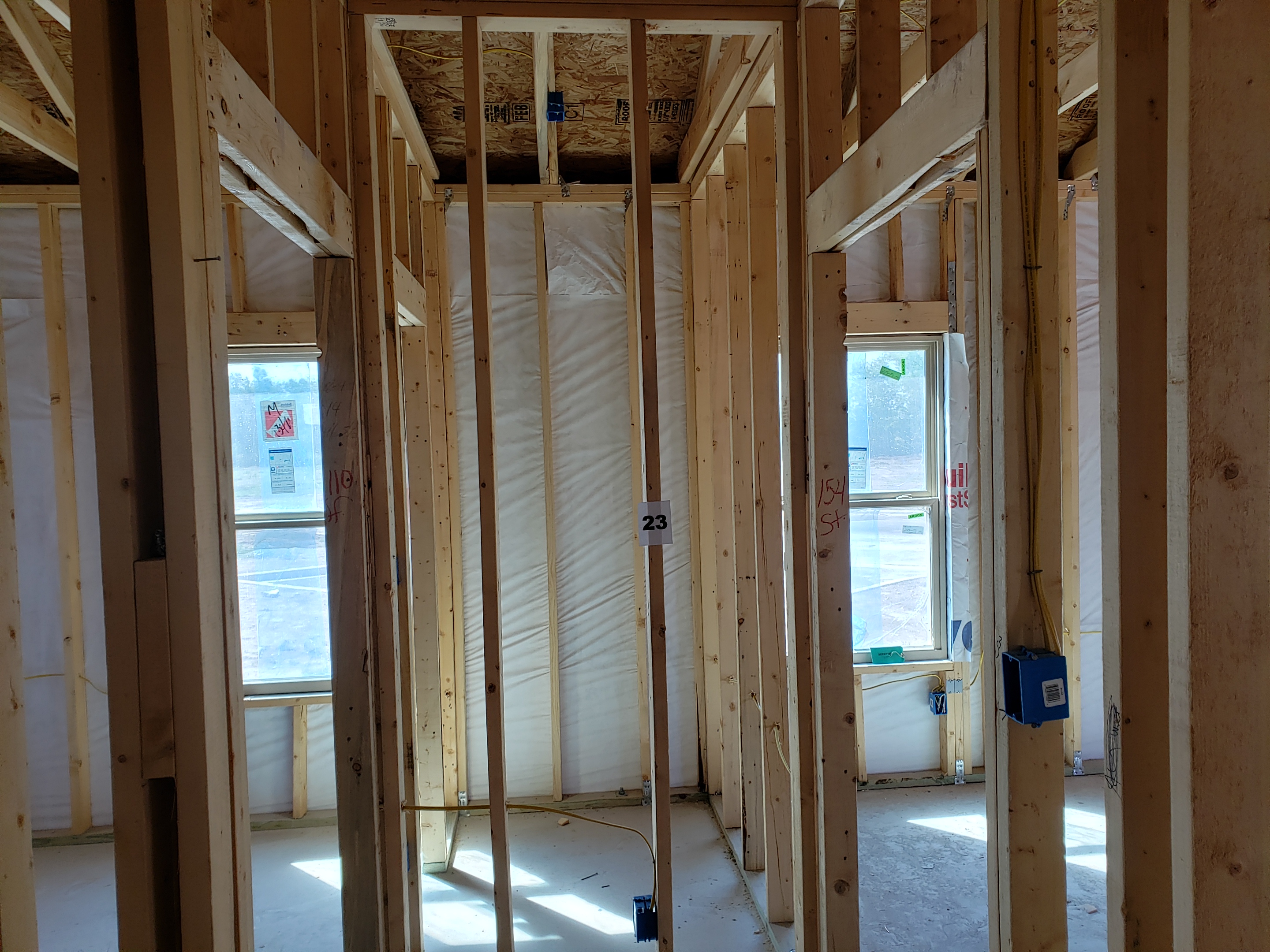

	P23 The Hall side of the Bedroom Closet

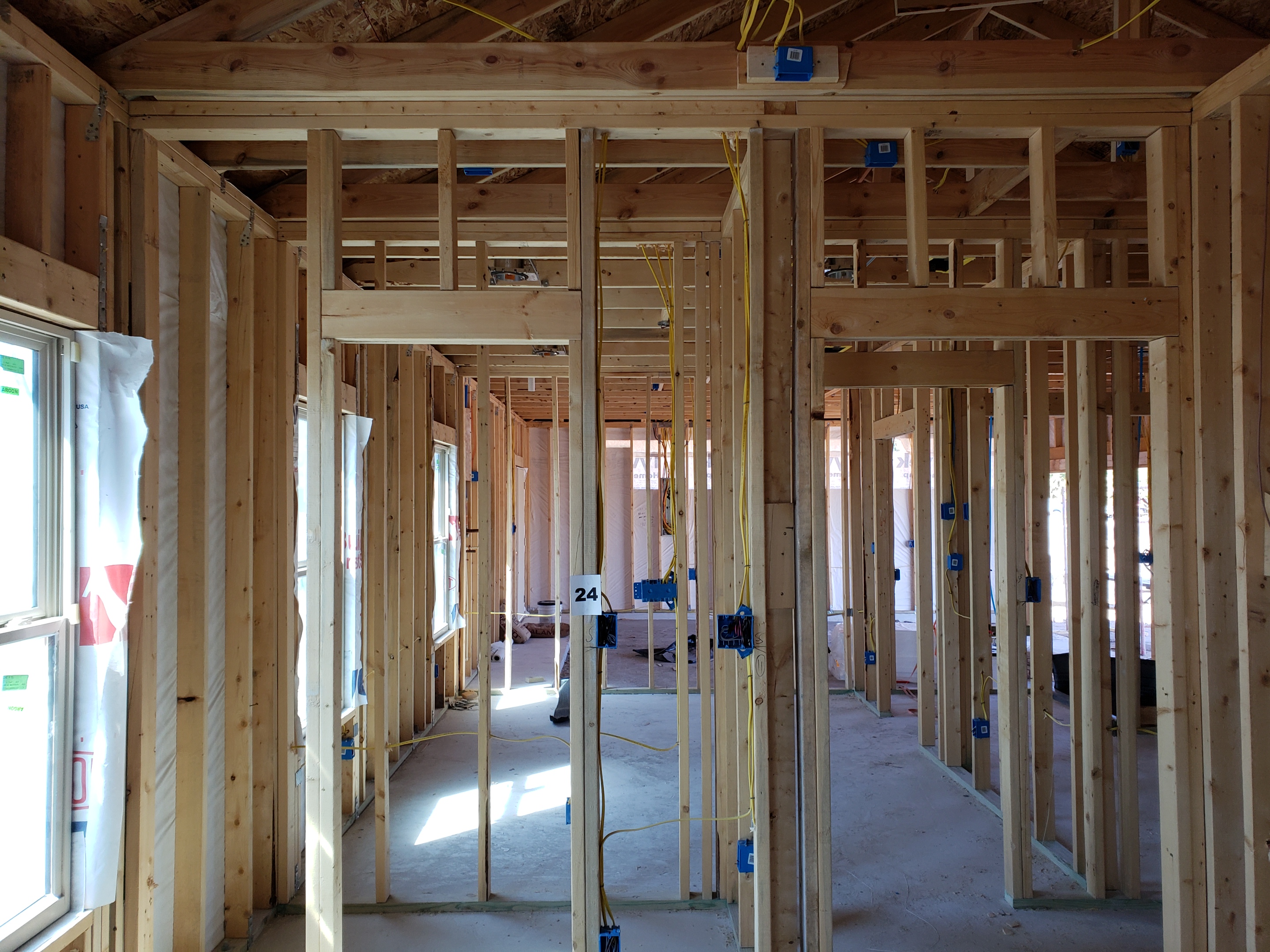

	P24 The Closet side of the Bedroom

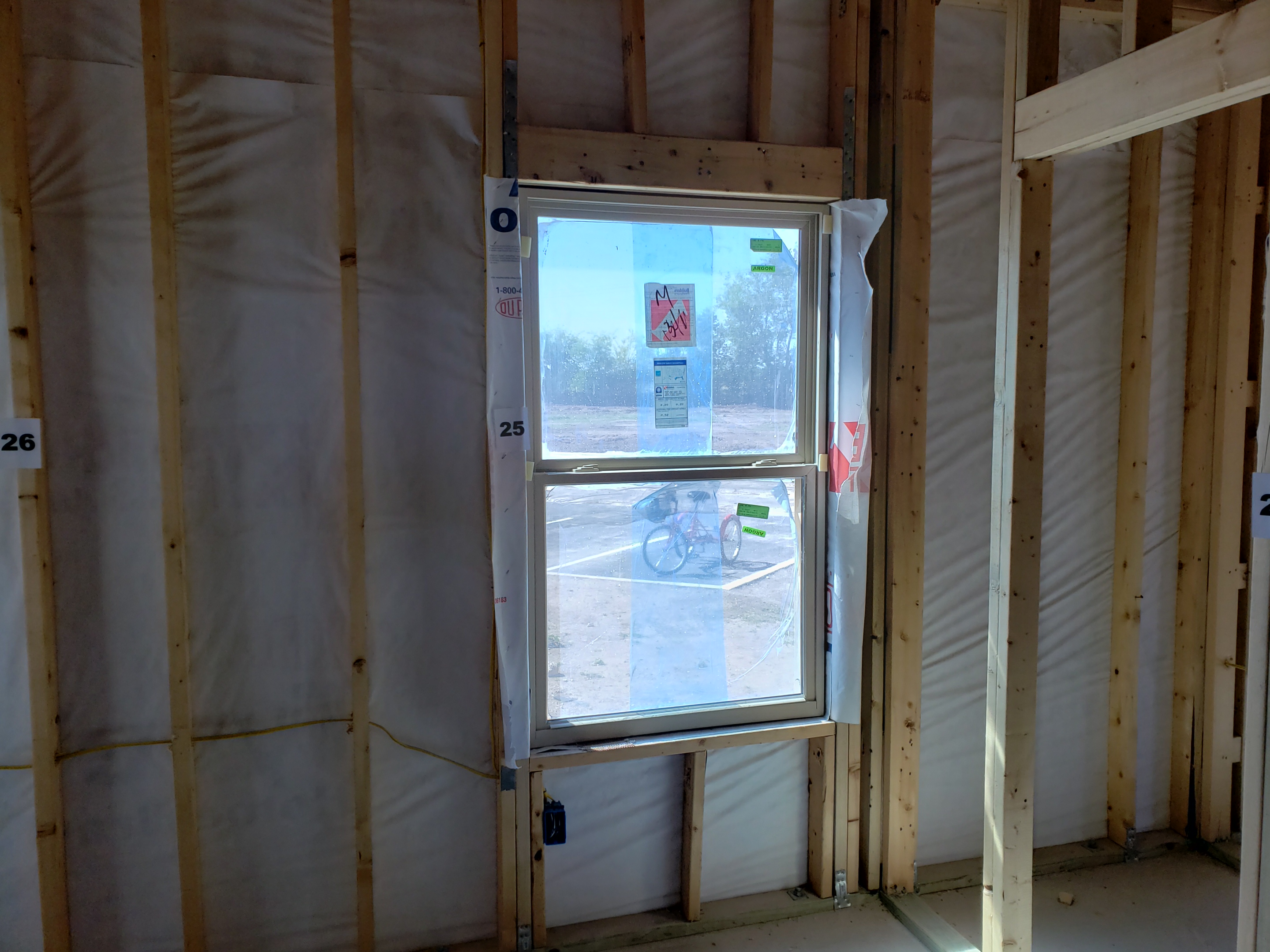

	P25 The east-southern side of the Bedroom

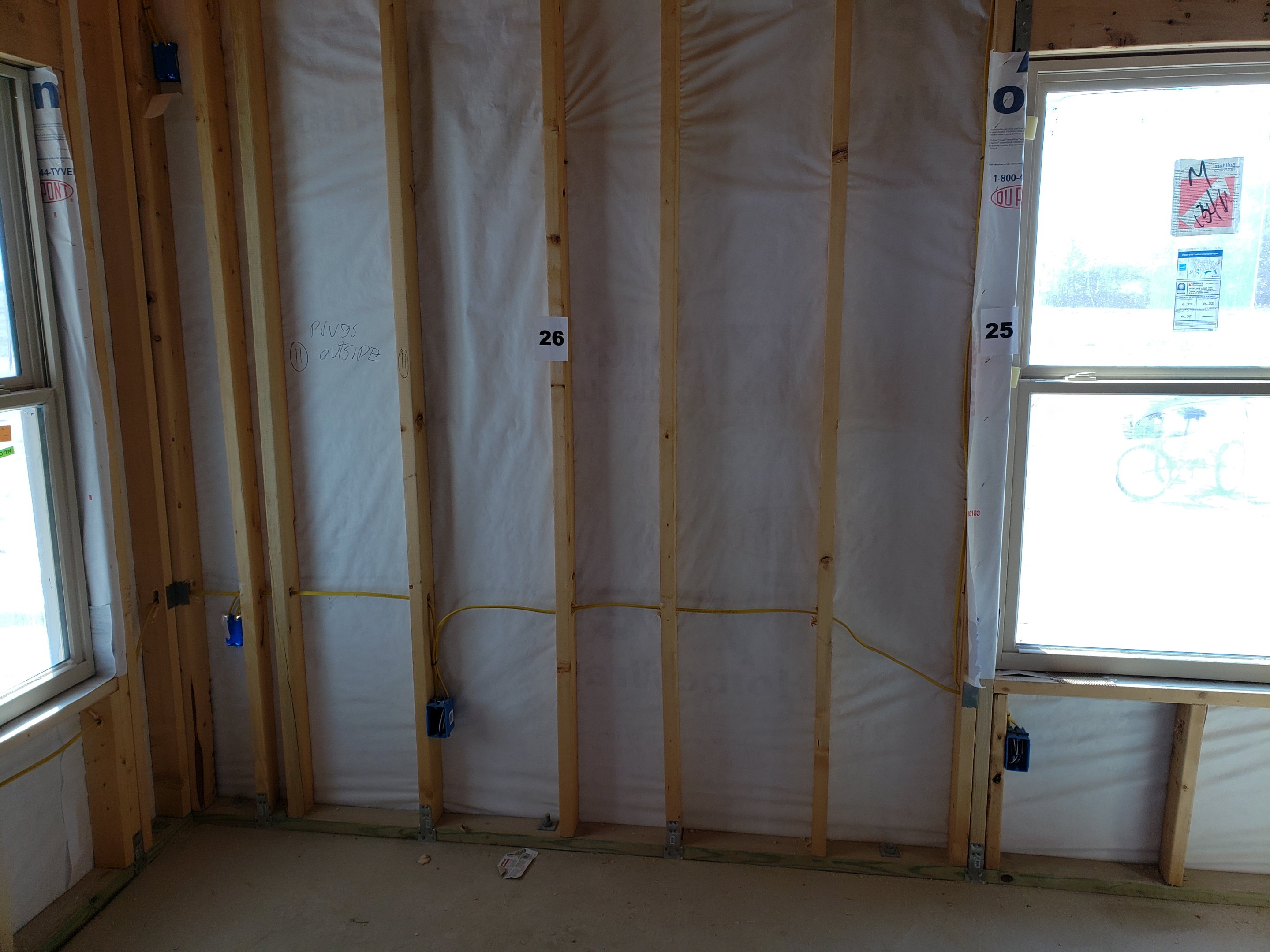

	P26 The east-northern side of the Bedroom

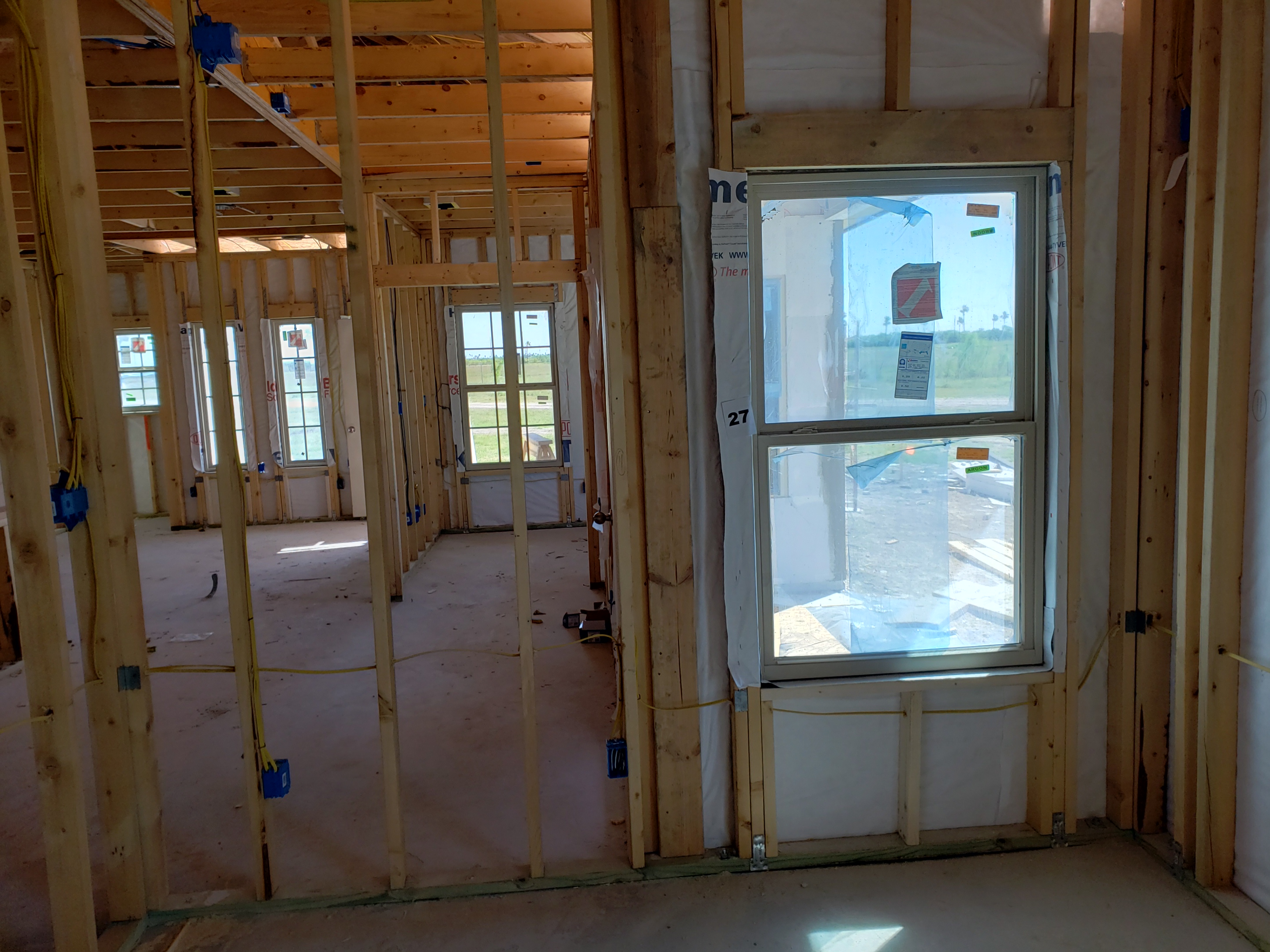

	P27 The north-eastern side of the Bedroom Backside of Dining wall.

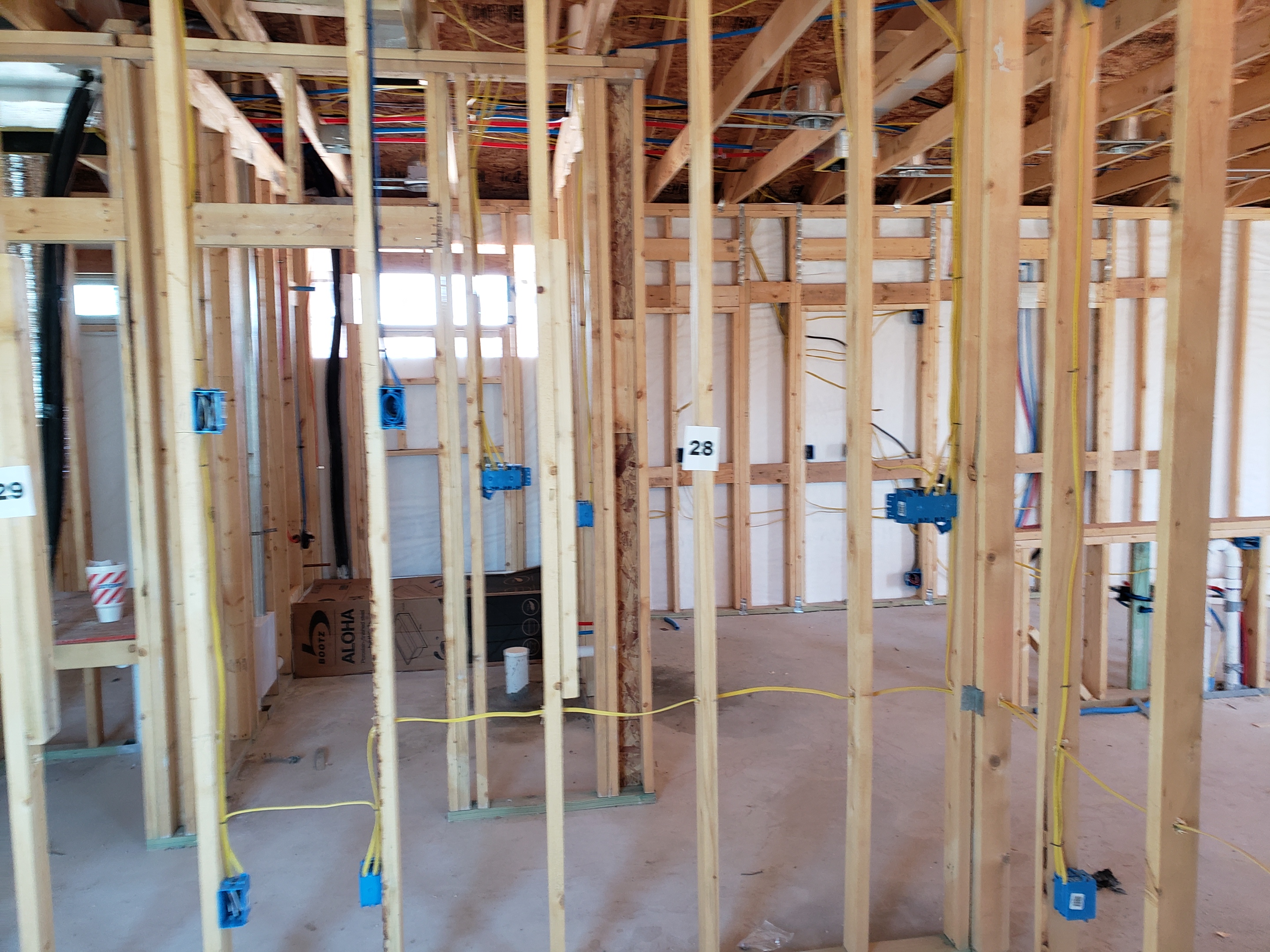

	P28 The west-northern side of the Bedroom

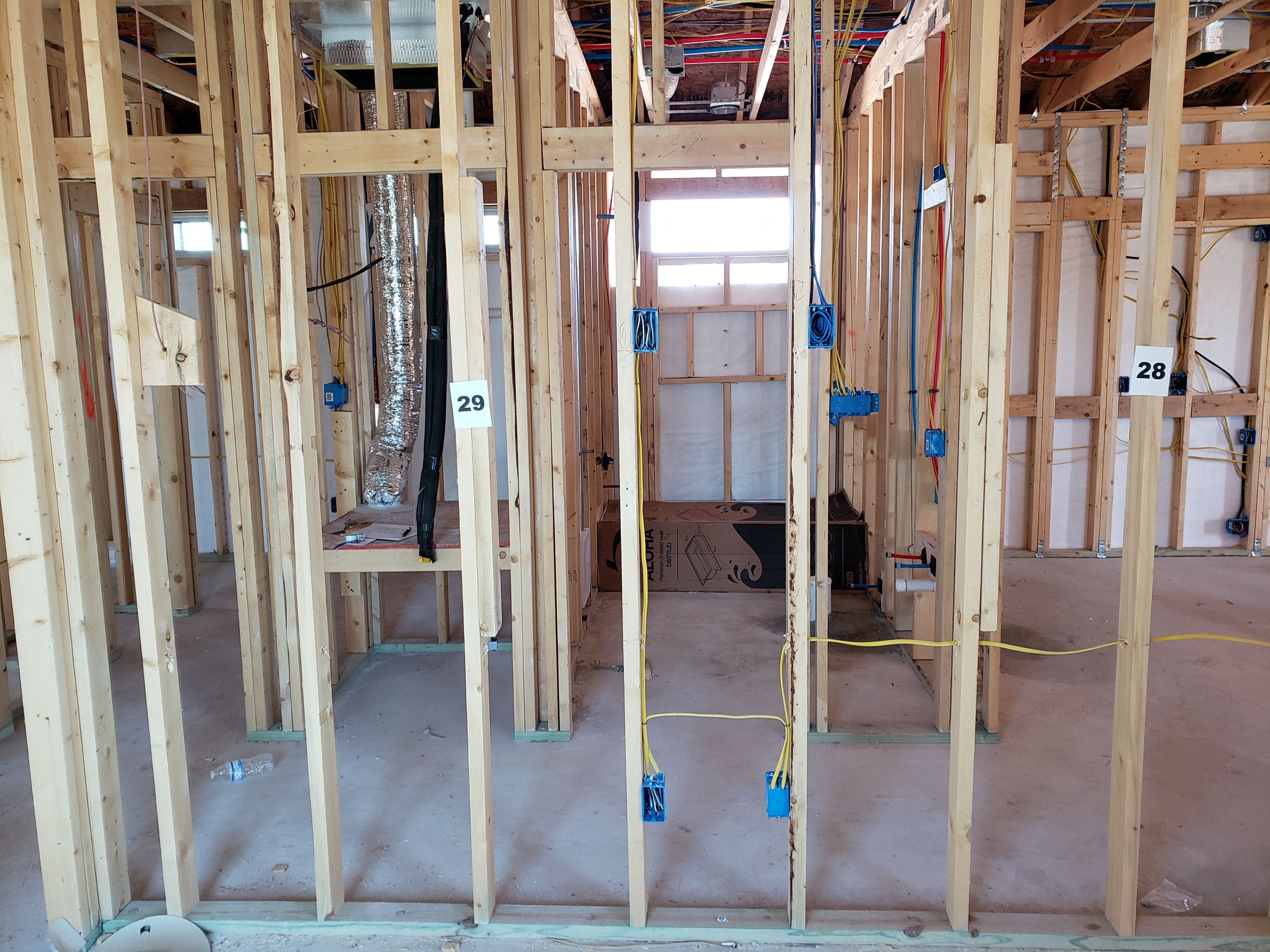

	P29 The west-southern side of the Bedroom

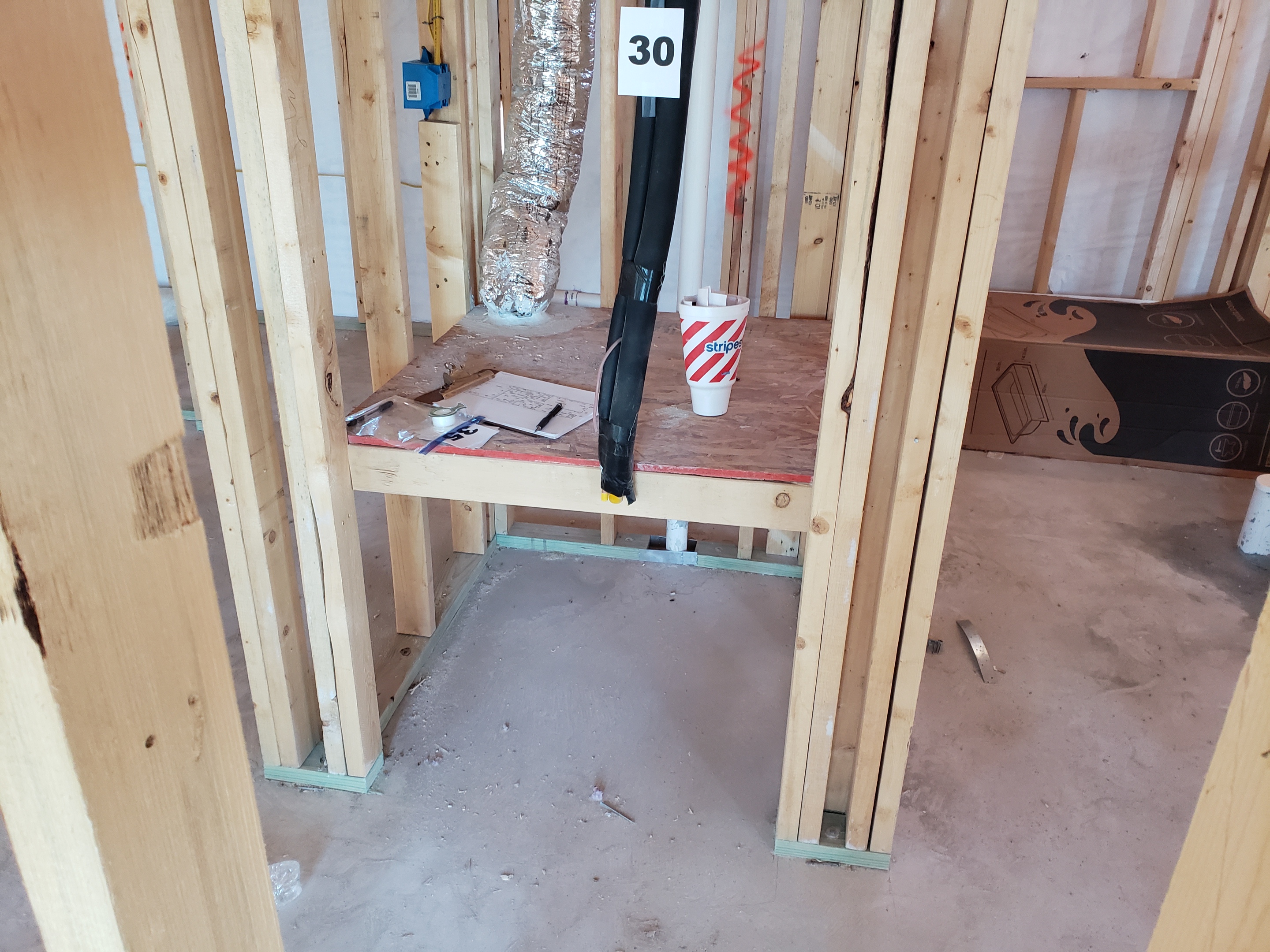

	P30 The AC Closet

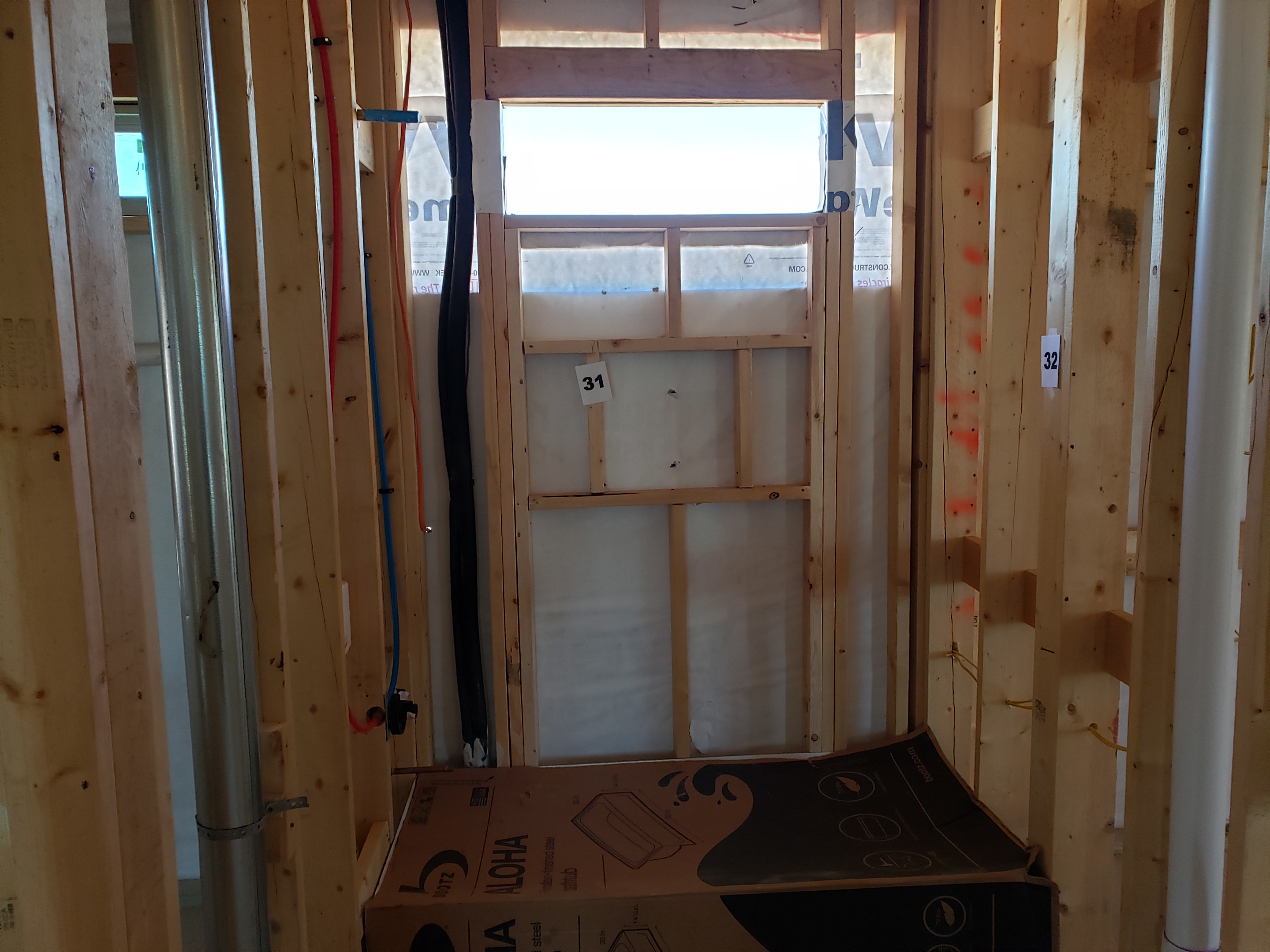

	P31 The western wall of the Bathroom

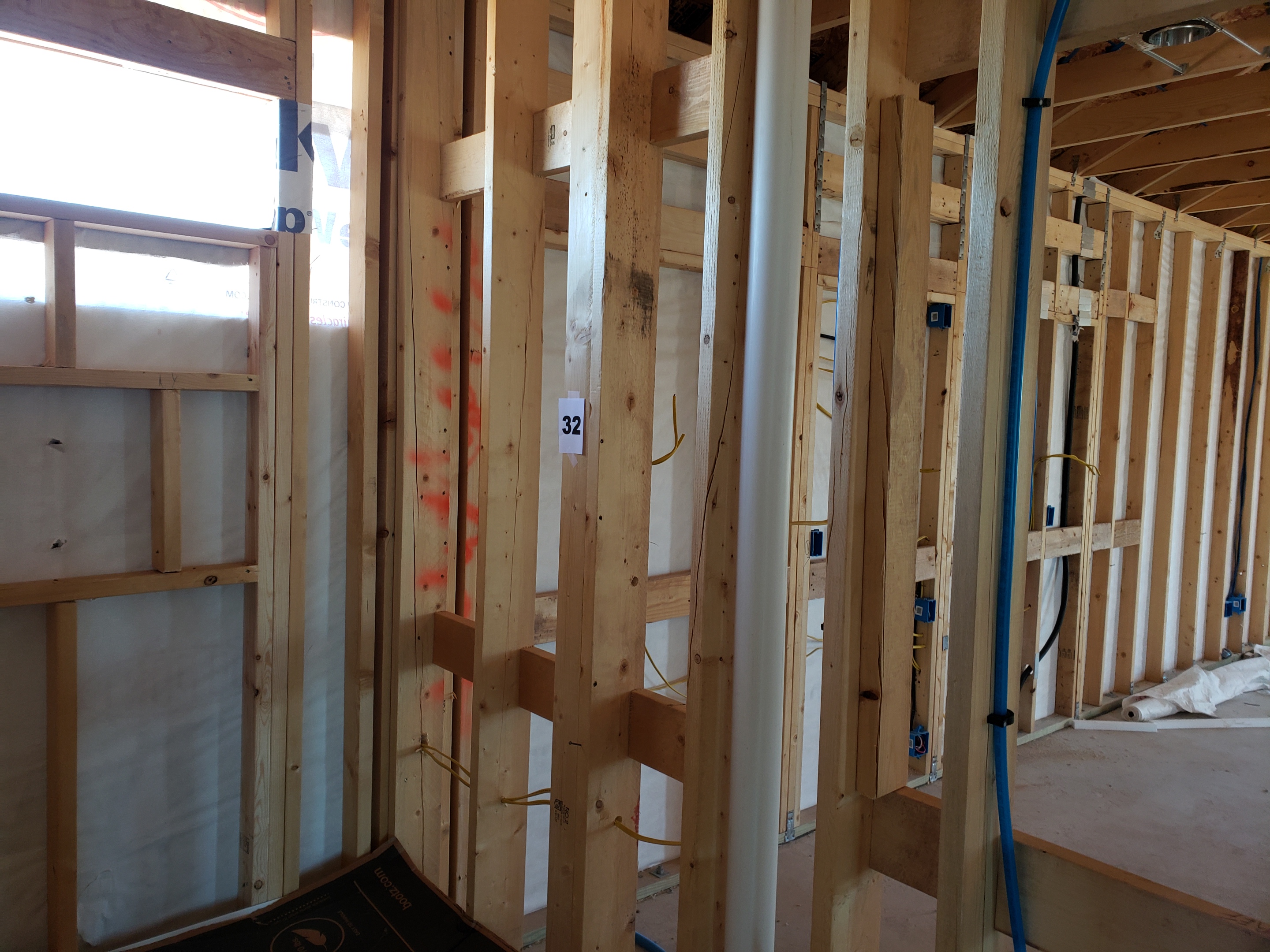

	P32 The west-northern corner of the Bathroom

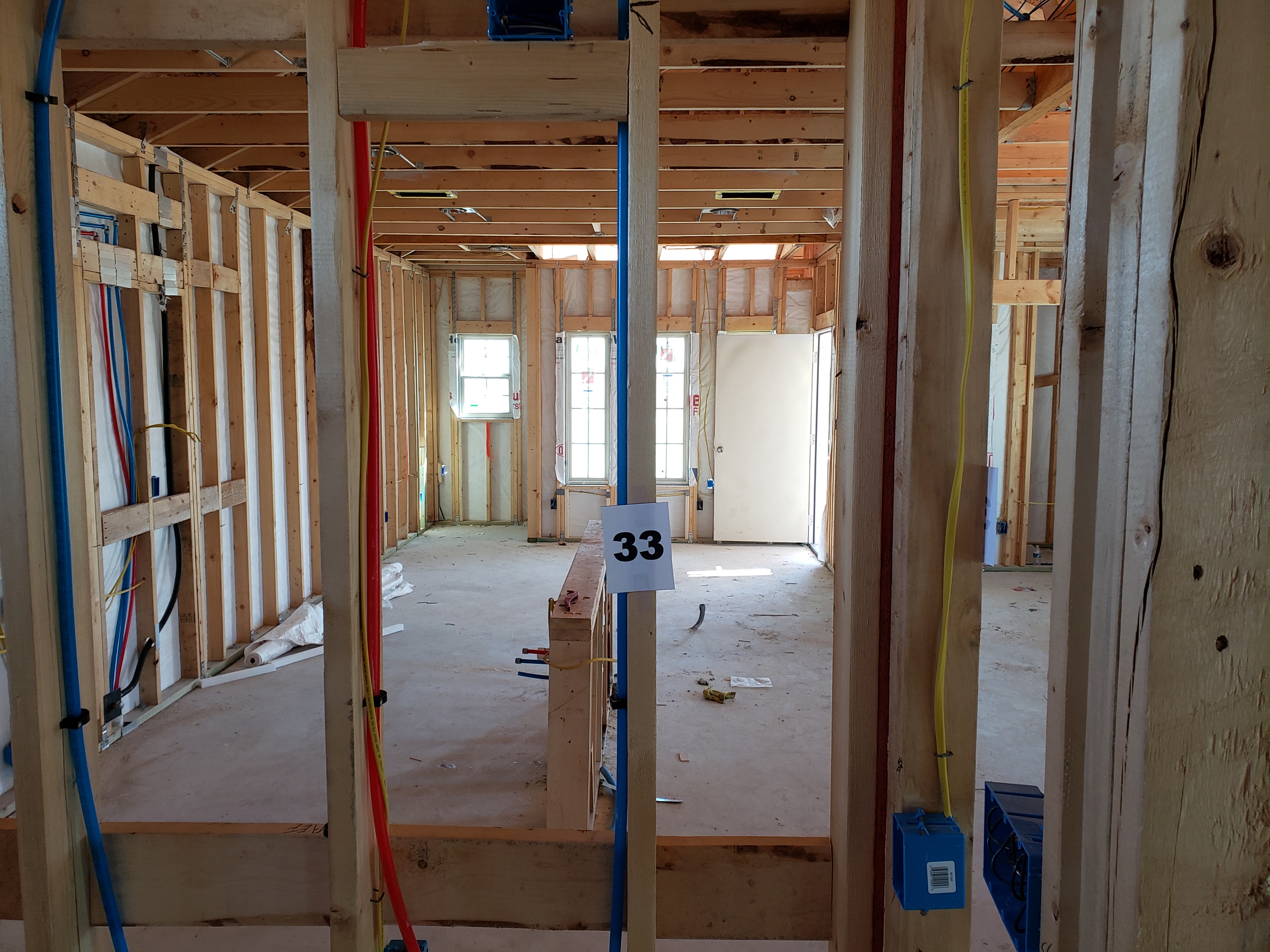

	P33 The northern wall of the Bathroom

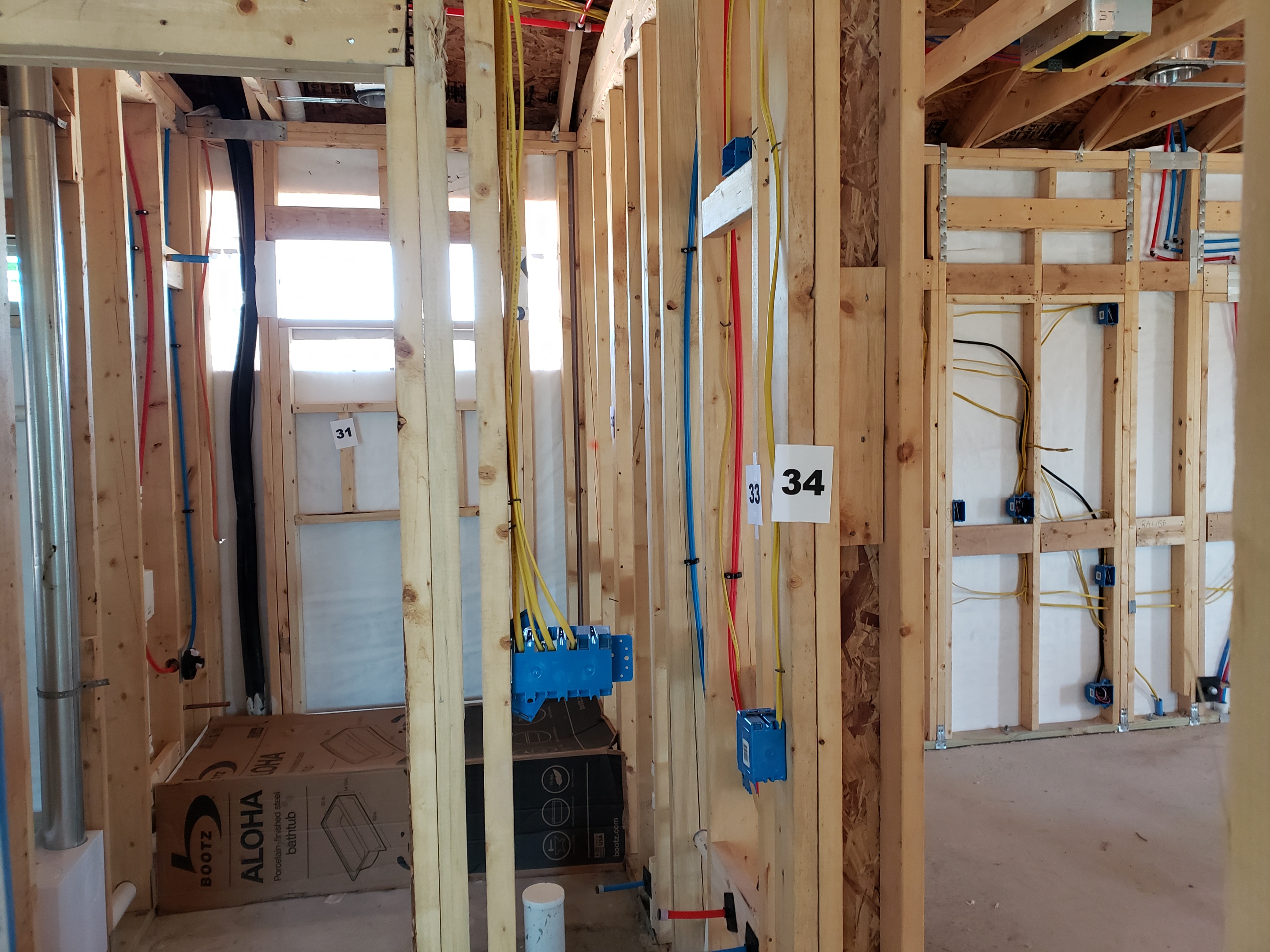

	P34 The Hall side of the Bathroom wall

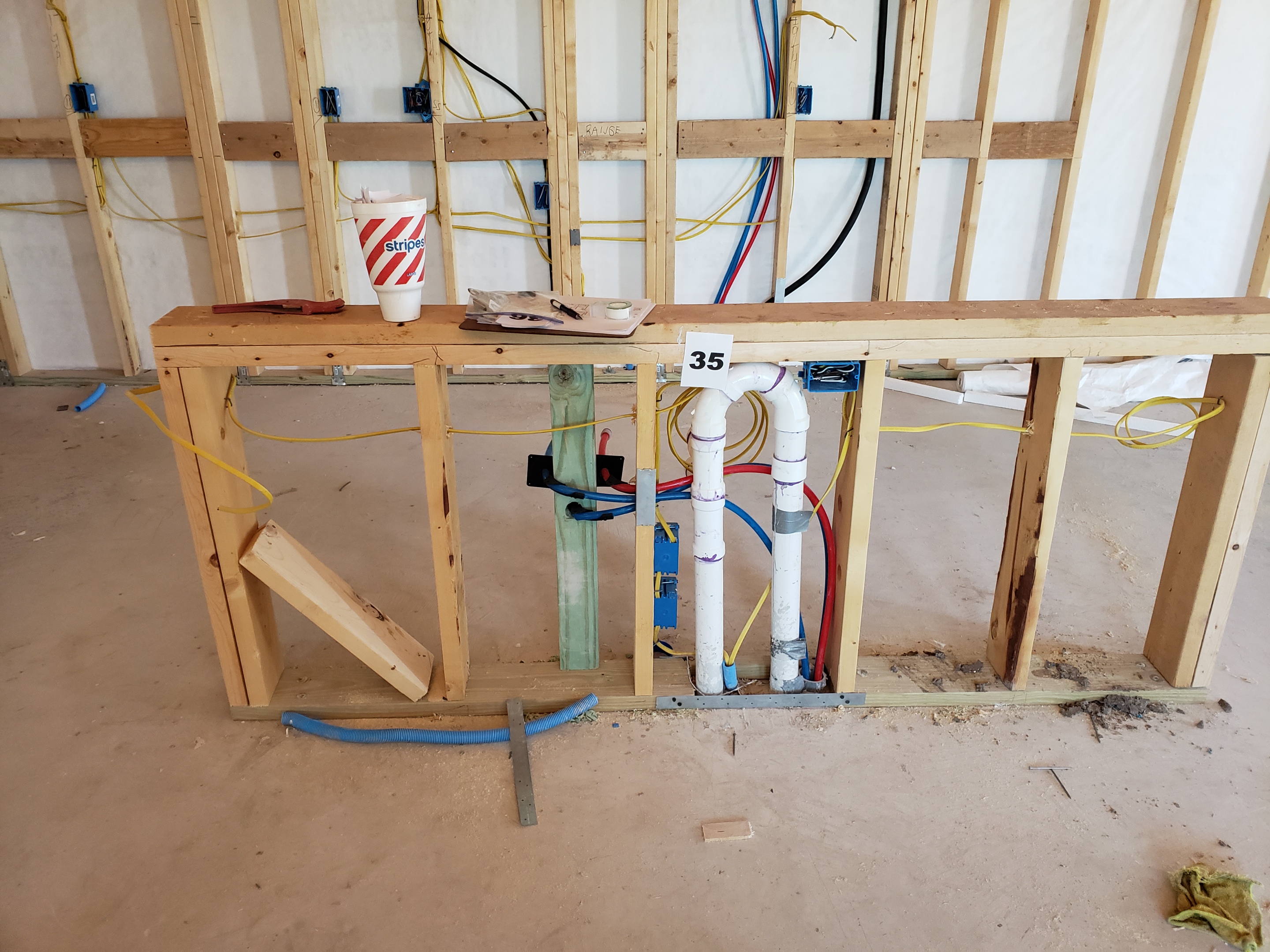

	P35 The center core of the Kitchen island

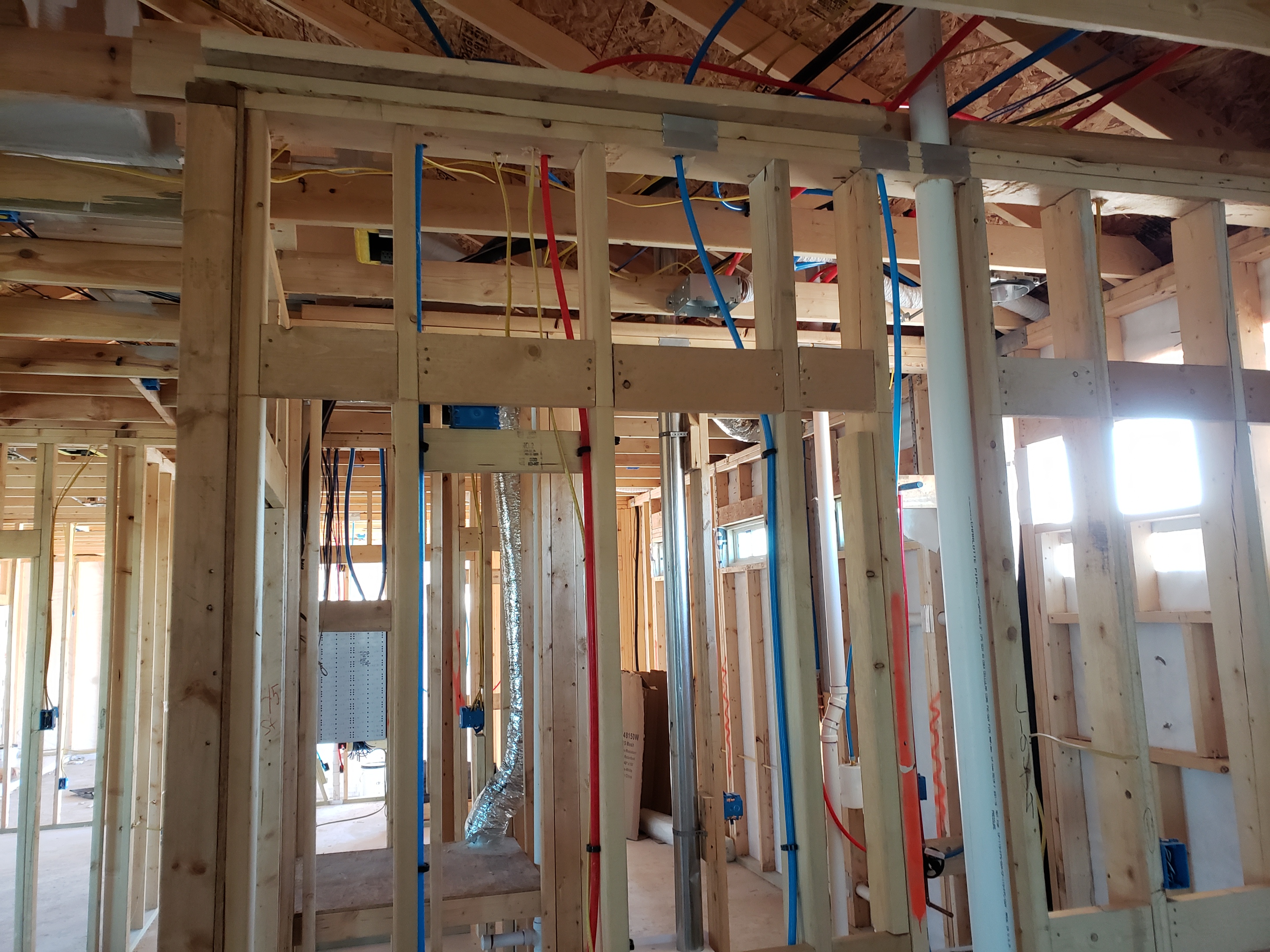

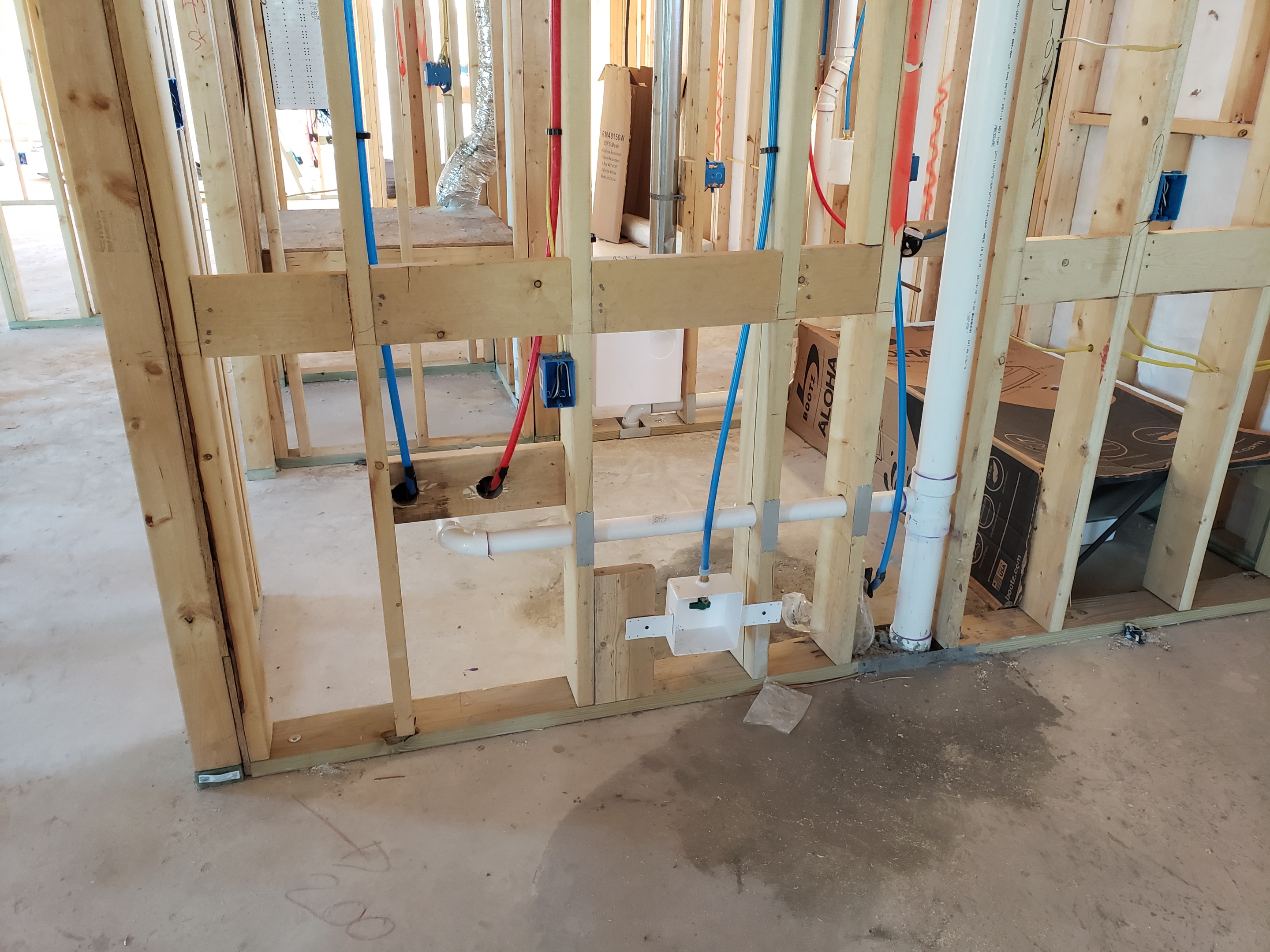

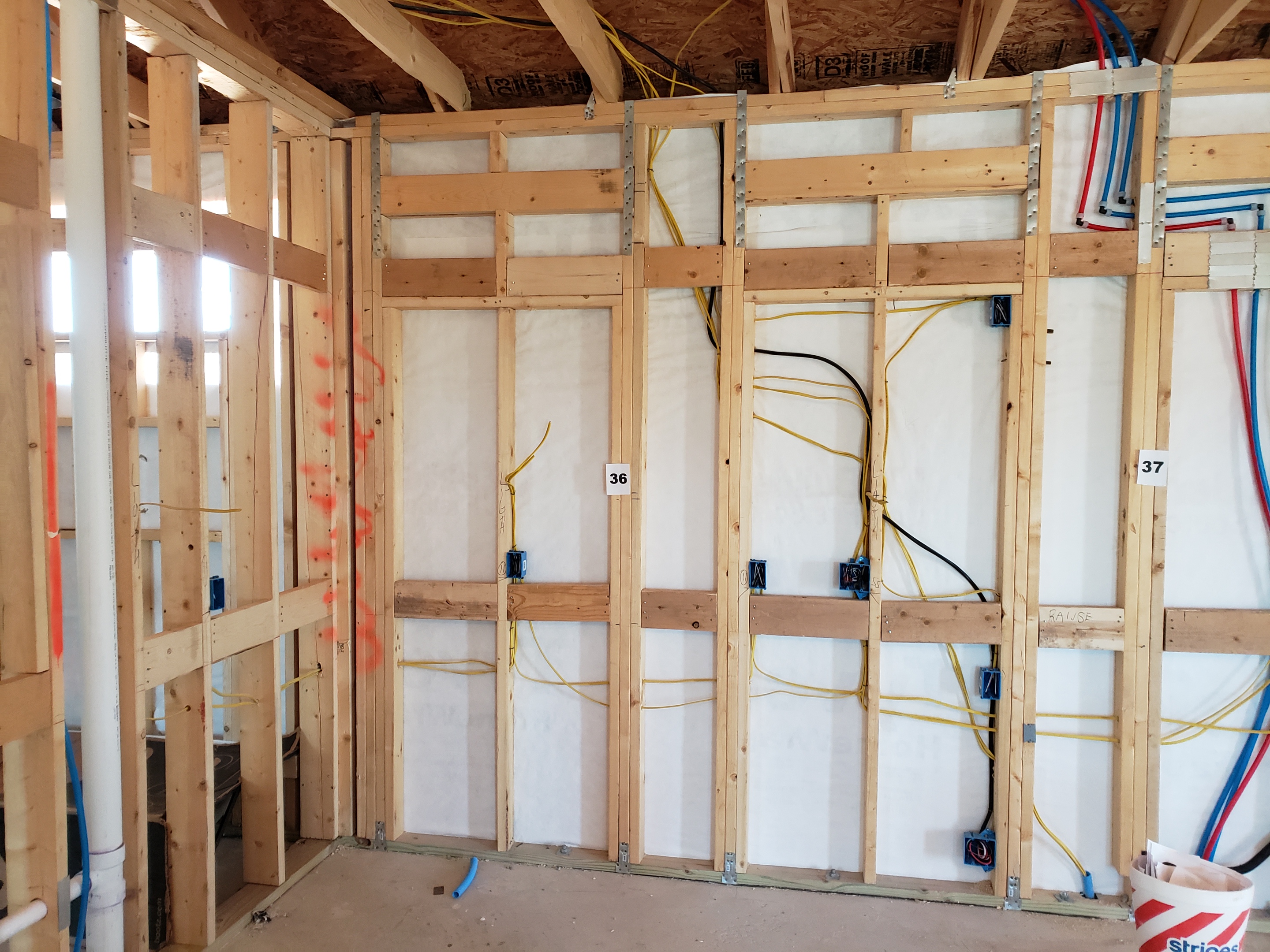

P36 The Refrigerator wall of the Kitchen The west-southern wall of the Kitchen

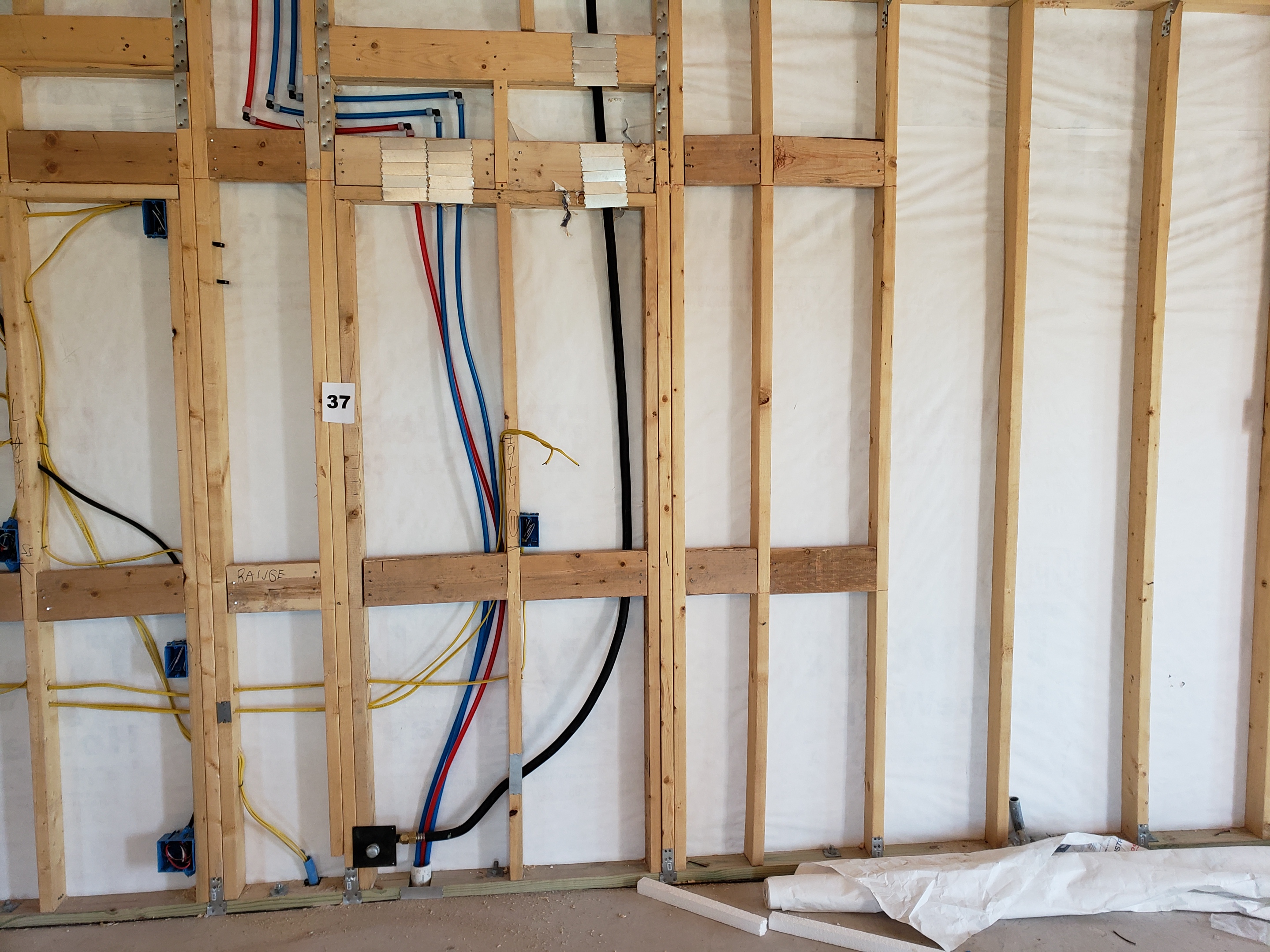

	P37 The western part of the Kitchen wall where the range and microwave vent will be

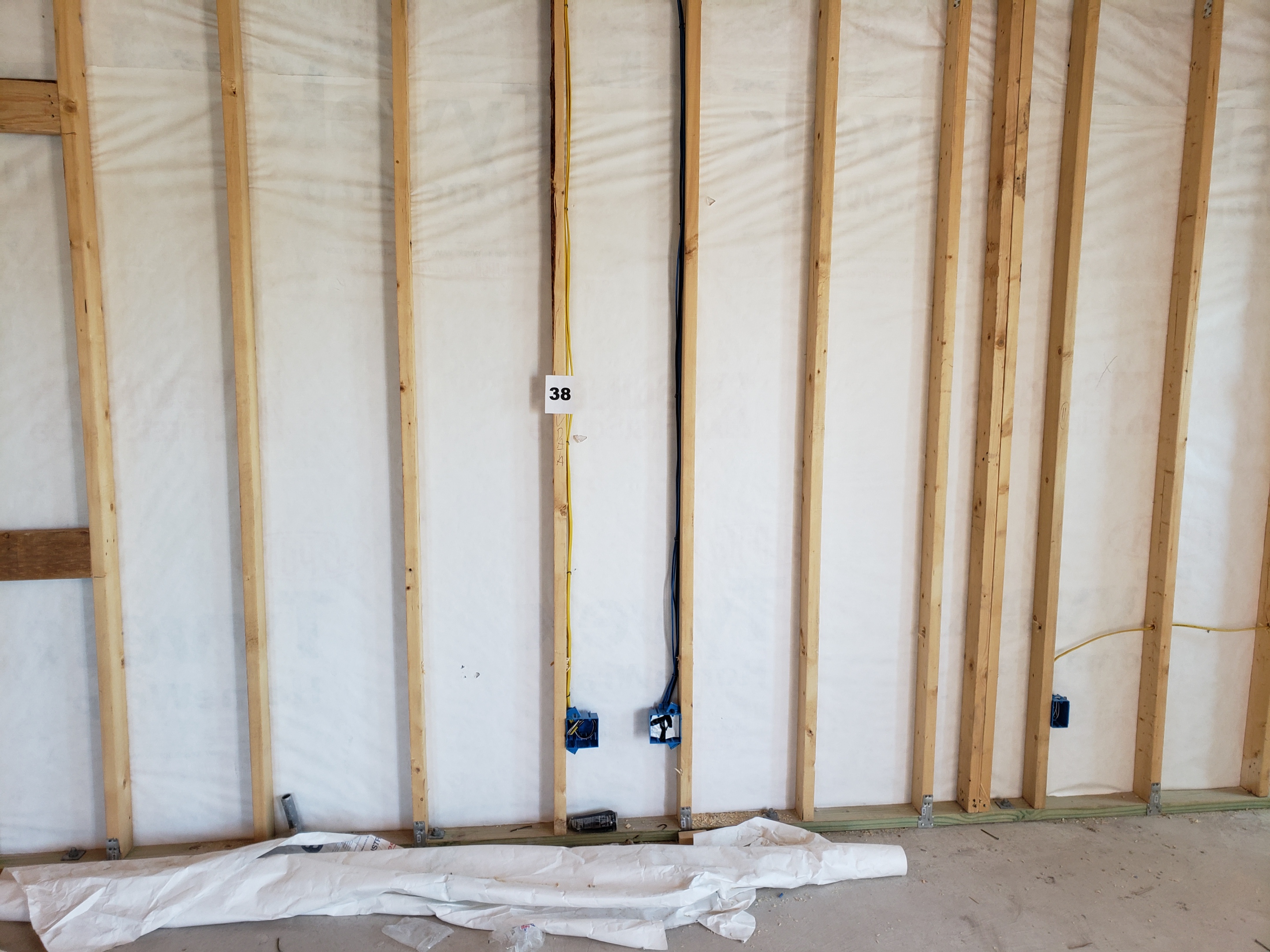

	P38 The western part of the Family Room wall where electric fireplace and audio-visual equipment be

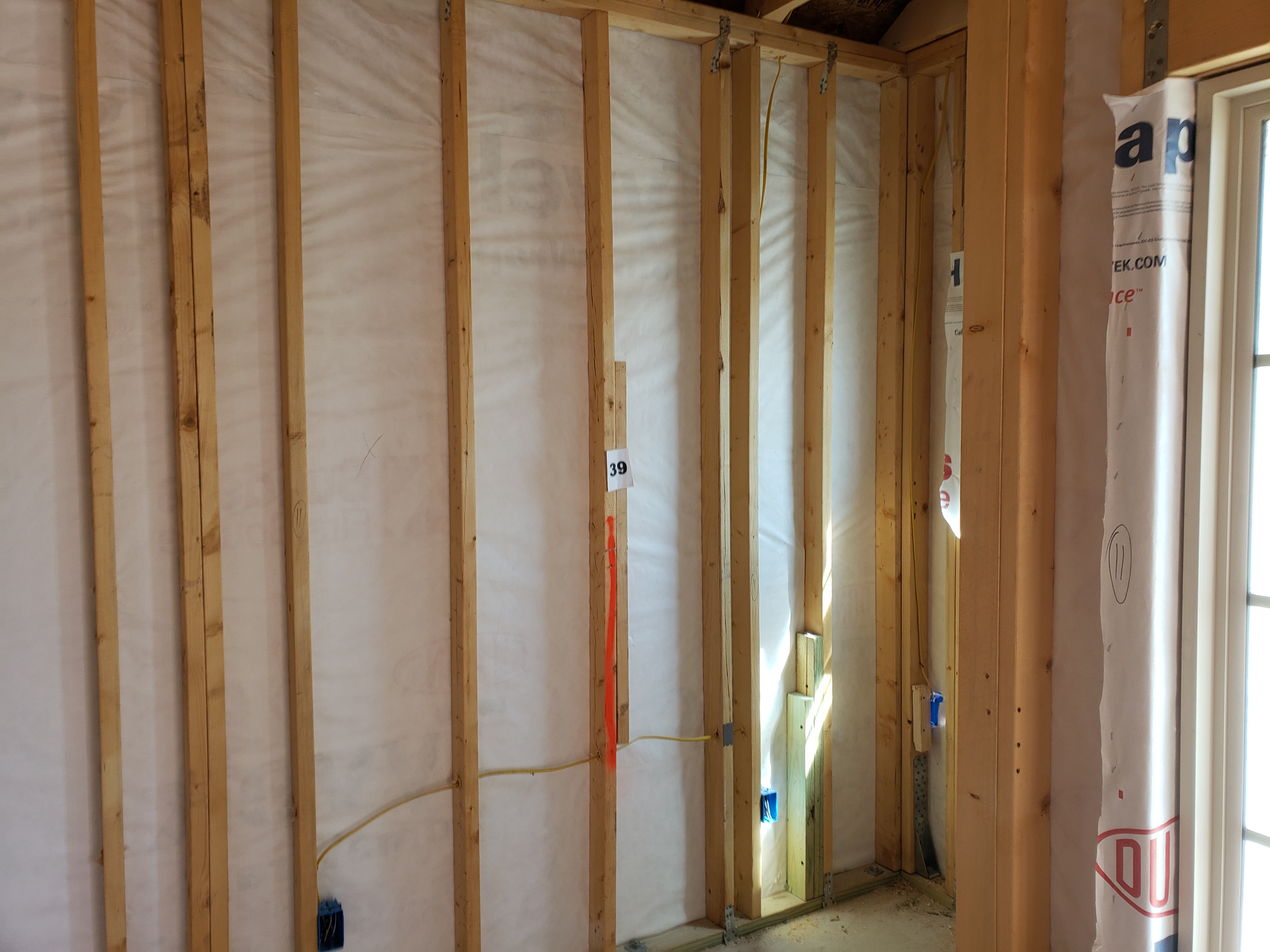

	P39 The west-northern corner of the Niche off of the Family Room

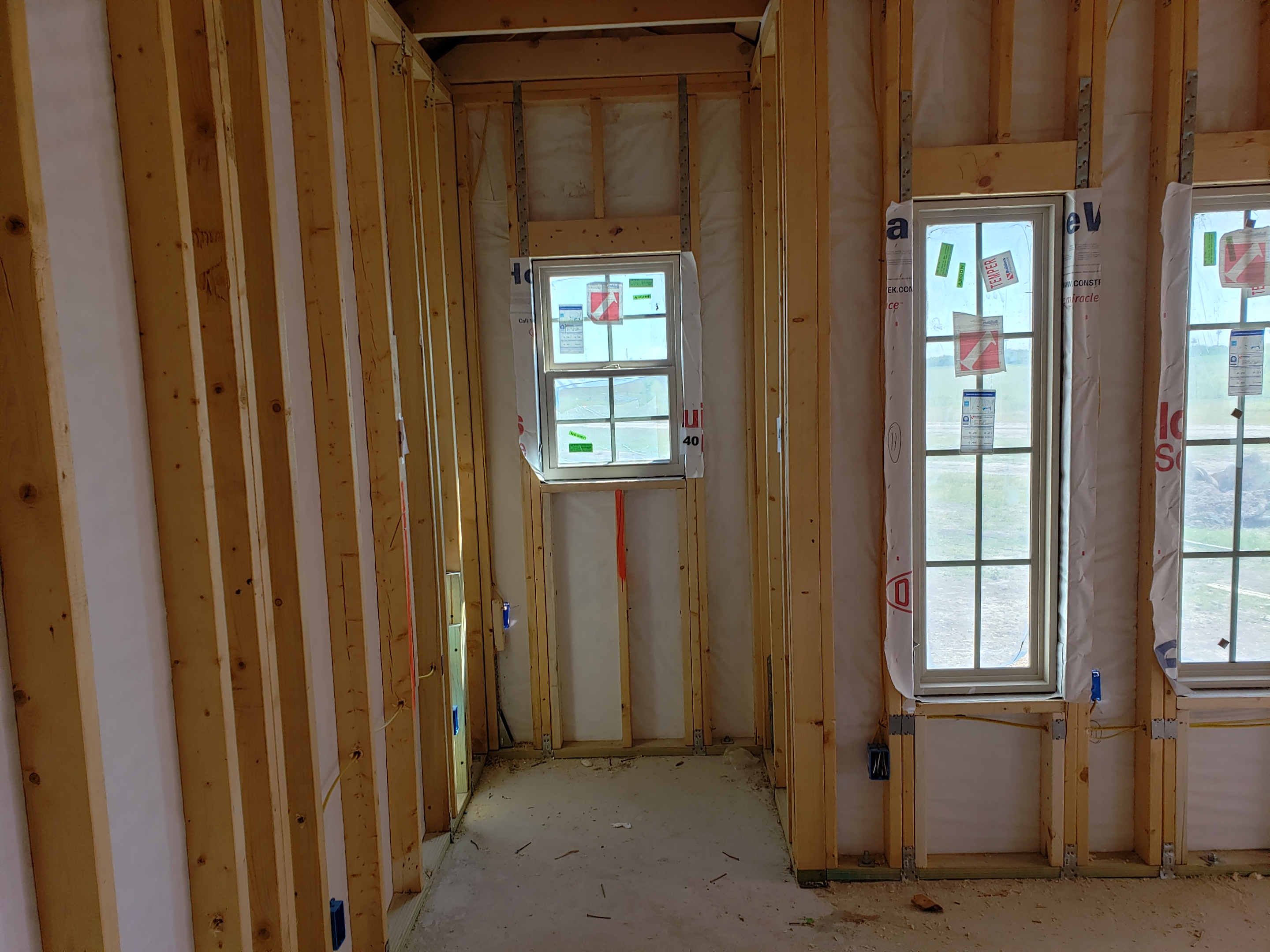

	P40 The northern wall of the Niche off of the Family Room

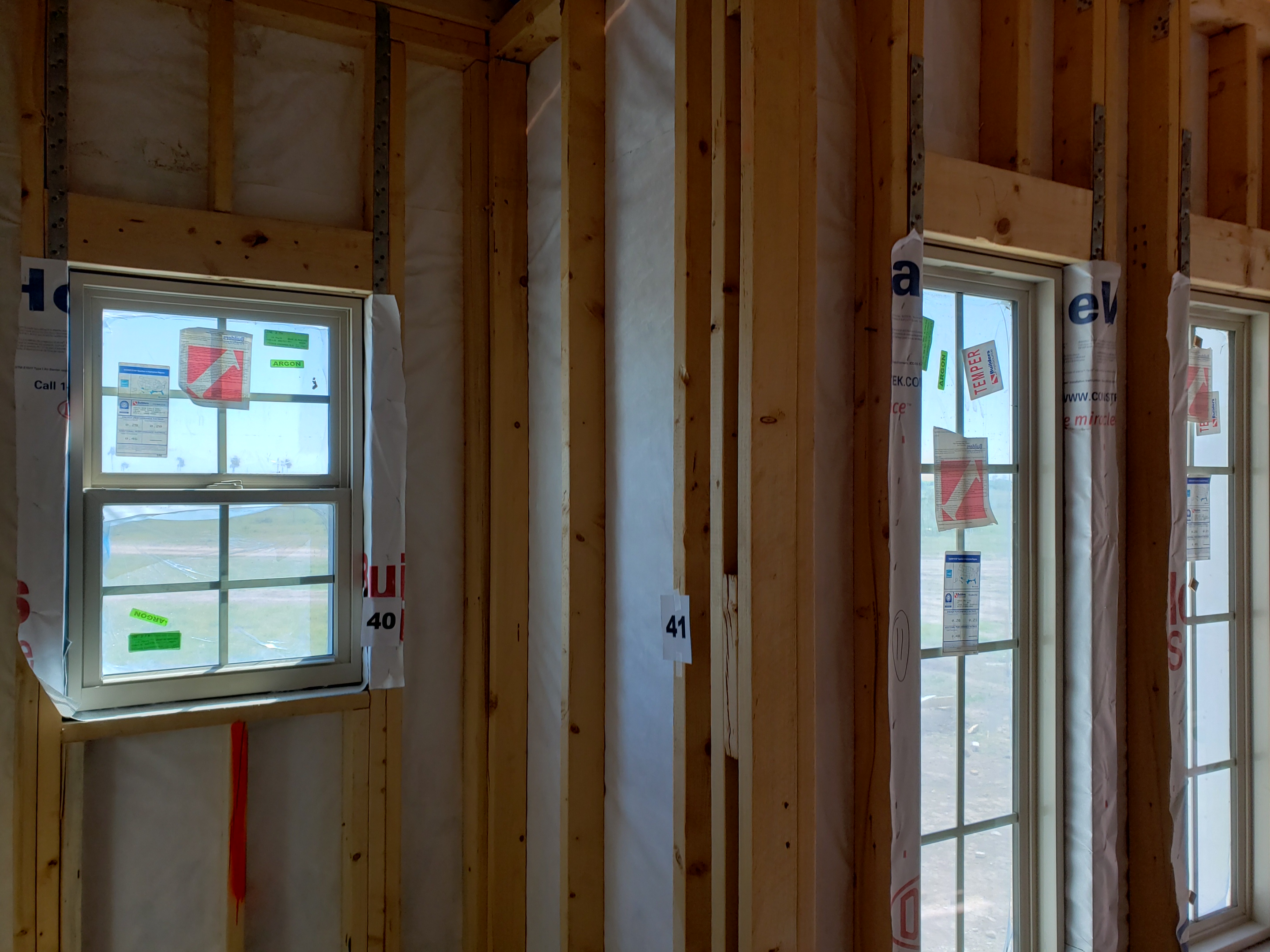

	P41 The eastern wall of the Niche off of the Family Room
	P42 The northern wall of the Family Room

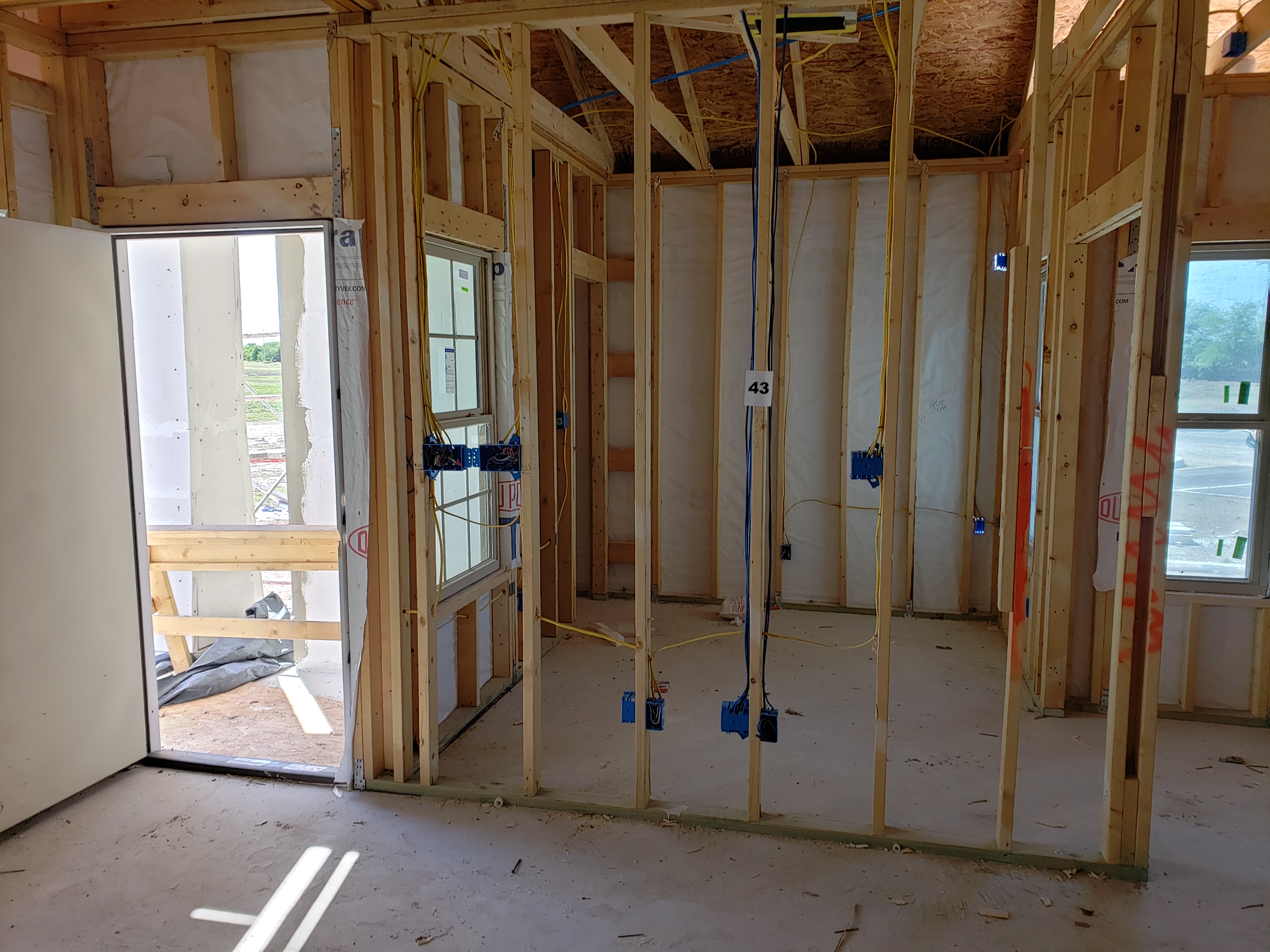

	P43 The eastern wall of the Family Room shared with the Studio

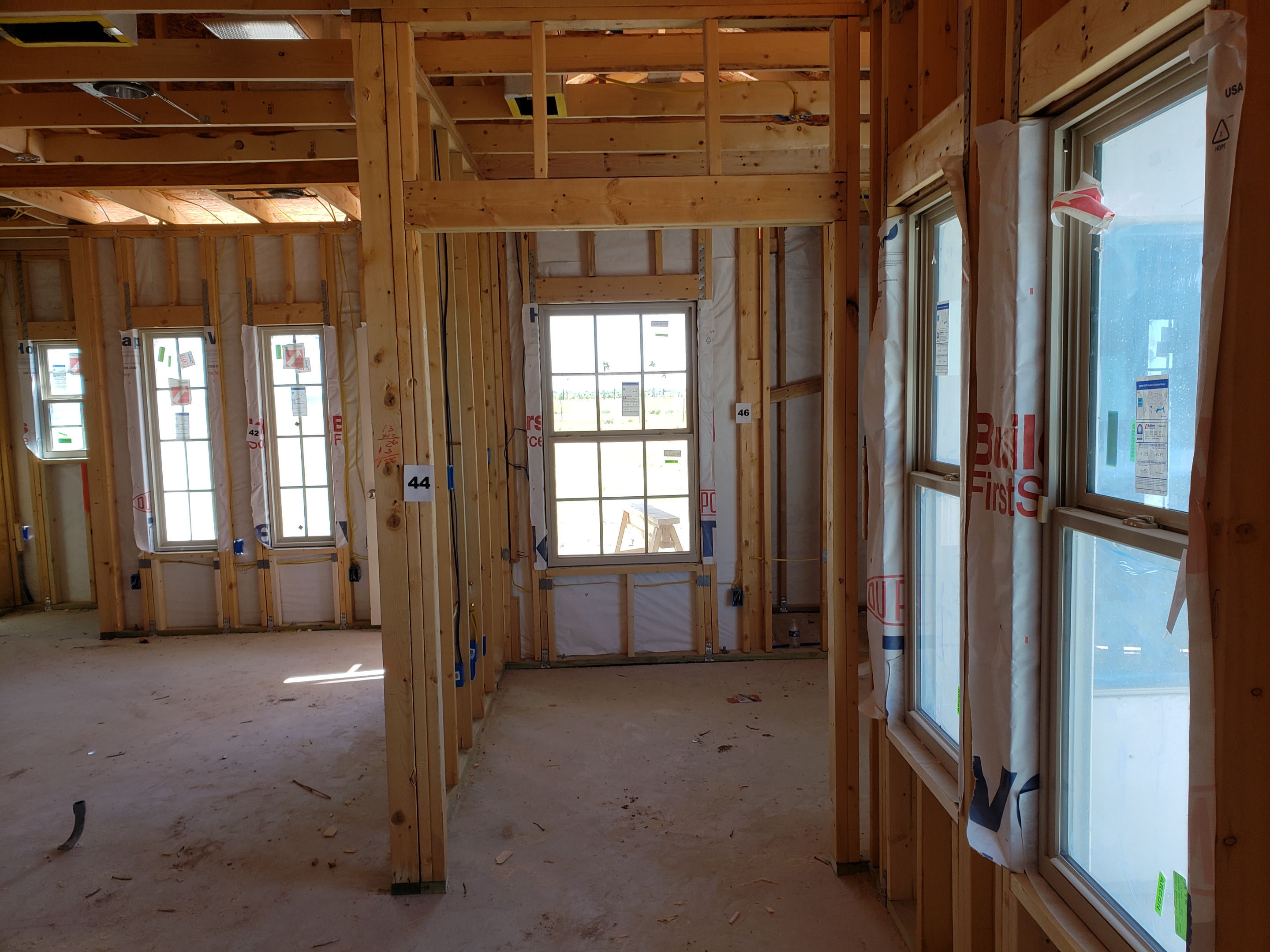

	P44 The entrance to the Studio

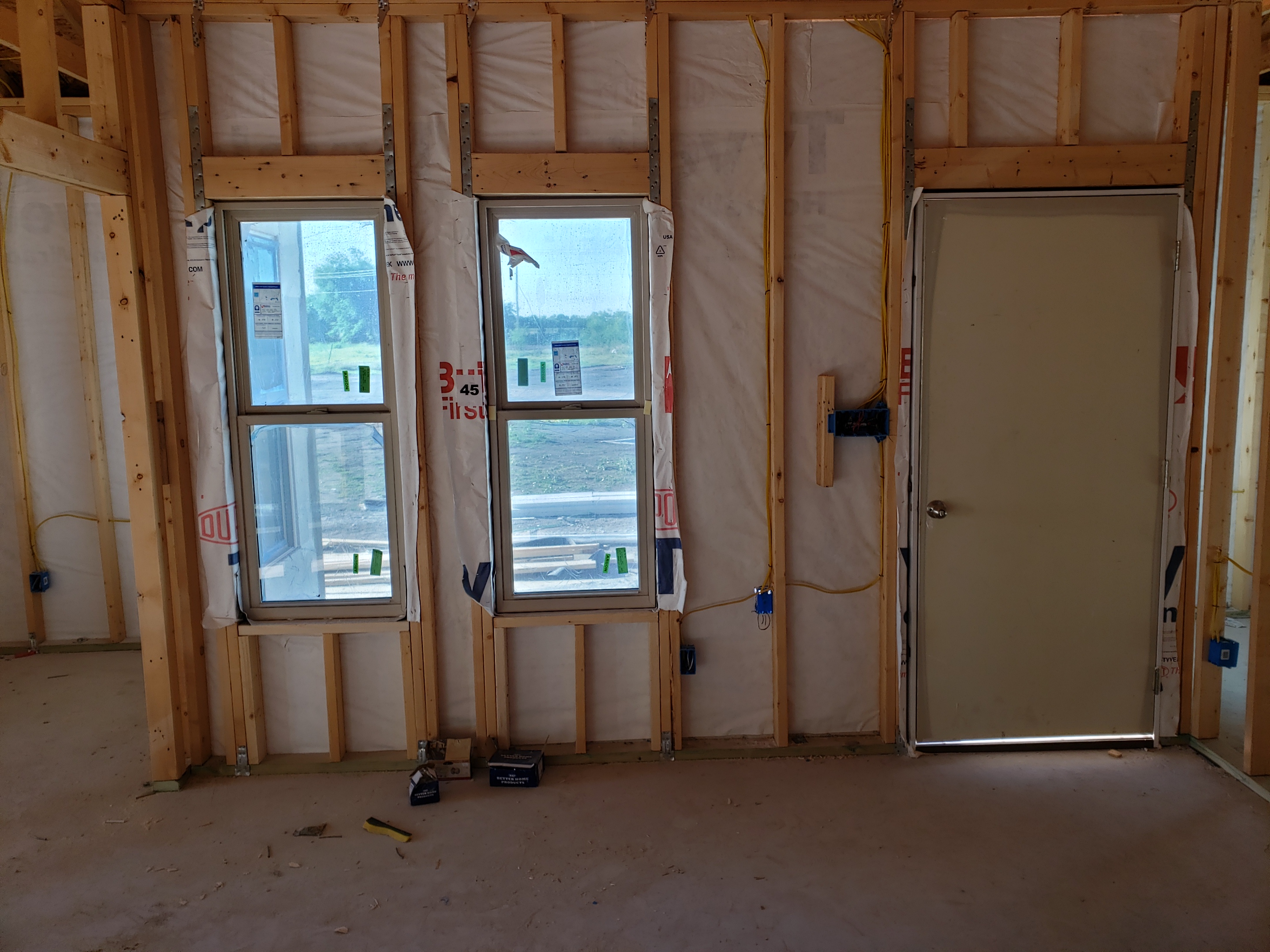

	P45 The Dining Room wall.

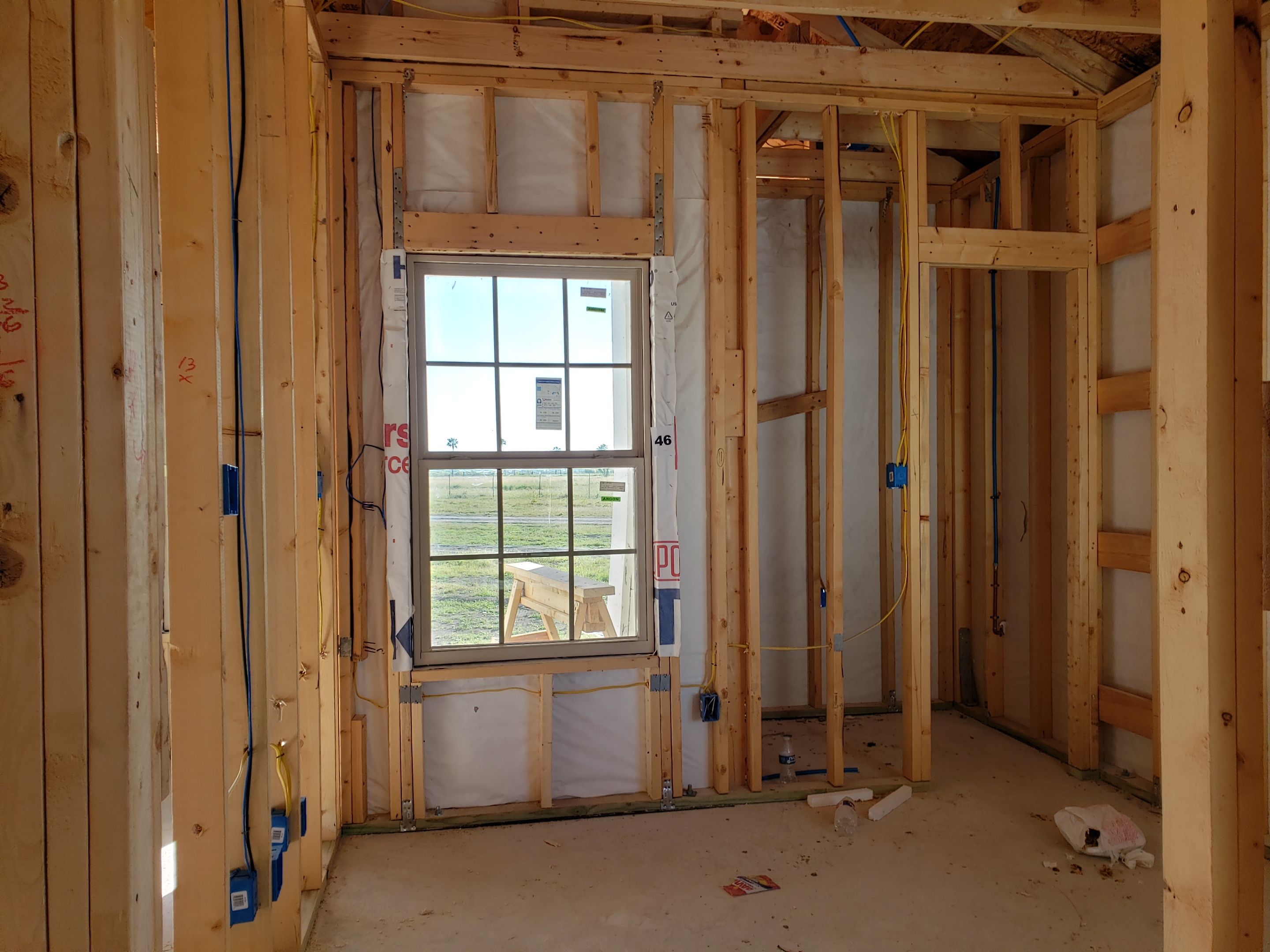

	P46 The northern wall of the Studio

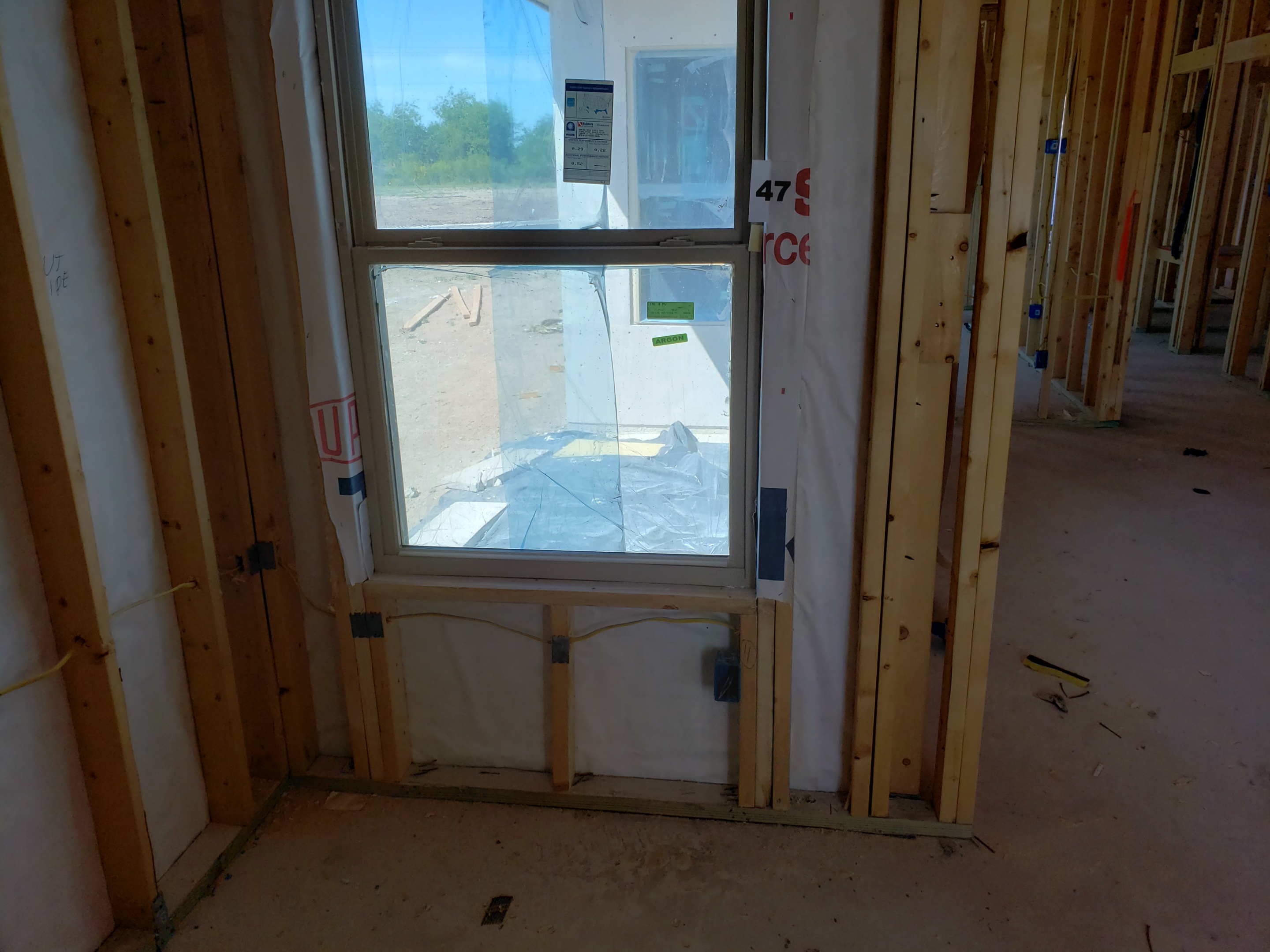

	P47 The southern wall of the Studio

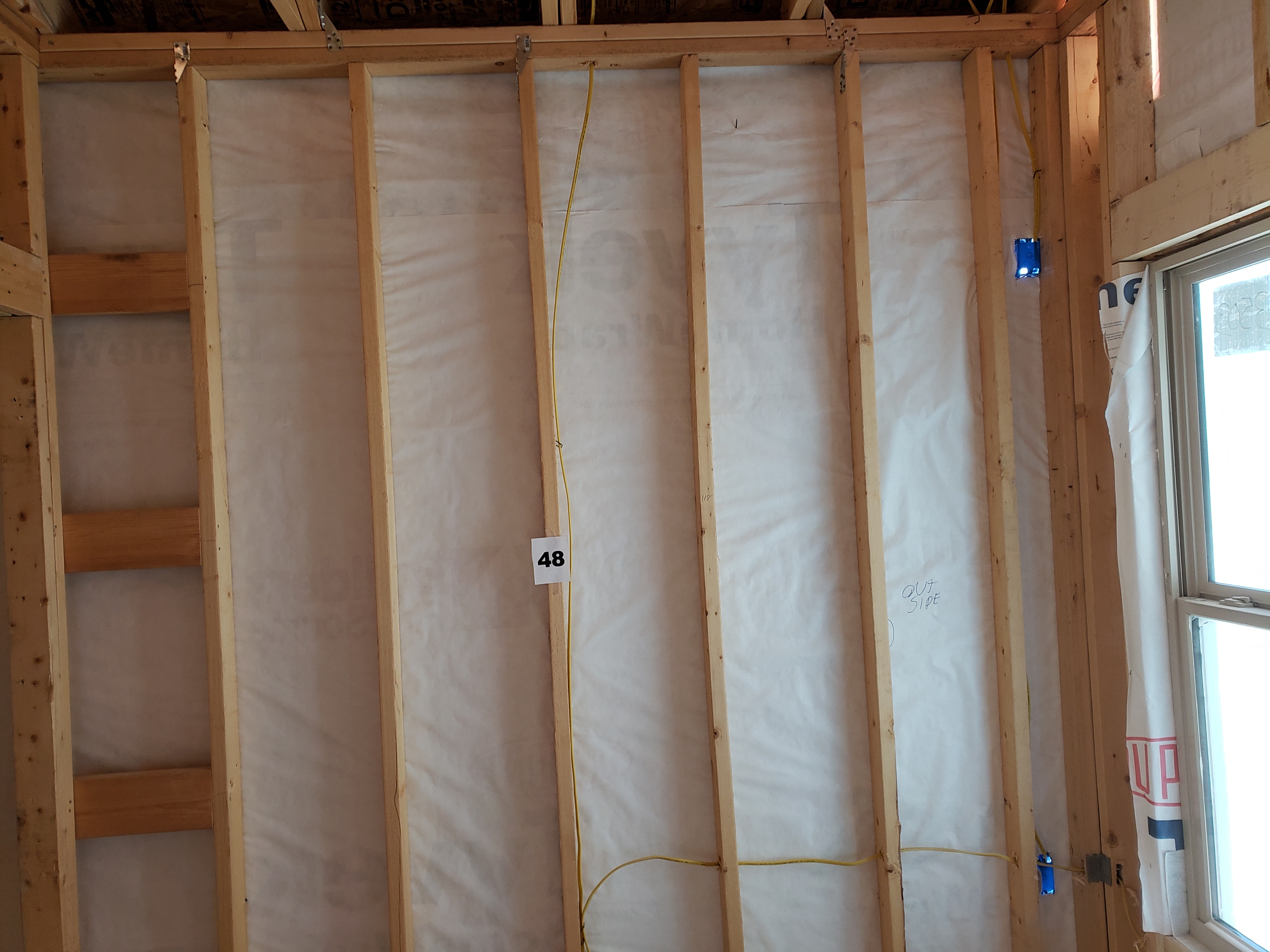

	P48 The east-southern wall of the Studio

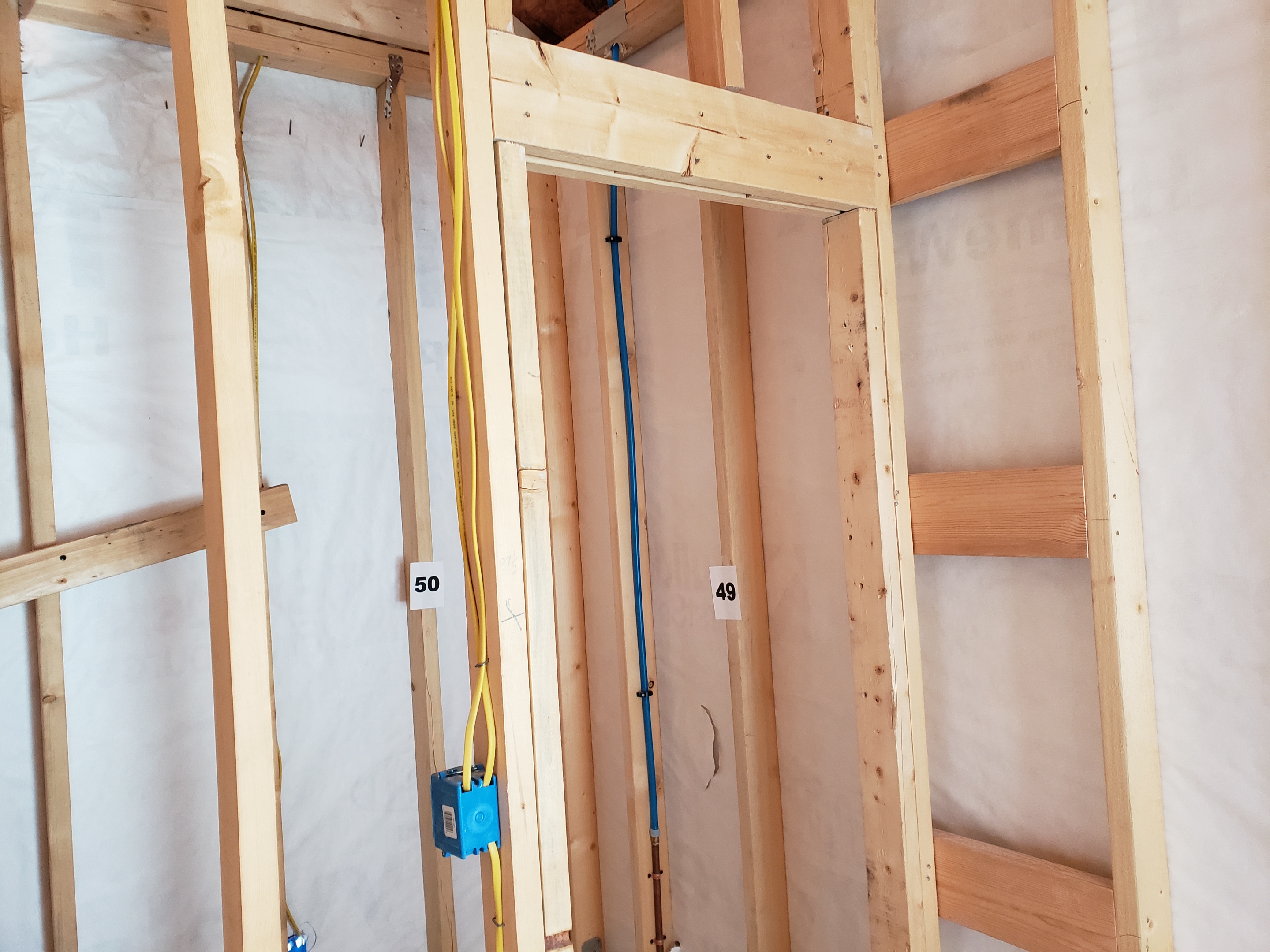

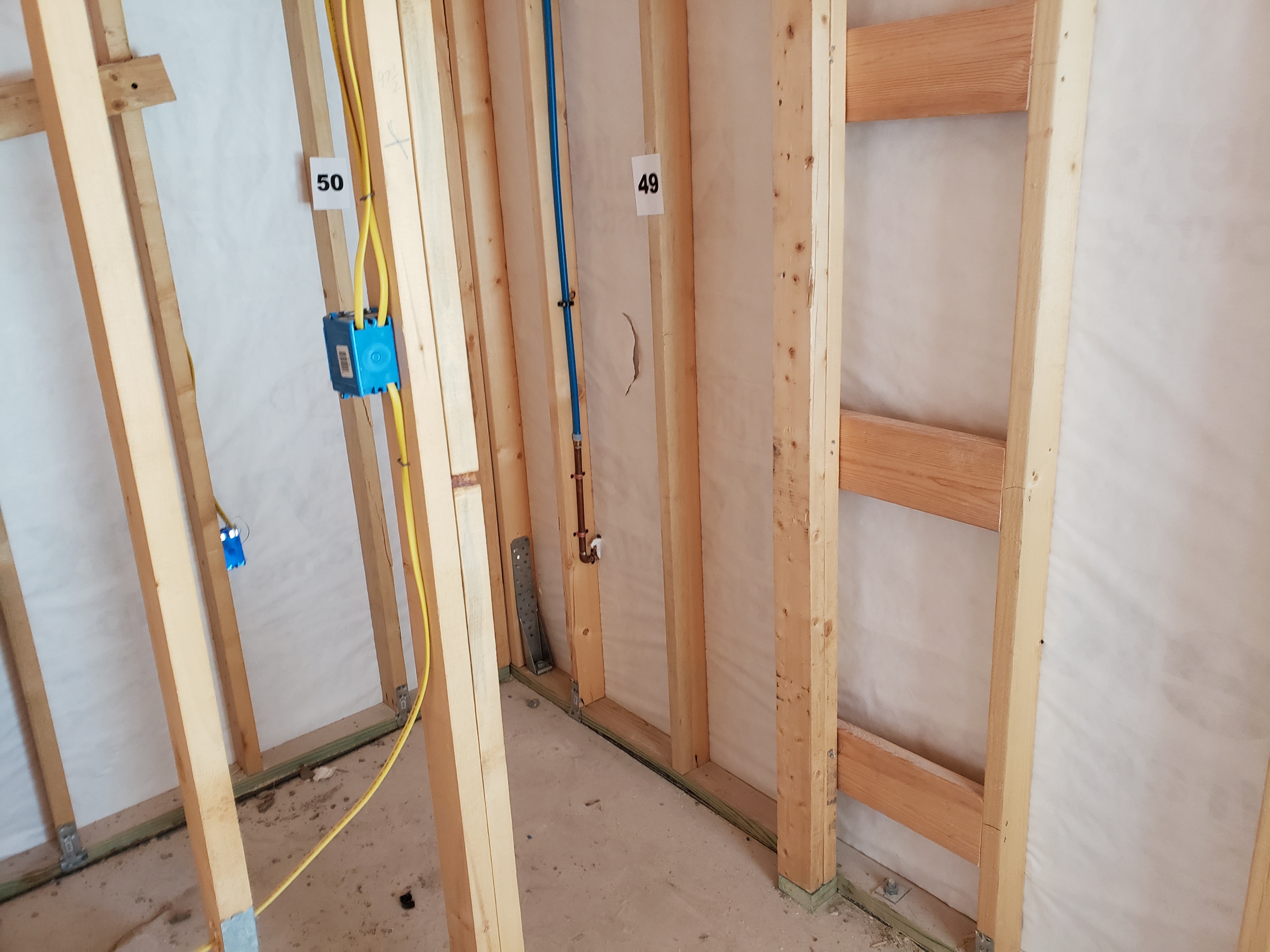

	P49 The eastern wall of the Studio Closet

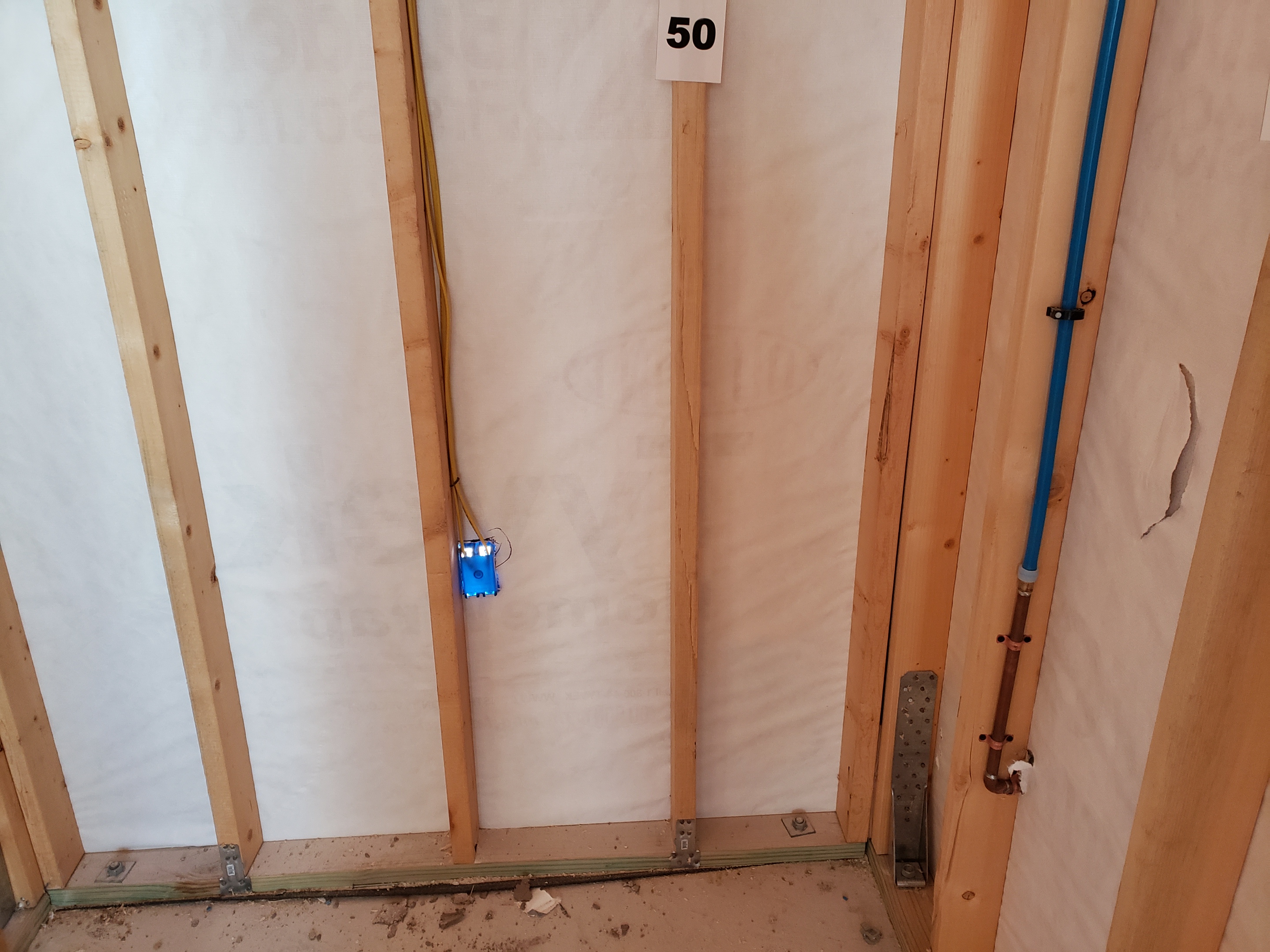

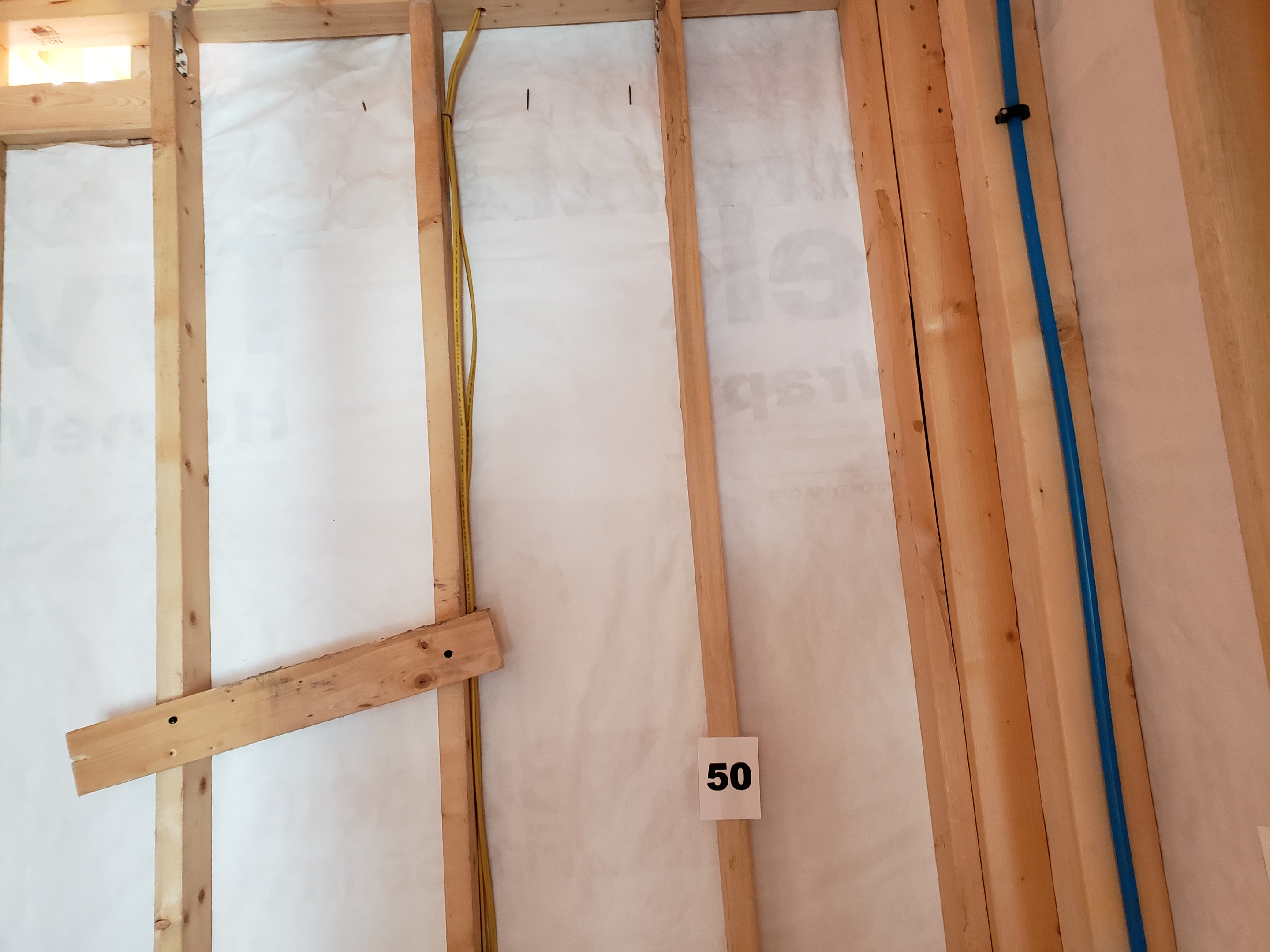

	P50 The northern wall of the Studio Closet

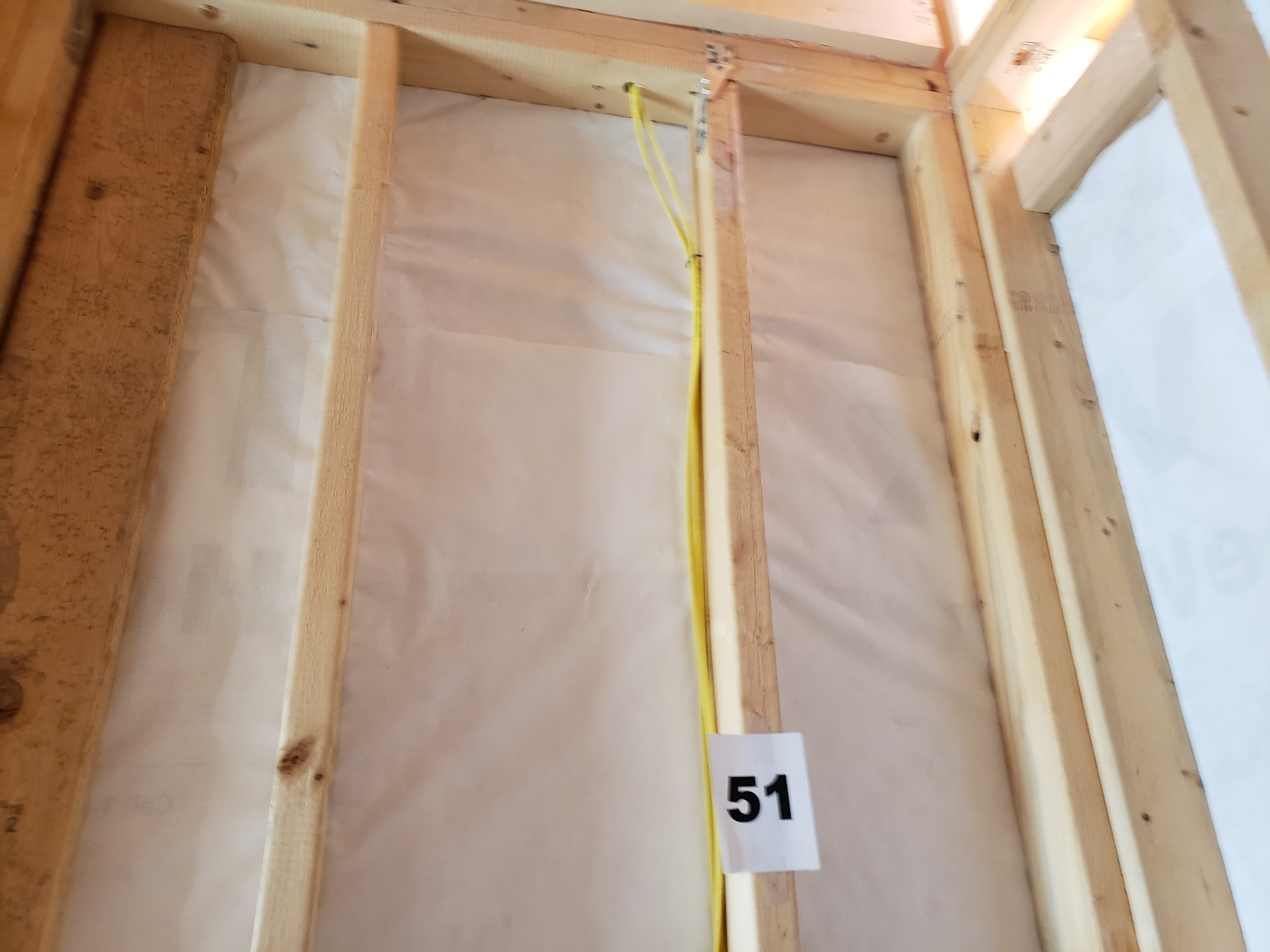

	P51 The western wall of the Studio Closet
