Last Changed 2/11/2007 |
||
|
Red Rover came with the extended Volvo sound system, but not the Volvo radio. The radio was okay but not
what we wanted. We have a Pioneer radio and CD-Changer in our motorhome, Training Wheels. We moved the CD-Changer to Red Rover and bought a new Pioneer Radio. |
||
 |

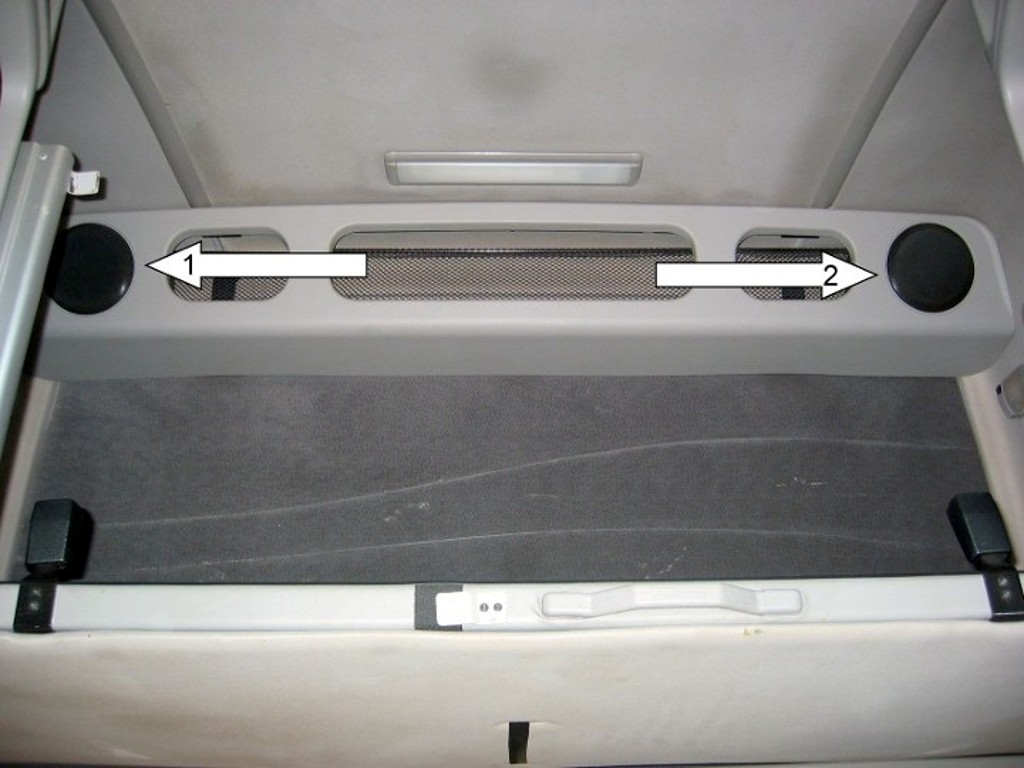

There are a total of 9 speakers in the Volvo enhanced sound system. Two in the upper berth. |
|
 |

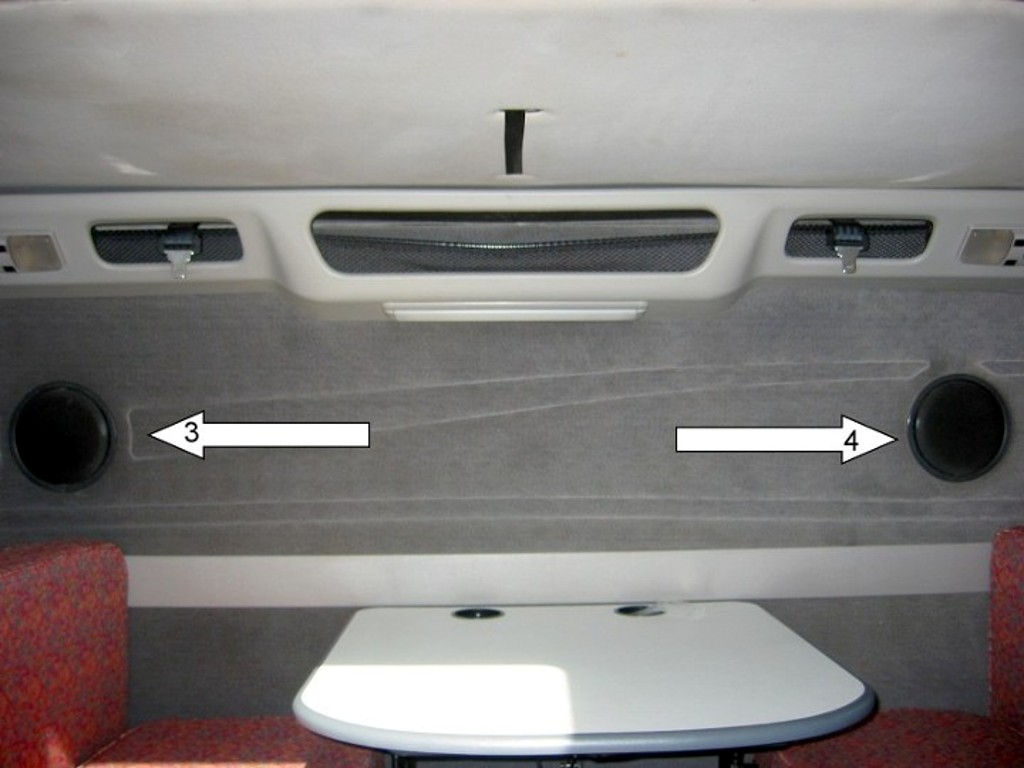

Two in the lower berth. The four speakers in the berths are treated as the "Rear" speakers. |
|
click on images to enlarge |
||
 |

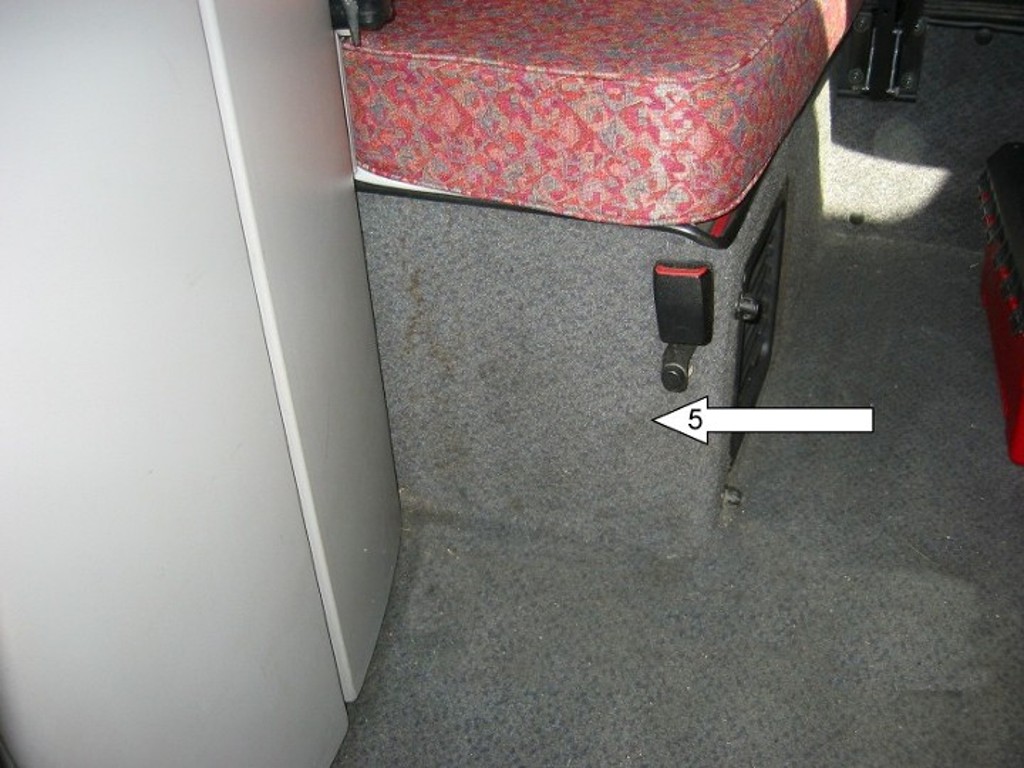

There is a double driver sub-woofer mounted under the seat in front of the berth heater. | |
 |

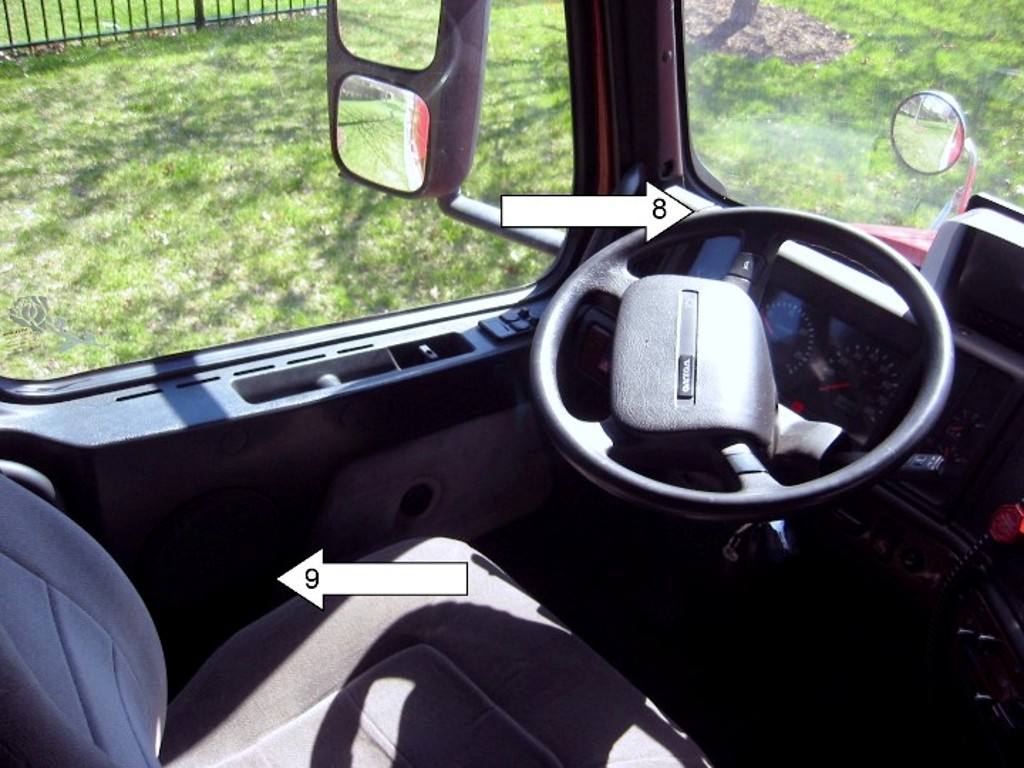

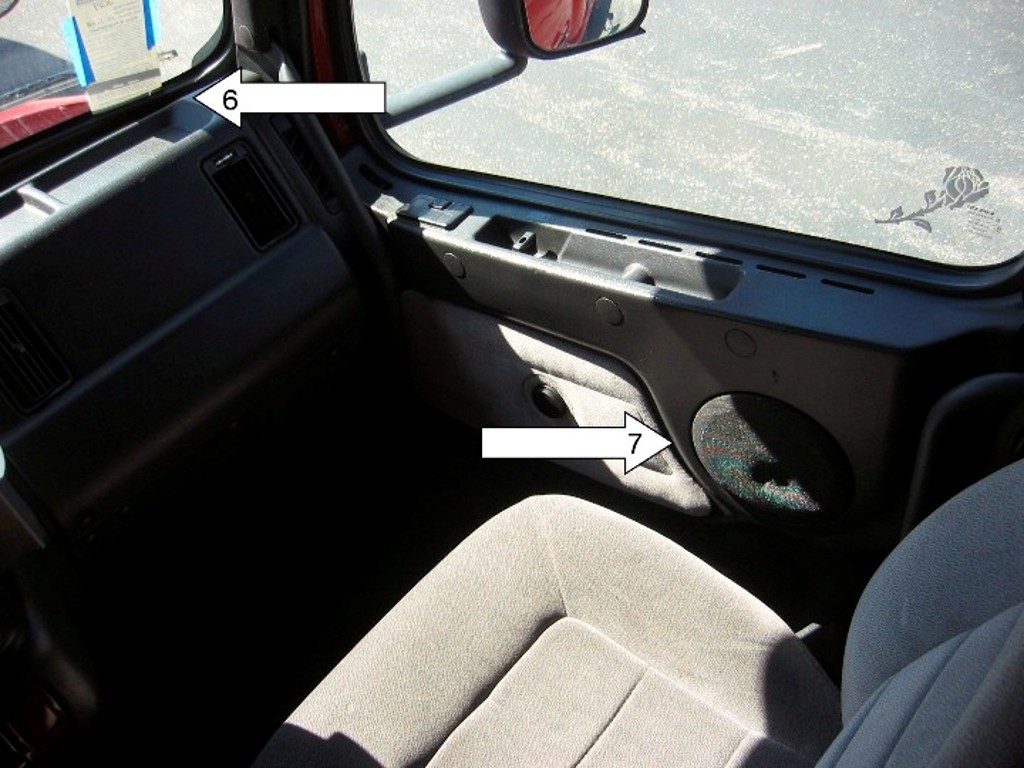

There is a speaker in each door and each end of the dash. | |
click on images to enlarge |
||
 |
The dash and door speakers are treated as the "Front" speakers. | |
 |
The Pioneer CD-Changer is mounted where the Volvo unit would normally go. | |
click on images to enlarge |
||
 |

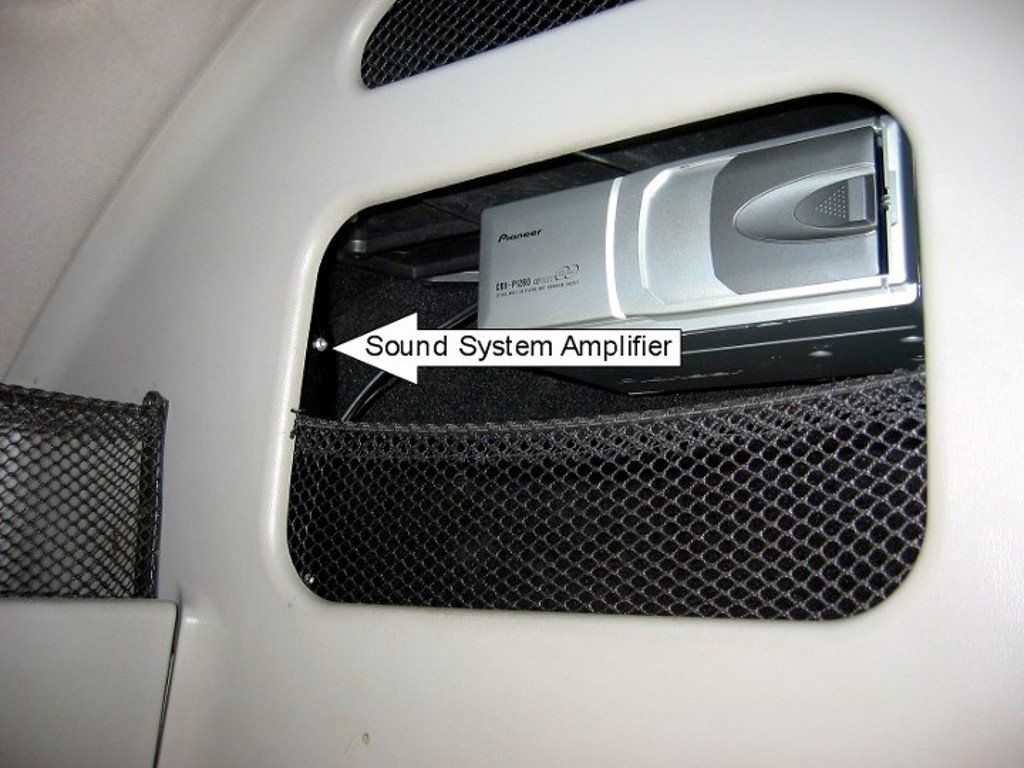

The speaker amplifier and sub-woofer driver is mounted in the compartment over the passenger seat. | |
 |

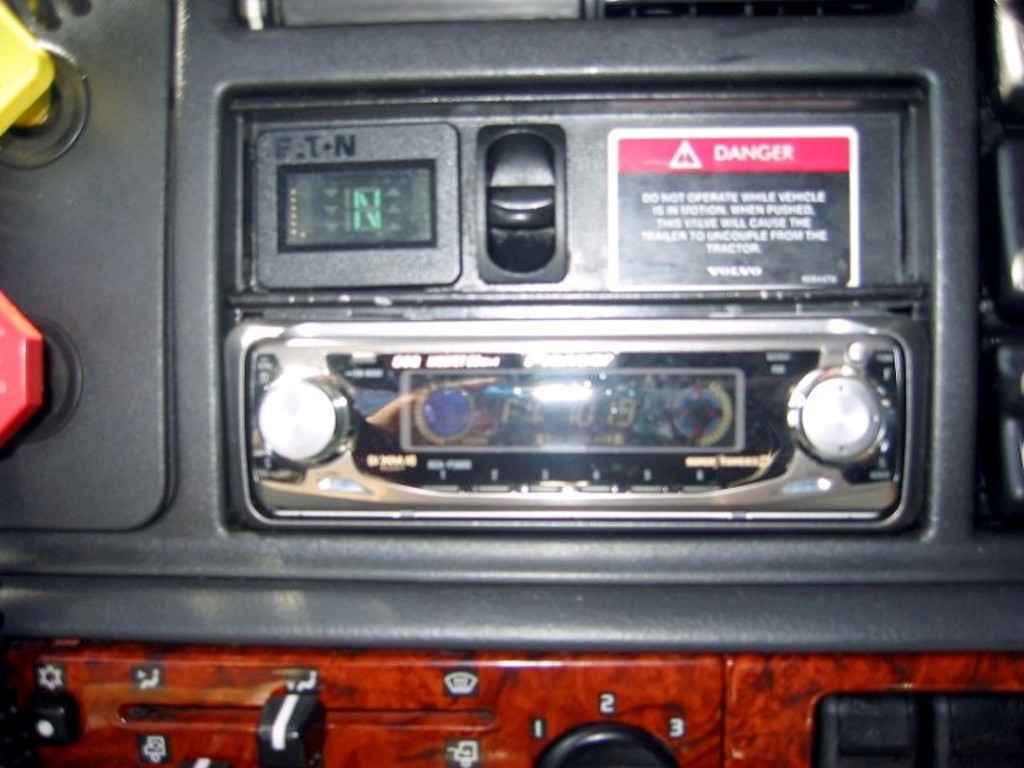

The Pioneer Radio. The bus used to connect the CD-Changer can also be used for a XM radio receiver. | |
click on images to enlarge |
||
